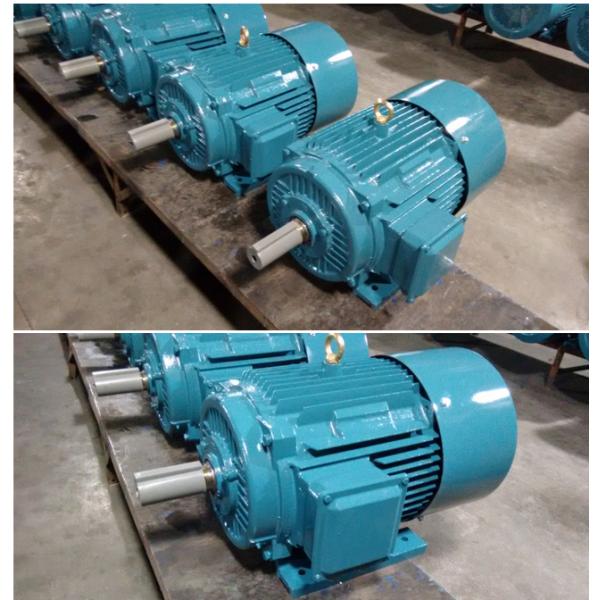

Ie2 Three-Phase Electrical Motor (TEFC, IP55)
Ie2 Three-Phase Electrical Motor (TEFC, IP55)
Specifications
Brand Name :
BM
Model Number :
YE2 series, 3/4~ 270HP
Certification :
CE
Place of Origin :
CHINA
MOQ :
10 PCS
Payment Terms :
L/C, T/T
Delivery Time :
30 DAYS
Packaging Details :
CARTONS
Description

  • Rated power output: 0.55kW~200kW at 50Hz.

  • Available in 2, 4, 6 pole motor (0.75kW and up) with efficiency grade 3. according to GB18613-2012 and efficiency class IE2 (50Hz) according to IEC 60034-30.

  • Standard mounting construction according to IEC 60034-7: IM B3, IM B5, IM B35 and etc.

  • All motors are designed to IP55 degree of protection (IEC 60034-5) .

  • Insulation system is designed for temperature class 155 (F). At rated output with line-fed operation, the motors can be used in temperature class 130 (B).

  • Self ventilated motors with radial-flow fans (cooling method IC 411 according to IEC 60034-6) as standard, forced air cool with external separately driven fans as option.

  • Degrees of motor protection IP55 (IEC 60034-5).

  • Altitude of working environment shall not exceed 1000m above sea-level (IEC 60034-1).

    Type Rated Output Voltage Frequency Speed Efficiency Power factor In Is Ts Nosie
    Kw HP V Hz r/min % CosΦ A In Tn Tn Lw dB(A)
    801-2 0.75 1 380 50 2825 75 0.83 1.8 6 2.2 2.3 67
    802-2 1.1 1.5 380 50 2825 76.2 0.84 2.6 7 2.2 2.3 67
    90S-2 1.5 2 380 50 2840 78.5 0.84 3.34 7 2.2 2.3 72
    90L-2 2.2 3 380 50 2840 81 0.85 4.69 7 2.2 2.3 72
    100L-2 3 4 380 50 2880 82.6 0.87 6.14 8 2.2 2.3 76
    112M-2 4 5.5 380 50 2890 84.2 0.88 7.83 8 2.2 2.3 77
    132S1-2 5.5 7.5 380 50 2900 85.7 0.88 10.7 8 2.2 2.3 80
    132S2-2 7.5 10 380 50 2900 87 0.88 14.2 8 2.2 2.3 80
    160M1-2 11 15 380 50 2930 88.4 0.89 20.9 8 2.2 2.3 86
    160M-2 15 20 380 50 2930 89.4 0.89 27.9 8 2.2 2.3 86
    160L-2 18.5 25 380 50 2930 90 0.9 33.9 8 2.2 2.3 86
    180M-2 22 30 380 50 2940 90.5 0.9 40.5 8 2 2.3 89
    200L1-2 30 40 380 50 2950 91.4 0.9 54.8 8 2 2.3 92
    200L2-2 37 50 380 50 2950 92 0.9 66.6 8 2 2.3 92
    225M-2 45 60 380 50 2970 92.5 0.9 81 8 2 2.3 92
    250M-2 55 75 380 50 2970 93 0.9 99.6 8 2 2.3 93
    280S-2 75 100 380 50 2970 93.6 0.9 133 8 2 2.3 94
    280M-2 90 120 380 50 2970 93.9 0.91 158 8 2 2.3 94
    315S-2 110 150 380 50 2980 94 0.91 195 7 1.8 2.2 96
    315M-2 132 180 380 50 2980 94.5 0.91 232 7 1.8 2.2 96
    315L1-2 160 220 380 50 2980 94.6 0.92 280 7 1.8 2.2 99
    315L2-2 200 270 380 50 2980 94.8 0.92 348 7 1.8 2.2 99
    801-4 0.55 0.8 380 50 1390 71 0.75 1.6 5 2.4 2.3 58
    802-4 0.75 1 380 50 1390 73 0.76 2 6 2.3 2.3 58
    90S-4 1.1 1.5 380 50 1400 76.2 0.77 2.8 6 2.3 2.3 61
    90L-4 1.5 2 380 50 1400 78.5 0.79 3.65 6 2.3 2.3 61
    100L1-4 2.2 3 380 50 1420 81 0.81 5.05 7 2.3 2.3 64
    100L2-4 3 4 380 50 1420 82.6 0.82 6.64 7 2.3 2.3 64
    112M-4 4 5.5 380 50 1440 84.2 0.82 8.62 7 2.3 2.3 65
    132S-4 5.5 7.5 380 50 1440 85.7 0.83 11.5 7 2.3 2.3 71
    132M-4 7.5 10 380 50 1440 87 0.84 15.3 7 2.3 2.3 71
    160M-4 11 15 380 50 1460 88.4 0.84 22.2 7 2.2 2.3 75
    160L-4 15 20 380 50 1460 89.4 0.85 29.8 8 2.2 2.3 75
    180M-4 18.5 25 380 50 1470 90 0.86 36.1 8 2.2 2.3 76
    180L-4 22 30 380 50 1470 90.5 0.86 42.6 8 2.2 2.3 76
    200L-4 30 40 380 50 1480 91.4 0.86 57.2 7 2.2 2.3 79
    225S-4 37 50 380 50 1480 92 0.87 69.6 7 2.2 2.3 81
    225M-4 45 60 380 50 1480 92.5 0.87 84 7 2.2 2.3 81
    250M-4 55 75 380 50 1480 93 0.87 103 7 2.2 2.3 83
    280S-4 75 100 380 50 1480 93.6 0.87 138 7 2.2 2.3 86
    280M-4 90 120 380 50 1485 93.9 0.87 166 7 2.2 2.3 86
    315S-4 110 150 380 50 1485 94.5 0.88 200 7 2.1 2.2 93
    315M-4 132 180 380 50 1485 94.8 0.88 239 7 2.1 2.2 93
    315L1-4 160 220 380 50 1485 94.9 0.89 288 7 2.1 2.2 97
    315L2-4 200 270 380 50 1485 94.9 0.89 359 7 2.1 2.2 97
    801-6 0.37 0.5 380 50 900 62 0.7 1.3 5 1.9 2 54
    802-6 0.55 0.8 380 50 900 65 0.72 1.8 5 1.9 2.1 54
    90S-6 0.75 1 380 50 910 69 0.72 2.3 6 2 2.1 57
    90L-6 1.1 1.5 380 50 910 72 0.73 3.2 6 2 2.1 57
    100L-6 1.5 2 380 50 940 76 0.75 3.9 6 2 2.1 61
    112M-6 2.2 3 380 50 940 79 0.76 5.6 7 2 2.1 65
    132S-6 3 4 380 50 960 81 0.76 7.4 7 2.1 2.1 69
    132M1-6 4 5.5 380 50 960 82 0.76 9.9 7 2.1 2.1 69
    132M2-6 5.5 7.5 380 50 960 84 0.77 12.9 7 2.1 2.1 69
    160M-6 7.5 10 380 50 970 86 0.77 16.9 7 2 2.1 73
    160L-6 11 15 380 50 970 87.5 0.78 24 7 2 2.1 73
    180L-6 15 20 380 50 970 89 0.81 32 7 2 2.1 73
    200L1-6 18 25 380 50 970 90 0.81 39 7 2.1 2.1 76
    200L2-6 22 30 380 50 970 90 0.83 45 7 2.1 2.1 76
    225M-6 30 40 380 50 980 91.5 0.84 59 7 2 2.1 76
    250M-6 37 50 380 50 980 92 0.86 71 7 2.1 2.1 78
    280S-6 45 60 380 50 980 92.5 0.86 86 7 2.1 2 80
    280M-6 55 75 380 50 980 92.8 0.86 105 7 2.1 2 80
    315S-6 75 100 380 50 980 93.5 0.86 142 7 2 2 85
    315M-6 90 120 380 50 985 93.8 0.86 170 7 2 2 85
    315L1-6 110 150 380 50 985 94 0.86 207 7 2 2 85
    315L2-6 132 180 380 50 985 94.2 0.87 245 7 2 2 85
    801-8 0.18 0.3 380 50 690 51 0.61 0.9 3 1.8 1.9 52
    802-8 0.25 0.3 380 50 690 54 0.61 1.2 3 1.8 1.9 52
    90S-8 0.37 0.5 380 50 690 62 0.61 1.5 4 1.8 1.9 56
    90L-8 0.55 0.8 380 50 690 63 0.61 2.2 4 1.8 2 56
    100L1-8 0.75 1 380 50 700 71 0.67 2.4 4 1.8 2 59
    100L2-8 1.1 1.5 380 50 700 73 0.69 3.3 5 1.8 2 59
    112M-8 1.5 2 380 50 700 75 0.69 4.4 5 1.8 2 61
    132S-8 2.2 3 380 50 710 78 0.71 6 6 1.8 2 64
    132M-8 3 4 380 50 710 79 0.73 7.9 6 1.8 2 64
    160M1-8 4 5.5 380 50 720 81 0.73 10.3 6 2 2 68
    160M2-8 5.5 7.5 380 50 720 83 0.74 13.6 6 2 2 68
    160L-8 7.5 10 380 50 720 85.5 0.75 17.8 6 2 2 68
    180L-8 11 15 380 50 720 87.5 0.76 24.9 7 2 2 70
    200L-8 15 20 380 50 730 88 0.76 34 7 2 2 73
    225S-8 18.5 25 380 50 730 90 0.76 41 7 1.9 2 73
    225M-8 22 30 380 50 730 90.5 0.78 47 7 1.9 2 73
    250M-8 30 40 380 50 730 91 0.79 63 7 1.9 2 75
    280S-8 37 50 380 50 730 91.5 0.79 78 7 1.9 2 76
    280M-8 45 60 380 50 740 92 0.79 94 7 1.9 2 76
    315S-8 55 75 380 50 740 92.8 0.81 111 7 1.8 2 82
    315M-8 75 100 380 50 740 93 0.81 151 7 1.8 2 82
    315L1-8 90 120 380 50 740 93.8 0.82 178 7 1.8 2 82
    315L2-8 110 150 380 50 740 94 0.82 217 6 1.8 2 82
