Inner Flow Mesh Plate Grille Decontamination Filter Sludge Dehydrator Equipment For Wastewater Treatment

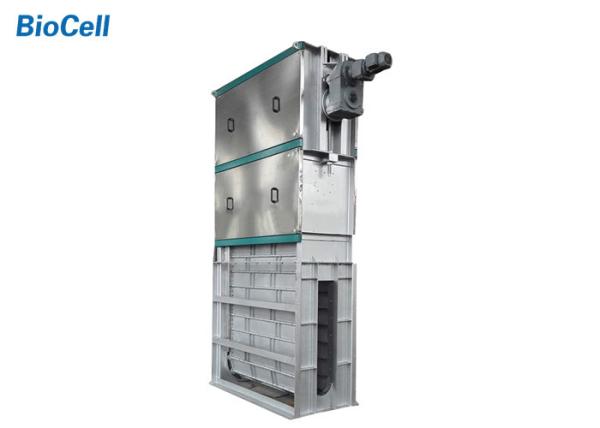

The Structure Principle Of The Inner Flow Mesh Plate Grille

The inflow mesh grille is composed of six parts: frame, drive system, mesh system, backwash system, slag removal system and electric control system.

The geared motor drives the sprocket to rotate, and the sprocket drives the mesh plate to rotate continuously; the sewage enters the grille from the water inlet and is filtered by the mesh plate. After filtering, the water flows to the outside of the mesh plate, and the dirt is trapped on the inner surface of the same plate. Continuously rotate the belt to the top; the backwash system washes the outside of the washing plate, and the dirt is washed into the slag collection tank under the action of the washing water, and flows out of the sewage outlet together with the washing water.

Parameters

Advantages of Inner Inlet Mesh Grille

1. High capture rate: The unique water inlet method ensures the capture of all kinds of fine slag.

2. Large flow rate: The single-channel grid plate design can greatly improve the flow rate and reduce head loss.

3. Space saving: vertical installation effectively saves space.

4. Easy maintenance: the plug-in installation of the grid plate is easy to disassemble and replace.

5. The whole machine is installed without changing the original civil structure, which is suitable for the update of old equipment.

6. It will not bring the grid slag to the grid, and the decontamination effect is good.

Scope Of Application

This series of products is a very reliable decontamination filtration mechanical equipment with stable operation effect and excellent performance in municipal sewage treatment and water supply treatment, various industrial sewage treatment, and other applications in the field of solid-liquid separation.

This series of products can continuously and automatically remove the solid suspended solids in the filtered water body during operation, which can not only remove the wooden wedges, branches, plastic products and other floating objects in the water body, but also effectively remove the hair and fibers in the filtered water body. It is an ideal high-efficiency pretreatment equipment for water supply and drainage systems. It has been widely used in the fields of sewage treatment, reclaimed water treatment, industrial wastewater treatment, water intake of water supply plants, and industrial water intake of power plants.

Parameters

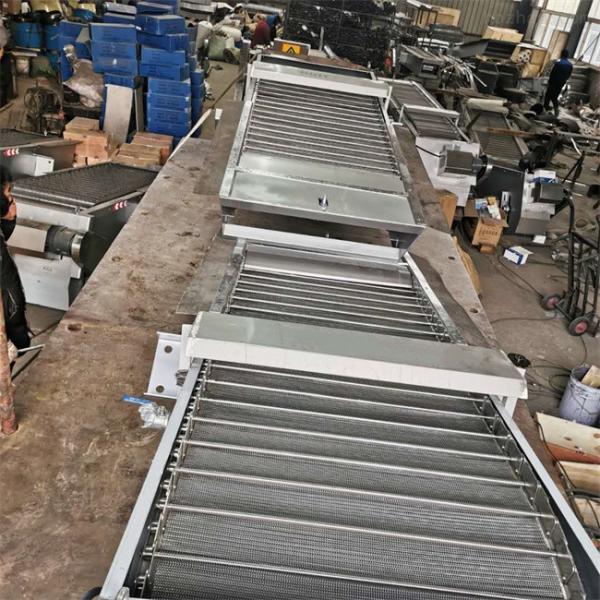

Factory Site

Package&Delivery

Compay Profile

Since 2017, Biocell has gradually developed from a small mill that produces mbbr bio meida and auxiliary materials including mbbr coarse bubble diffuser and media retention screen to a large-scale innovative factory, which has independent R&D and production capacity for mbbr integrated wastewater treatment plant. The factory covers an area of 10,000 square meters. , The construction area is up to 25,000 square meters, and there are more than 100 employees at present.

Wuxi BioCell Environmental Technology CO., Ltd. is a professional moving bed biofilm reaction system supplier that is mainly engaged in the R&D of MBBR technology equipment, production, and affiliated sales and services.

The main products include Mbbr integrated sewage treatment plant; MBBR suspended bio filter media; Mbbr coarse bubble diffuser and Mbbr media retention screen/seive.
