1 2 3 5 Ton Biomass Fired Steam Boiler Diesel Fuel Full Butt Welding For Plywood Plant
1 2 3 5 Ton Biomass Fired Steam Boiler Diesel Fuel Full Butt Welding For Plywood Plant
1 2 3 5 Ton Biomass Fired Steam Boiler Diesel Fuel Full Butt Welding For Plywood Plant
1 2 3 5 Ton Biomass Fired Steam Boiler Diesel Fuel Full Butt Welding For Plywood Plant
Specifications
Brand Name :
Yuji
Model Number :
Biomass/Gas&Oil Fired Steam Boiler
Certification :
ISO CE
Place of Origin :
China (Mainland)
MOQ :
1 set
Price :
Negotiable
Supply Ability :
5 sets a month
Delivery Time :
15 days
Packaging Details :
wood packet
Product Name :
WNS Series WNS2 1.25MPa Best Service Biomass oil Fired Steam Boiler
Steam Capacity :
2t
Working Pressure :
1.25MPa
Biomass Fired Efficiency :
88%
Gas Fired Efficiency :
92%
Style :
Historcal
Condition :
new
Description

Product Discription

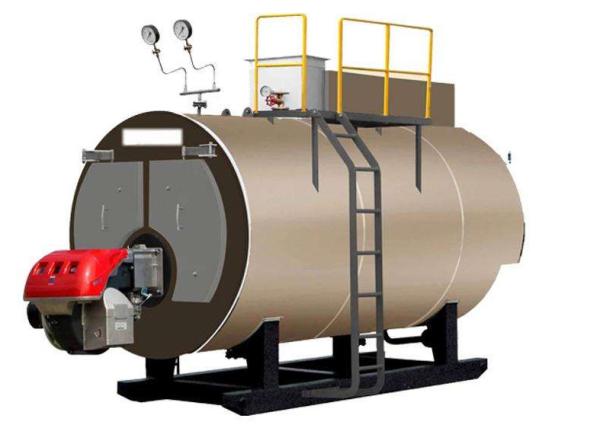

WNS Series Horizontal Biomass Gas Fired Steam Boiler

Horizontal WNS series biomass steam boiler is a fast -charging boiler, combustion plant, three -way boiler. It assumes a distorted back structure. High -temperature steam gas washes off the two - and three -way fire pipes and then discharges from the rear smoke into the atmosphere. Boxes and chimneys. The boiler is equipped with a movable front and rear smoke box that is suitable for maintenance.

Product Features

1. Convenient ash cleaning:

Many ash cleaning holes can be set up on the boiler, which can remove ash in time and effectively, avoid the trouble of operation and decrease of thermal efficiency caused by boiler ash accumulation, and ensure the stability of boiler load.

2. High safety:

The water supply is controlled by microcomputer, and the water is fed automatically. Equipped with water shortage, overpressure protection and other devices, safe and reliable.

3. Longevity and durability:

The professional excellent design of the boiler, the advanced production equipment and the strict quality inspection, is the guarantee of the quality of every new boiler boiler, and the service life of the normal boiler body is over 20 years.

4. Environmental protection and low noise:

The boiler's original smoke emission is low, and the boiler tail is equipped with high-efficiency dust remover and low noise fan, which makes the flue gas discharge meet the national environmental protection requirements.

5. Manufacturing specification:

Every part of boiler is manufactured in accordance with the national standard and international standard (ISO). Every production step is carried out in strict accordance with the advanced production process to ensure the quality of the product is reliable.

6. High-quality services:

Technical services, installation guidance, regular and irregular return service to users, at any time to provide high-quality and perfect services, so that users can buy at ease, with comfort.

1 2 3 5 Ton Biomass Fired Steam Boiler Diesel Fuel Full Butt Welding For Plywood Plant

Technical Parameters

Main Technical parameters of WNS Biomass Gas-fired Steam Boiler

WNS0.5 WNS1 WNS2 WNS3 WNS4 WNS6
Steam Capacity t/h 0.5 1 2 3 4 6
Working Pressure MPa 1.0 1.25 1.25 1.25 1.25 1.25
Steam Temperature ℃ 184 193 193 193 193 193
Feed Water Temperature ℃ 20 20 20 20 20 20
Biomass Efficiency / ≥88%
Gas efficiency / ≥92%
Fuel / Biomass particles, natural gas, liquefied gas, city gas, producer gas, light oil, etc.
Fuel Consumption Biomass particles Kg/h 89 177 355 532 711 1059
Natural gas NM3/h 38 75 149 223 298 446
Liquefied gas Kg/h 30 60 119 177 237 359
City gas NM3/h 81 160 318 473 634 950
Producer gas NM3/h 258 517 1038 1541 2063 3111
Light oil Kg/h 32 63 126 185 247 370
Gas Feed pressure Natural Gas mbar 50-100 50-100 50-100 50-100 50-100 50-100
City Gas mbar 70-200 70-200 70-200 70-200 70-200 70-200
Running water volume M3 1.2 1.96 3.4 4.98 5.63 7.32

Note: the fuel consumption in the table is low calorific value 17084KJ/Kg (4085Kcal/Kg) for biomass particles, 35588KJ/NM3 (8500Kcal/NM3) for natural gas, and 45998KJ/Kg (11000Kcal/Kg) for liquefied gas. Low calorific value of city gas 16750KJ/NM3 (4000Kcal/NM3), low calorific value of furnace gas 5650KJ/NM3 (1351Kcal/NM3), low calorific value of light oil 42915KJ/K G (10260Kcal/Kg) calculation

External and Interface Dimension of WNS Biomass Gas Steam Boiler

Shape and Interface Dimensions of WNS Biomass Gas Steam boilers
Item Unit WNS0.5 WNS1 WNS2 WNS3 WNS4 WNS6
Transport Dimension (L*W*H) / mm 3220*1550*1720 3730*1790*2010 4240*2140*2182 4243*2453*2488 4473*2470*2736 4530*3010*3090
Mainframe transport weight / t 3.2 5.3 8.5 10.5 13 17
Main Steam Valve Pipe Diameter DN mm 40 65 80 100 100 125
Feed Water Valve DN mm 25 40 40 40 40 50
Safety Valve Diameter DN mm 40 2*50 2*50 2*50 2*50 2*80
Drain Valve Pipe Diameter DN mm 40 40 40 40 40 40
Chimney Diameter φ mm 250 280 350 400 400 600

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.

1 2 3 5 Ton Biomass Fired Steam Boiler Diesel Fuel Full Butt Welding For Plywood Plant
