Commercial Wood Chip Boiler , Biomass Central Heating Gas Oil Powered
Commercial Wood Chip Boiler , Biomass Central Heating Gas Oil Powered
Commercial Wood Chip Boiler , Biomass Central Heating Gas Oil Powered
Commercial Wood Chip Boiler , Biomass Central Heating Gas Oil Powered
Specifications
Brand Name :
Yuji
Model Number :
Biomass/Gas&Oil Fired Steam Boiler
Certification :
ISO CE
Place of Origin :
China (Mainland)
MOQ :
1 set
Price :
Negotiable
Supply Ability :
5 sets a month
Delivery Time :
15 days
Packaging Details :
wood packet
Product Name :
WNS Series Commercial Biomass gas oil Fired Powered Steam Boiler
Steam Capacity :
0.5-6t
Rated Pressure :
1.25MPa
Weight :
Depends
Usage :
ndustrial, power, central heating, paper mill, Industry/Power Station
Dimension :
Depends
Style :
Historical
Warrary :
2years
Description

Product Discription

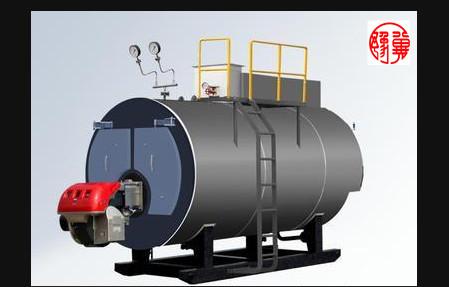

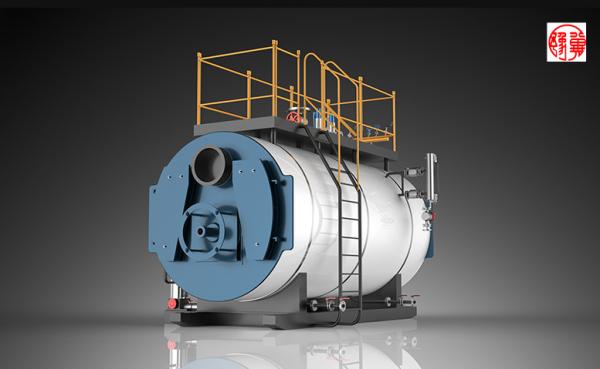

WNS Series Horizontal Biomass Gas Fired Steam Boiler

The WNS series of horizontal biomass vapour gases is a fast -charging internal combustion heater, the triple boiler of the firing line. the boiler is equipped with a moving front and rear smoke box, which It's convenient for maintenance.

Product Features

1. Easy to clean the ashes.

There are many cleaning holes in the boiler, which can control the ash in a timely and effective manner, to prevent total failure to function the boiler and reduce the thermal efficiency.

2. High security:

The water supply is controlled by a computer and supplied automatically.

3. Life and duration

Professional boiler design, advanced production equipment, strict quality controls to ensure the quality of new boilers.

4. Environmental protection and low noise

The boiler exhaust is low, with a high efficiency dust collector and a low noise fan in the tail.

5. Processing specifications:

Certain boilers are manufactured in accordance with national and international standards (ISO).

6.Best service:

Technical service, guidance, regular and informal return service, at any time to provide you with high quality and perfect service.

Commercial Wood Chip Boiler , Biomass Central Heating Gas Oil Powered

Technical Parameters

Main Technical parameters of WNS Biomass Gas-fired Steam Boiler

WNS0.5 WNS1 WNS2 WNS3 WNS4 WNS6
Steam Capacity t/h 0.5 1 2 3 4 6
Working Pressure MPa 1.0 1.25 1.25 1.25 1.25 1.25
Steam Temperature ℃ 184 193 193 193 193 193
Feed Water Temperature ℃ 20 20 20 20 20 20
Biomass Efficiency / ≥88%
Gas efficiency / ≥92%
Fuel / Biomass particles, natural gas, liquefied gas, city gas, producer gas, light oil, etc.
Fuel Consumption Biomass particles Kg/h 89 177 355 532 711 1059
Natural gas NM3/h 38 75 149 223 298 446
Liquefied gas Kg/h 30 60 119 177 237 359
City gas NM3/h 81 160 318 473 634 950
Producer gas NM3/h 258 517 1038 1541 2063 3111
Light oil Kg/h 32 63 126 185 247 370
Gas Feed pressure Natural Gas mbar 50-100 50-100 50-100 50-100 50-100 50-100
City Gas mbar 70-200 70-200 70-200 70-200 70-200 70-200
Running water volume M3 1.2 1.96 3.4 4.98 5.63 7.32

Note: the fuel consumption in the table is low calorific value 17084KJ/Kg (4085Kcal/Kg) for biomass particles, 35588KJ/NM3 (8500Kcal/NM3) for natural gas, and 45998KJ/Kg (11000Kcal/Kg) for liquefied gas. Low calorific value of city gas 16750KJ/NM3 (4000Kcal/NM3), low calorific value of furnace gas 5650KJ/NM3 (1351Kcal/NM3), low calorific value of light oil 42915KJ/K G (10260Kcal/Kg) calculation

External and Interface Dimension of WNS Biomass Gas Steam Boiler

Shape and Interface Dimensions of WNS Biomass Gas Steam boilers
Item Unit WNS0.5 WNS1 WNS2 WNS3
Transport Dimension (L*W*H) / mm 3220*1550*1720 3730*1790*2010 4240*2140*2182 4243*2453*2488
Mainframe transport weight / t 3.2 5.3 8.5 10.5
Main Steam Valve Pipe Diameter DN mm 40 65 80 100
Feed Water Valve DN mm 25 40 40 40
Safety Valve Diameter DN mm 40 2*50 2*50 2*50
Drain Valve Pipe Diameter DN mm 40 40 40 40
Chimney Diameter φ mm 250 280 350 400

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
