Condensing Biomass Hot Water Boiler , Wood Pellet Steam Boiler Explosion Proof
Condensing Biomass Hot Water Boiler , Wood Pellet Steam Boiler Explosion Proof
Condensing Biomass Hot Water Boiler , Wood Pellet Steam Boiler Explosion Proof
Condensing Biomass Hot Water Boiler , Wood Pellet Steam Boiler Explosion Proof
Specifications
Brand Name :
Yuji
Model Number :
Biomass/Gas&Oil Fired Steam Boiler
Certification :
ISO CE
Place of Origin :
China (Mainland)
MOQ :
1 set
Price :
Negotiable
Supply Ability :
5 sets a month
Delivery Time :
15 days
Packaging Details :
wood packet
Steam Capacity :
0.5-6t
Working Pressure :
1.0-1.25MPa
Biomass Fired Efficiency :
88%
Gas Fired Efficiency :
92%
Fuel :
Biomass Gas Oil
Water volumn :
1.2-7.32m³
Dimension :
Depends
Weight :
3.2-17t
Warrary :
2 years
Color :
Customization
Description

Product Discription

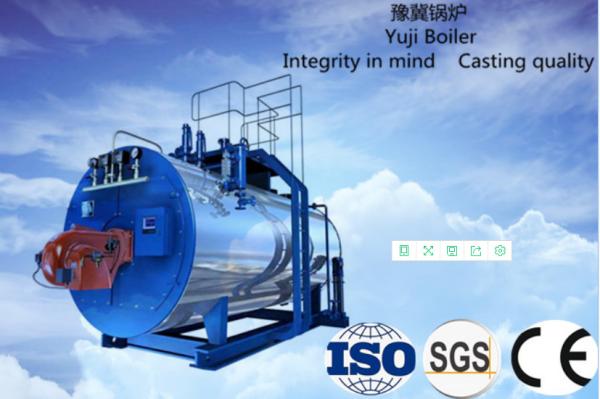

WNS Series Horizontal Biomass Gas Fired Steam Boiler

WNS series horizontal biomass gas fired steam boiler is fast loading structure, internal combustion, three-pass fire tube boiler, use offset wet back structure, high temperature flue gas scour second-pass and third-pass fire tubes one after another, and then discharge into atmosphere from back smoke box and chimney. Boiler equip with mobile front and back smoke box cover, convenient maintenance.

Product Features

1. Installation convenience:

The boiler is generally fast-loading factory, easy to transport and on-site installation, greatly shorten the construction cycle, save installation costs, so that the boiler can be put into production in time.

2.Reliable operation:

Boiler heating surface layout is reasonable, water circulation is smooth, and each heating surface is cooled in time, so as to effectively ensure the safe operation of the boiler.

3.Maintenance and repair convenience:

Boiler drum set up manhole, can enter inspection repair. It is convenient to open the smoke box in front of the boiler, and the personnel can check it easily and clearly, which provides a good condition for correct treatment.

4.Full combustion:

With the secondary air and reasonable furnace design, the fuel can be fully burned and the black smoke can be eliminated.

5.High efficiency grate:

Boiler grate adopts double side ventilation, which is brought naturally to the front end of boiler row by dust cleaning technology, which avoids air leakage, fuel leakage and uneven ventilation, and is easy to operate, and has obvious advantages compared with ordinary grate.

6.Convenient ash cleaning:

Many ash cleaning holes can be set up on the boiler, which can remove ash in time and effectively, avoid the trouble of operation and decrease of thermal efficiency caused by boiler ash accumulation, and ensure the stability of boiler load.

Condensing Biomass Hot Water Boiler , Wood Pellet Steam Boiler Explosion Proof

Technical Parameters

Main Technical parameters of WNS Biomass Gas-fired Steam Boiler

WNS0.5 WNS1 WNS2 WNS3 WNS4 WNS6
Steam Capacity t/h 0.5 1 2 3 4 6
Working Pressure MPa 1.0 1.25 1.25 1.25 1.25 1.25
Steam Temperature ℃ 184 193 193 193 193 193
Feed Water Temperature ℃ 20 20 20 20 20 20
Biomass Efficiency / ≥88%
Gas efficiency / ≥92%
Fuel / Biomass particles, natural gas, liquefied gas, city gas, producer gas, light oil, etc.
Fuel Consumption Biomass particles Kg/h 89 177 355 532 711 1059
Natural gas NM3/h 38 75 149 223 298 446
Liquefied gas Kg/h 30 60 119 177 237 359
City gas NM3/h 81 160 318 473 634 950
Producer gas NM3/h 258 517 1038 1541 2063 3111
Light oil Kg/h 32 63 126 185 247 370
Gas Feed pressure Natural Gas mbar 50-100 50-100 50-100 50-100 50-100 50-100
City Gas mbar 70-200 70-200 70-200 70-200 70-200 70-200
Running water volume M3 1.2 1.96 3.4 4.98 5.63 7.32

Note: the fuel consumption in the table is low calorific value 17084KJ/Kg (4085Kcal/Kg) for biomass particles, 35588KJ/NM3 (8500Kcal/NM3) for natural gas, and 45998KJ/Kg (11000Kcal/Kg) for liquefied gas. Low calorific value of city gas 16750KJ/NM3 (4000Kcal/NM3), low calorific value of furnace gas 5650KJ/NM3 (1351Kcal/NM3), low calorific value of light oil 42915KJ/K G (10260Kcal/Kg) calculation

External and Interface Dimension of WNS Biomass Gas Steam Boiler

Shape and Interface Dimensions of WNS Biomass Gas Steam boilers
Item Unit WNS0.5 WNS1 WNS2 WNS3 WNS4 WNS6
Transport Dimension (L*W*H) / mm 3220*1550*1720 3730*1790*2010 4240*2140*2182 4243*2453*2488 4473*2470*2736 4530*3010*3090
Mainframe transport weight / t 3.2 5.3 8.5 10.5 13 17
Main Steam Valve Pipe Diameter DN mm 40 65 80 100 100 125
Feed Water Valve DN mm 25 40 40 40 40 50
Safety Valve Diameter DN mm 40 2*50 2*50 2*50 2*50 2*80
Drain Valve Pipe Diameter DN mm 40 40 40 40 40 40
Chimney Diameter φ mm 250 280 350 400 400 600

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
