Boiler Spare Parts Heat Exchanger as boiler auxiliary machine accessories

Product Discription

Boiler Heat Exchanger

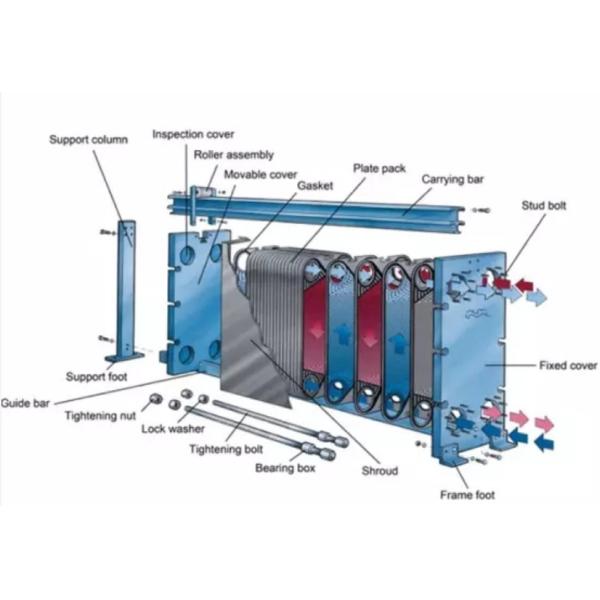

PLATE HEAT EXCHANGER IS A NEW TYPE OF HIGH EFFICIENCY HEAT EXCHANGER WHICH IS MADE OF A SERIES OF CORRUGATED METAL SHEETS. A THIN
RECTANGULAR CHANNEL IS FORMED BETWEEN THE PLATES, THROUGH WHICH THE HEAT EXCHANGE BETWEEN LIQUID, LIQUID AND VAPOR CAN BE ACHIEVED

Product Features

1.The plate heat exchanger is a new type of high efficiency heat exchanger with metal corrugated plates as heat transfer elements. Since the plate forms a special fluid passage after assembly, turbulence can be generated at a low Reynolds number, and it is not easy to scale. The plate material is made of high quality imported stainless steel plate, titanium plate and other materials, and the heat transfer coefficient is high, and the adjacent plate is corrugated. The peaks support each other to form a mesh contact, which improves the rigidity of the plate and can withstand a large pressure difference, ensuring safe and reliable use.
2.The plate used in the plate type heat exchanger is a high-efficiency heat exchange plate designed by integrating advanced technology at home and abroad. It has superior heat transferormance perf, circulation performance and pressure resistance, uniform fluid distribution, and is not easy to scale. The pressure drop achieves maximum heat transfer.

3.The heat transfer plate of plate type heat exchanger is made of titanium plate or stainless steel plate material, and the plate heat exchanger plate is pressed and formed on the special 10,000-ton hydraulic press.
The plate heat exchanger has various forms such as shallow corrugation, deep corrugation large ripple and small corrugation according to different working conditions.
