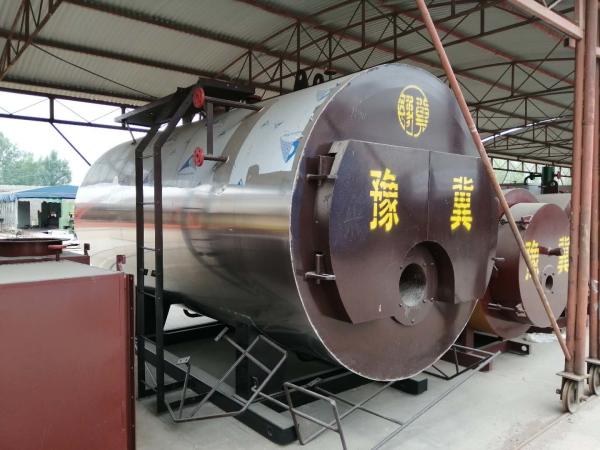

Food Processing Thermal Oil Heater Boiler Wet Back Structure Fast Charge Integrated
Food Processing Thermal Oil Heater Boiler Wet Back Structure Fast Charge Integrated
Food Processing Thermal Oil Heater Boiler Wet Back Structure Fast Charge Integrated
Food Processing Thermal Oil Heater Boiler Wet Back Structure Fast Charge Integrated
Specifications
Brand Name :
Yuji
Model Number :
WNS
Certification :
ISO9001 CE
Place of Origin :
China （Mainland）
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
one set two week
Delivery Time :
7-15 working day
Packaging Details :
wooden case packing
Product Name :
WNS Series6 6T/H Oil Fired Steam Boiler Used for Food Processing
Rated Working Pressure :
1.0MPa
Rated Steam Temperature :
193℃
Feed Water Temperature :
20℃
Efficiency :
96%
Chimney Diameter :
400mm
Rated Dimension :
5404*2406*2600mm
Color :
Customization
Description

Product Description

WNS Series High Efficiency Oil Fired Steam Boiler

The product model is Wns, a horizontal internal combustion of three -cycle gas (gas) with a fast charge integrated wet -back boilers. and condenser. The boiler is equipped with a perfectly automatic control and a safety system for the realization of automatic control, alarm and deactivation of the lowest water level, automatic boiler ignition, automatic setting of the firepower of the furnace fire protection to ensure safe operation. Installation of boilers.

The boiler's humidity water first enters the condenser, then returns to the tank after preheating the condenser (cooling the flue gas at the same time). iebsparrer and then sent to the boiler body.

he core of the boiler.



Brief Introduction of Boiler Operating Conditions

The boiler can work steadily under 80%100% working conditions. Under 100% nominal load the operating parameters of the boiler are: the temperature of the feed water 20C, the nominal working pressure 1.25MPa, and ten tons of steam of 193.4C can be produced in one hour. If the fuel is natural gas, is the calculated thermal efficiency 98.96%, the exhaust temperature is 48.93 degrees Celsius, and the fuel consumption is 754.78Nm3 /h (the product is used for one day).Low calorific value of natural gas (>36.36 MJ /Nm3).


Product Features
1. Reasonable design
2. High efficiency and energy saving
3. Manufacturing specifications
4. Large steam space
5. Longevity and durability
6. Easy maintenance

Food Processing Thermal Oil Heater Boiler Wet Back Structure Fast Charge Integrated

Technical Parameters

Main Technical parameters of WNS Series Steam Boiler
Item Unit WNS0.5 WNS1 WNS2 WNS3 WNS4 WNS6 WNS10 WNS15 WNS20
Steam Capacity t/h 0.5 1 2 3 4 6 10 15 20
Working Pressure MPa 1.0 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25
Steam Temperature ℃ 184 193 193 193 193 193 193 193 193
Feed Water Temperature ℃ 20 20 20 20 20 20 104 104 104
Thermal Efficiency / ≥96%
Fuel / Natural gas, liquefied gas, city gas, light oil
Fuel Consumption Natural gas NM3/h 37 73 145 217 289 435 735 1101 1467
Liquefied gas Kg/h 30 58 117 174.5 232 351 589 871 1151
City gas NM3/h 79 157 309 462 615 943 1575 2357 3147
Light oil Kg/h 32 61 121 182 243 367 601 906 1211
Gas Feed pressure Natural Gas mbar 70-100 100-150 100-150 150-200 150-200 150-200 150-200 150-300 150-300
City Gas mbar 100-200 100-200 100-200 150-200 150-200 150-200 150-200 150-300 150-300
Running water volume M3 0.78 3.3 3.6 5.2 6 9 11.6 24.5 29

Note: the fuel consumption in the table is based on light oil low calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.

Shape and Interface Dimensions of WNS Biomass Steam boilers
Item Unit WNS4 WNS6 WNS10 WNS15 WNS20
Transport Dimension (L*W*H) / mm 4928*2250*2600 5401*2406*2650 6280*2640*3176 8900*3400*3600 7800*3600*4000
Mainframe transport weight / t 11 18.6 20.5 42 52
Main Steam Valve Pipe Diameter DN mm 100 125 150 200 200
Feed Water Valve DN mm 40 50 50 65 65
Safety Valve Diameter DN mm 2*50 2*80 2*80 2*80 2*100
Drain Valve Pipe Diameter DN mm 2*40 2*40 2*40 2*50 2*50
Chimney Diameter φ mm 400 600 750 1000 1100

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.

Food Processing Thermal Oil Heater Boiler Wet Back Structure Fast Charge Integrated
