Large Industrial Oil Boiler Explosion Proof Low Pressure Large Radiate Heating Surface
Large Industrial Oil Boiler Explosion Proof Low Pressure Large Radiate Heating Surface
Large Industrial Oil Boiler Explosion Proof Low Pressure Large Radiate Heating Surface
Large Industrial Oil Boiler Explosion Proof Low Pressure Large Radiate Heating Surface
Specifications
Brand Name :
Yuji
Model Number :
WNS
Certification :
ISO9001 CE
Place of Origin :
China （Mainland）
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
one set two week
Delivery Time :
7-15 working day
Packaging Details :
wooden case packing
Name :
WNS Series2 2T/H Oil Fired Large Equipment Industrial Steam Boiler
Rated Pressure :
1.0MPa
Water Volumn :
3.6m³
Efficiency :
96%
Main Valve Diameter :
80mm
Safety Valve Diameter :
gas oil
Dimension :
2*40mm
Feed Water Temperature :
20℃
Description

Product Description

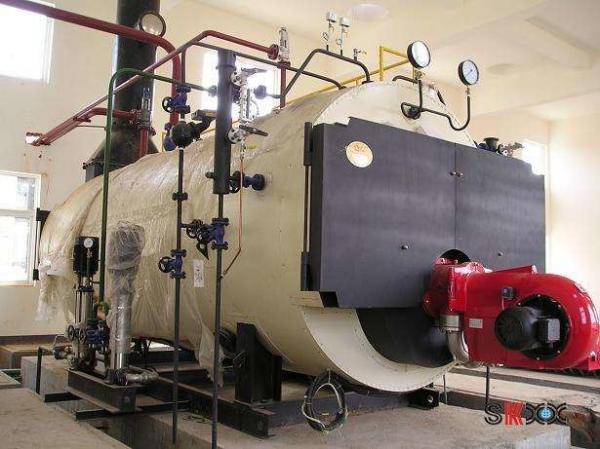

WNS Series High Efficiency Oil Fired Steam Boiler

The product model is a structural subsidy such as Wns furnace, rapid integration of fuel (gas) which corrodes the internal combustion gas three times. The wave-type furnace wall and re-fuel chamber are gas pipeline one time, and the third one is composed of energy saving and condenser. Boiler safety device. Installation device, installation of automatic control of lowest water level, police and stop, automatic ignition of boiler, automatic adjustment of fire power, digestion protection, safe operation to ensure.

Boiler softener enters the corresponding machinery first, and should be preheated by machinery (simultaneous cooler) and then returned to the study barrel.



Brief Introduction of Boiler Operating Conditions
The boiler can work tightly in 80%100% working conditions. In 100% nominal load, the operational parameters of the Kettle are: feeding water temperature 20C, nominal working pressure 1.25MPa, and ten tons of 193.4C steam can be produced in an hour. If the fuel UST Vel is natural gas, calculated thermal efficiency is 98.96%, exhaust temperature is 48.93 Graus Celsius, and fuel consumption is 754.78Nm3 /h (the product is used for a day).Low calorific value of natural gas (>36.36 MJ /Nm3).


Product Features
1. Reasonable design
2. High efficiency and energy saving
3. Manufacturing specifications
4. Large steam space
5. Longevity and durability
6. Easy maintenance

Large Industrial Oil Boiler Explosion Proof Low Pressure Large Radiate Heating Surface

Technical Parameters

Main Technical parameters of WNS Series Steam Boiler
Item Unit WNS0.5 WNS1 WNS2 WNS3 WNS4 WNS6 WNS10 WNS15 WNS20
Steam Capacity t/h 0.5 1 2 3 4 6 10 15 20
Working Pressure MPa 1.0 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25
Steam Temperature ℃ 184 193 193 193 193 193 193 193 193
Feed Water Temperature ℃ 20 20 20 20 20 20 104 104 104
Thermal Efficiency / ≥96%
Fuel / Natural gas, liquefied gas, city gas, light oil
Fuel Consumption Natural gas NM3/h 37 73 145 217 289 435 735 1101 1467
Liquefied gas Kg/h 30 58 117 174.5 232 351 589 871 1151
City gas NM3/h 79 157 309 462 615 943 1575 2357 3147
Light oil Kg/h 32 61 121 182 243 367 601 906 1211
Gas Feed pressure Natural Gas mbar 70-100 100-150 100-150 150-200 150-200 150-200 150-200 150-300 150-300
City Gas mbar 100-200 100-200 100-200 150-200 150-200 150-200 150-200 150-300 150-300
Running water volume M3 0.78 3.3 3.6 5.2 6 9 11.6 24.5 29

Note: the fuel consumption in the table is based on light oil low calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.

Shape and Interface Dimensions of WNS Biomass Steam boilers
Item Unit WNS0.5 WNS1 WNS2 WNS3 WNS4
Transport Dimension (L*W*H) / mm 2949*1454*1707 3198*1880*2166 4131*2247*2422 4485*2010*2402 4928*2250*2600
Mainframe transport weight / t 2.8 4.9 8 9 11
Main Steam Valve Pipe Diameter DN mm 40 65 80 100 100
Feed Water Valve DN mm 25 40 40 40 40
Safety Valve Diameter DN mm 40 2*40 2*40 2*50 2*50
Drain Valve Pipe Diameter DN mm 40 40 2*40 2*40 2*40
Chimney Diameter φ mm 250 280 300 400 400

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
