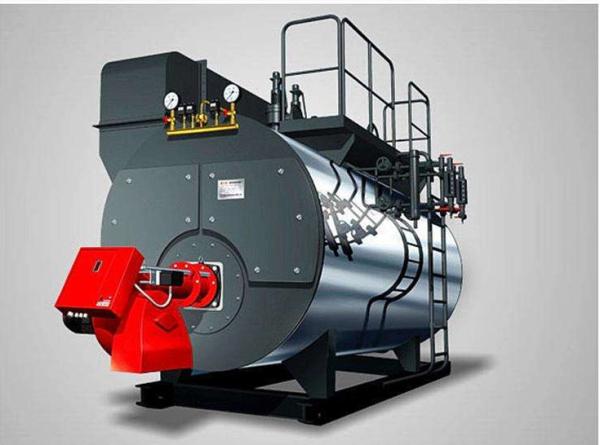

Custom Oil Fired Steam Boiler , Thermal Oil Boiler Easy Operation Low Emission
Custom Oil Fired Steam Boiler , Thermal Oil Boiler Easy Operation Low Emission
Custom Oil Fired Steam Boiler , Thermal Oil Boiler Easy Operation Low Emission
Custom Oil Fired Steam Boiler , Thermal Oil Boiler Easy Operation Low Emission
Specifications
Brand Name :
Yuji
Model Number :
WNS
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
one set two week
Delivery Time :
7-15 working day
Packaging Details :
wooden case packing
Name :
WNS Series1 1T/H Color Customization Low Pressure Oil Fired Steam Boiler
Pressure :
1.0MPa
Structure :
Fire tube
Boiler Efficiency :
96%
Type :
Horizontal
Design Fuel :
gas oil
Dimension :
3198*1880*2166mm
Feed Water Temperature :
20
Description

Product Description

WNS Series High Efficiency Oil Fired Steam Boiler

The product model is a structural subsidy such as Wns furnace, rapid integration of fuel (gas) which corrodes the internal combustion gas three times. The wave-type furnace wall and re-fuel chamber are gas pipeline one time, and the third one is composed of energy saving and condenser. Poller is an automatic control device and safety device. Installation device, installation of automatic control of lowest water level, police and stop, automatic ignition of boiler, automatic adjustment of fire power, digestion protection, safe operation to ensure.

Boiler softener enters the corresponding machinery first, and should be preheated by machinery (simultaneous cooler) and then returned to the study barrel. After preheating, the softener passes through the heater of the water supply pump, with the energy saver as the main body.



Brief Introduction of Boiler Operating Conditions
Poller can operate steadily under 80-100% working conditions. 1.25 MPa, 10 tons of 193.4C steam in one hour. The thermal efficiency of fuel is 98.96%, the exhaust temperature is 48.93 Celsius, and the fuel consumption is 754.78807888 nm 3/h (product day). Ten values (>36MJ/Nm3)


Product Features
1. Reasonable design
2. High efficiency and energy saving
3. Manufacturing specifications
4. Large steam space
5. Longevity and durability
6. Easy maintenance

Custom Oil Fired Steam Boiler , Thermal Oil Boiler Easy Operation Low Emission

Technical Parameters

Main Technical parameters of WNS Series Steam Boiler
Item Unit WNS0.5 WNS1 WNS2 WNS3 WNS4 WNS6 WNS10 WNS15 WNS20
Steam Capacity t/h 0.5 1 2 3 4 6 10 15 20
Working Pressure MPa 1.0 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25
Steam Temperature ℃ 184 193 193 193 193 193 193 193 193
Feed Water Temperature ℃ 20 20 20 20 20 20 104 104 104
Thermal Efficiency / ≥96%
Fuel / Natural gas, liquefied gas, city gas, light oil
Fuel Consumption Natural gas NM3/h 37 73 145 217 289 435 735 1101 1467
Liquefied gas Kg/h 30 58 117 174.5 232 351 589 871 1151
City gas NM3/h 79 157 309 462 615 943 1575 2357 3147
Light oil Kg/h 32 61 121 182 243 367 601 906 1211
Gas Feed pressure Natural Gas mbar 70-100 100-150 100-150 150-200 150-200 150-200 150-200 150-300 150-300
City Gas mbar 100-200 100-200 100-200 150-200 150-200 150-200 150-200 150-300 150-300
Running water volume M3 0.78 3.3 3.6 5.2 6 9 11.6 24.5 29

Note: the fuel consumption in the table is based on light oil low calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.

Shape and Interface Dimensions of WNS Biomass Steam boilers
Item Unit WNS0.5 WNS1 WNS2 WNS3 WNS4 WNS6
Transport Dimension (L*W*H) / mm 2949*1454*1707 3198*1880*2166 4131*2247*2422 4485*2010*2402 4928*2250*2600 5401*2406*2650
Mainframe transport weight / t 2.8 4.9 8 9 11 18.6
Main Steam Valve Pipe Diameter DN mm 40 65 80 100 100 125
Feed Water Valve DN mm 25 40 40 40 40 50
Safety Valve Diameter DN mm 40 2*40 2*40 2*50 2*50 2*80
Drain Valve Pipe Diameter DN mm 40 40 2*40 2*40 2*40 2*40
Chimney Diameter φ mm 250 280 300 400 400 600

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
