Product Discription

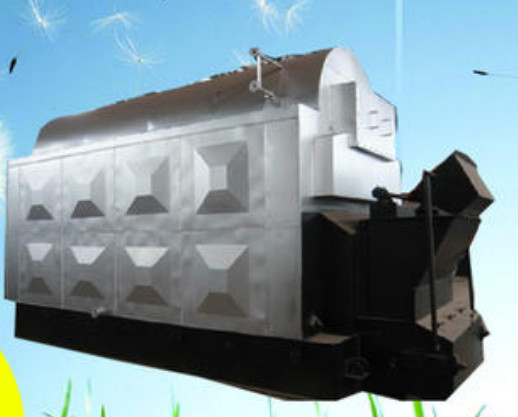

YLW Series Horizontal Chain Grate Biomass Thermal Oil Boiler
1. Heat exchanger with an organic heat exchanger square grid according to the YLW series, which is generated by a violent circulatory flow. The heat exchanger is the upper body (or upper body ++ lower body) and the upper part of the lower body, and is assembled on site.The boiler is fitted with individual or double heat exchanger tubes. o waste heat recovery, recovery of waste heat, reduction of waste heat temperature, improvement of thermal efficiency, reduction of fuel consumption and energy savings.
2. Organic heat boiler is a unique industrial boiler using coal, heavy oil, light oil and gas as fuel, high -temperature oil as a heating port, an oil pump circulating as a heat transmission unit, and a thermal outlet in the heating pantry and the heating pantry. He's using oil. Mu Bo! This is a new type of energy conversion device.The greatest advantage is high temperature and low pressure (air pressure or low pressure).Pressure, stable operation, choice.
Product Features
1. Removal of light ash:
The installation of a soot nozzle in the boiler's conventional heat transfer zone may immediately and effectively remove soot, avoid the effects of soot accumulation on the operation of the boiler or reduce the thermal efficiency and ensure that the boiler is stability.
2. High security level:
The machine is controlled by a computer and is equipped with a hot oil and oil deficiency protection system, a temperature control device and a pressure protection device that is safe and reliable.
3. Long life and durability:
Excellent engineering, advanced manufacturing technology, stringent quality control and quality assurance for all boilers. The normal life of the boiler shall be more than twenty years.
4. Environment and low noise:
Fuel gas emissions from boilers are low due to waste heat recovery, high efficiency dust collector, low noise fan, in order to meet national environmental requirements.
5. Standard production:
Boilers are manufactured in accordance with national and international standards (ISO). All processes closely follow advanced manufacturing technology to ensure product quality.
6. Good service:
Technical advice, technical services, installation guides, regular and irregular re -follow -up services for users at any time in order to provide quality and perfect services to ensure that customers are safe May be damaged and happily used.
Technical Parameters
Main Technical Parameters of YLW Series Biomass Heat Carrier
Item | Unit | YLW-1000T | YLW-1400T | YLW-1900T | YLW-3000T | YLW-3500T | YLW-4600T | YLW-7000T |
Thermal Power | KW | 1000 | 1400 | 1900 | 3000 | 3500 | 4600 | 7000 |
Heating Load X104 | Kcal/h | 80 | 120 | 160 | 250 | 300 | 400 | 600 |
Working Pressure | MPa | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
Rated oil output temperature | ℃ | 300 | 300 | 280 | 300 | 300 | 320 | 320 |
Rated oil return temperature | ℃ | 280 | 280 | 265 | 280 | 280 | 295 | 300 |
Thermal Efficiency | / | ≥79 | ||||||
Fuel | / | Fuel | ||||||
Fuel Consumption | Kg/h | 242.7 | 364 | 484 | 756.7 | 910.4 | 1208.7 | 1813.2 |
Heating area | m2 | 64.8 | 108.4 | 198 | 212 | 245 | 304.8 | 399.4 |
Grate area | m2 | 2.02 | 3.7 | 4.92 | 5.32 | 6.23 | 8.5 | 11.8 |
Main engine oil capacity | m3 | 0.65 | 0.71 | 2.8 | 3.4 | 4.35 | 4.94 | 7.6 |
Note: the fuel consumption in the table is calculated on the basis of the low calorific value of biomass particles 17084KJ/Kg (4085Kcal/Kg). If the low calorific value of biomass fuel is larger than this value, the corresponding fuel consumption will be more economical than the value in the table.
Item | Unit | YLW-1000T | YLW-1400T | YLW-1900T | YLW-3000T | YLW-3500T | YLW-4600T | YLW-7000T | |
Thermal Power | / | KW | 1000 | 1400 | 1900 | 3000 | 3500 | 4600 | 7000 |
Heating LoadX104 | Kcal/h | 80 | 120 | 160 | 250 | 300 | 400 | 600 | |
Maximum Part Transport Dimension | L | mm | 4400 | 5500 | 6380 | 5720 | 6470 | 6460 | 7040 |
W | mm | 2200 | 2650 | 2990 | 2990 | 2840 | 2980 | 3240 | |
H | mm | 3150 | 3410 | 3780 | 3100 | 3100 | 3720 | 3300 | |
Oil Outlet Pipe Diameter | DN | mm | 65 | 125 | 125 | 150 | 200 | 200 | 250 |
Oil Return Pipe Diameter | DN | mm | 40 | 125 | 125 | 150 | 200 | 200 | 250 |
Exhaust Pipe Diameter | DN | mm | 2*25 | 2*25 | 25 | 25 | 25 | 2*25 | 2*25 |
Drain Valve Pipe Diameter | DN | mm | 2*25 | 2*25 | 25 | 25 | 40 | 2*25 | 2*25 |
Chimney Diameter | φ | mm | 280 | 350 | 420 | 450 | 530 | 530 | 800 |
Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
