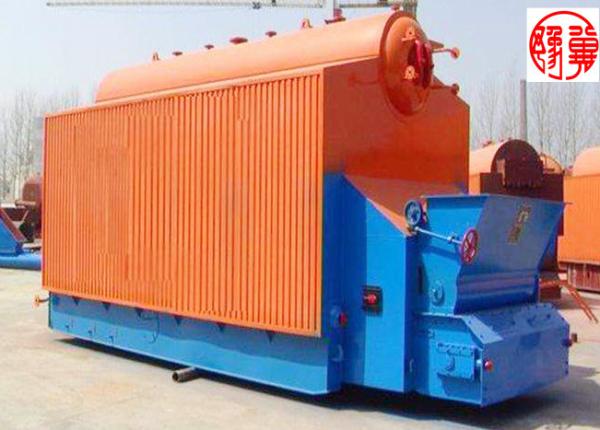

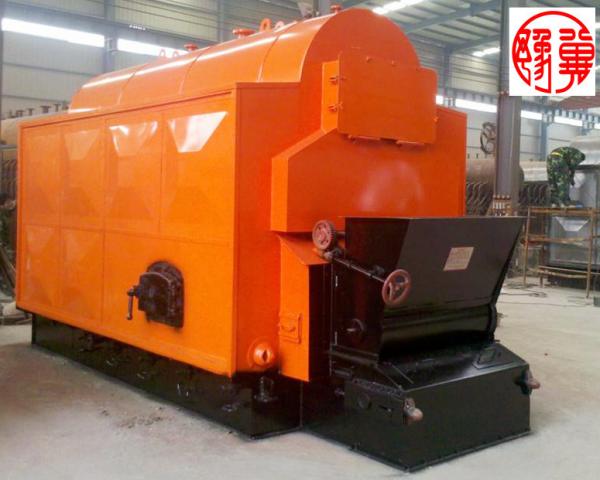

Horizontal Industrial Hot Water Boiler System Low Noise With Water Cooling Wall
Horizontal Industrial Hot Water Boiler System Low Noise With Water Cooling Wall
Horizontal Industrial Hot Water Boiler System Low Noise With Water Cooling Wall
Horizontal Industrial Hot Water Boiler System Low Noise With Water Cooling Wall
Specifications
Brand Name :
Yuji
Model Number :
Biomass Hot Water Boiler
Certification :
ISO CE
Place of Origin :
China (Mainland)
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
15 days
Packaging Details :
Wood packet
name :
5.6MW 115℃ DZL Series High Efficiency Biomass Fired Hot Water Boiler
Outlet Water Diameter :
200mm
Safety Valve Diameter :
2*50mm
Return Water Diameter :
200mm
Dimension :
7.8*3.4*3.7m
Chimney Diameter :
720mm
Weight :
33t
Grate area :
11.7㎡
Color :
Customization
Style :
Historical
Description

Product Discription

DZL Series Biomass Fired water Boiler

The plate is 1600mm.On the side of the furnace tower there is a water cooling wall and a heating surface for radioactive water.

Body configuration, water -cooled wall structure 160, internal solution 160, 1600, 1600 *14, police 57 *3, 159 *6, 133 *6, 130, before and after police use, high combustion speed.

Product Features

1. Easy to install:

Boilers are usually equipped with a quick installation device, which facilitates the transport and installation of the equipment, significantly shortens the construction cycle and provides comfort to users.

2. Operational failure:

The boiler equipment is complete, the water circulation is smooth and the cooling is done on time.

3.Maintenance equipment:

It is easy to open the drawer in front of the boiler and the staff can check it easily and clearly. These are good conditions for proper operation.

4. Total combustion

The coating system is reasonable, the water circulation is smooth and cooling is on time.

5. Life and sustainability:

Freezing is an excellent, advanced production equipment, and quality control is strict. Each new boiler has a quality guarantee.

6. Low noise level:

The boiler is characterised by a low temperature of emissions of gases from the chamber, high -performance scrubbers, low -noise air, etc., which meet national environmental requirements.

.

Horizontal Industrial Hot Water Boiler System Low Noise With Water Cooling Wall

Technical Parameters

Main Technical Parameters of DZL Series Biomass Hot Water Boiler

Item Unit DZL0.7 DZL1.4 DZL2.1 DZL2.8 DZL4.2 DZL5.6 DZL7
Thermal Power MW 0.7 1.4 2.1 2.8 4.2 5.6 7
Outlet Pressure MPa 1.0 1.0 1.0 1.0 1.0/1.25 1.0/1.25 1.0/1.25
Outlet Temperature ℃ 95 95 95 95 95/115 95/115 95/115
Feed Water Temperature ℃ 70 70 70 70 70 70 70
Thermal Efficiency / ≥83%
Fuel / Biomass particles
Fuel Consumption Kg/h 174.3 348.6 517 687.2 1024 1374.3 1708
Heating area m2 35.2 79.8 114.2 168 207.6 300.5 391
Grate area m2 1.97 3.2 4.8 5.5 7.04 11.7 13.6
Power consumption Kw 18 26 31.5 34 62.4 76.4 87.2
water volume m3 5.1 5.58 6.95 9.3 14 17.8 20.5

Note: the fuel consumption in the table is calculated on the basis of the low calorific value of biomass particles 17084KJ/Kg (4085Kcal/Kg). If the low calorific value of biomass fuel is larger than this value, the corresponding fuel consumption will be more economical than the value in the table.

Item Unit DZL0.7 DZL1.4 DZL2.1 DZL2.8 DZL4.2 DZL5.6 DZL7
Thermal Power MW 0.7 1.4 2.1 2.8 4.2 5.6 7

Transport Dimension

 L mm 5100 6140 6330 6880 7290 7800 8500
W mm 2200 2600 2700 2700 3190 3400 3400
H mm 2900 3300 3300 3300 3700 3700 3700
Mainframe Transport Weight / t 15 18 24 27 31 33 41
Outlet Water Valve DN mm 80 100 125 125 150 200 200
Feed Water Valve DN mm 80 100 125 125 150 200 200
Safety Valve Diameter DN mm 1*32 1*50 2*40 2*40 2*50 2*50 2*50/80
Drain Valve Pipe Diameter DN mm 3*40 3*40 3*40 3*40 3*40 3*40 3*40
Chimney Diameter φ mm 280 350 410 410 530 720 750

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
