Specifications
Brand Name :
Yuji
Model Number :
Gas&Oil Fired Heat Carrier Boiler
Certification :
ISO CE
Place of Origin :
China (Mainland)
MOQ :
1 set
Price :
Negotiable
Supply Ability :
5 sets per month
Delivery Time :
15 days
Packaging Details :
wood packet
Name :
YY(Q)W Series 1400kw 1.0MPa high efficiency propane Hot Oil Boiler
Working Power :
1400KW
Usage :
Industrial, home, vila, Domestic, hotel
efficiency :
92%
Style :
Horizontal
Fuel :
Gas-fired, Oil-fired
Condition :
New
Structure :
Thermal Oil Boiler
Description

Product Discription

ISO standard boiler manufacture Hot Oil Boiler

YY (Q) W series boilers, also known as boilers for organic heat carriers, are used as heating fuels for oil and gas, fuel oil, hot fuel oil for the hot medium liquid cycle circulating through the pump, directing heat energy to the use of thermal equipment, returning to the kiln heat Heat obtained during heating and then during heating can meet the requirements of the boiler.Low temperature acquisition is characterized by low temperature acquisition. Heating temperatures may be reached in the 320 -liquid phase or in the 400 -vapour phase.

The heating surface is compact in structure. The heating surface consists of inner, central, outer (or inner, outer) circular threads placed in adjacent rows. Internal spirals absorb most of the radiation heating surface and high temperature flue -gas enters the conventional heating surface.e.g. transmission heating.

Product Features

1. Easy installation:

Boilers are usually divided into upper and lower parts, which is convenient for transport and installation on site, significantly shortens the installation cycle, saves installation costs and allows for the timely commissioning of the boiler.

2.Reliable operation:

The heating surface of the boiler is reasonably arranged and the warm -up circulation is smooth, ensuring the timely cooling of the heaters and the safe operation of the boiler.

3. Easy maintenance:

Kessel is equipped with several test holes, maintenance personnel are comfortable and clear, providing good conditions for proper operation.

4. Full combustion:

Kettle stove is high, fuel can be completely burned, under the cooperation of secondary air, can effectively remove black smoke.

5. High efficiency rust:

The boiler grid accepts a double -sided ventilation, which brings ash to the front of the rust and discharges it. It avoids air leakage, oil leakage and uneven ventilation. It is easy to use and has many advantages compared to conventional rust.

6. Easy to remove ash:

The installation of soot blowers in the convective heat transfer zone of the boiler can remove soot quickly and effectively, avoid the impact of soot accumulation on the boiler or reduce thermal efficiency and ensure the stability of the boiler load.

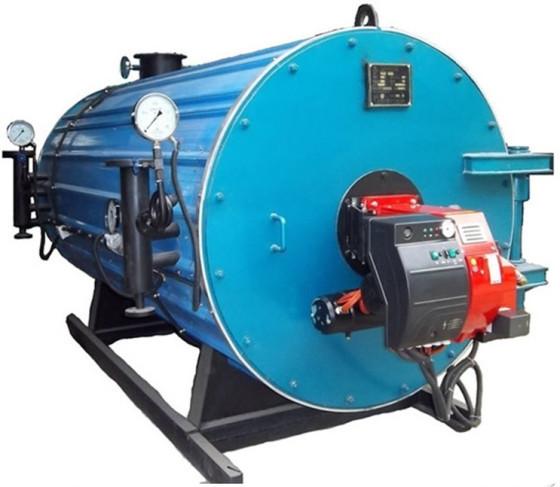

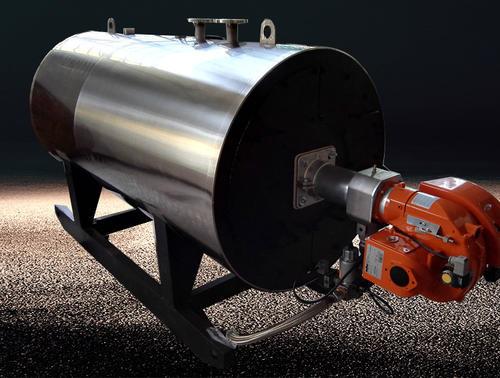

Propane Oil Furnace Hot Water Heater 1400kw Powerful Stable Output Easy Install

Technical Parameters

Main Technical parameters of YY(Q)W Series Horizontal Oil & Gas Fired Thermal Oil Boiler
Item Unit

YY(Q)W

-1400Y(Q)

YY(Q)W

-2100Y(Q)

YY(Q)W

-3000Y(Q)

YY(Q)W

-4200Y(Q)

YY(Q)W

-6000Y(Q)

YY(Q)W

-7000Y(Q)

Thermal Power KW 1400 2100 3000 4200 6000 7000
Heat Supply 104Kcal/h 120 180 250 360 500 600
Working Pressure MPa 1.0 1.0 1.0 1.0 1.0 1.0
Rated oil output temperature 300 300 300 300 300 320
Rated oil return temperature 280 280 280 280 280 300
Thermal Efficiency / ≥92%
Fuel / Natural gas, liquefied gas, city gas, light oil
Fuel Consumption Natural gas NM3/h 163 243 349 489 692 809
Liquefied gas Kg/h 127.7 189.9 269 376.8 535.7 624.8
City gas NM3/h 347.9 518.7 738.3 1036 1465.4 1706
Light oil Kg/h 139.3 203 287.3 415.2 571 665
Gas Feed pressure Natural Gas mbar 50-100 50-100 50-100 50-100 100-200 100-200
City Gas mbar 70-200 70-200 70-200 70-200 100-200 100-200
Rated circulating oil quantity M3/h 82.95 125.5 177.7 248.8 355 413
Mainframe Oil Volume M3 1.19 1.6 2.2 3.92 4.3 5.9

Note: the fuel consumption in the table is based on light oil low calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.

Shape and Interface Dimensions of YY(Q)W Series Horizontal Oil & Gas Fired Thermal Oil Boiler
Item Unit

YY(Q)W

-3000Y(Q)

YY(Q)W

-4200Y(Q)

YY(Q)W

-6000Y(Q)

YY(Q)W

-7000Y(Q)

Transport Dimension (L*W*H) / mm 5808*2505*2820 7082*2970*3140 8100*3190*3430 8910*3370*3620
Mainframe transport weight / t 11 18 26 30
Outlet Diameter DN mm 150 200 200 250
Return Pipe Diameter DN mm 150 200 200 250
Drain Valve Pipe Diameter DN mm / / / /
Discharge Pipe Diameter DN mm 40 40 40 50
Chimney Diameter φ mm 500 600 700 800

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
