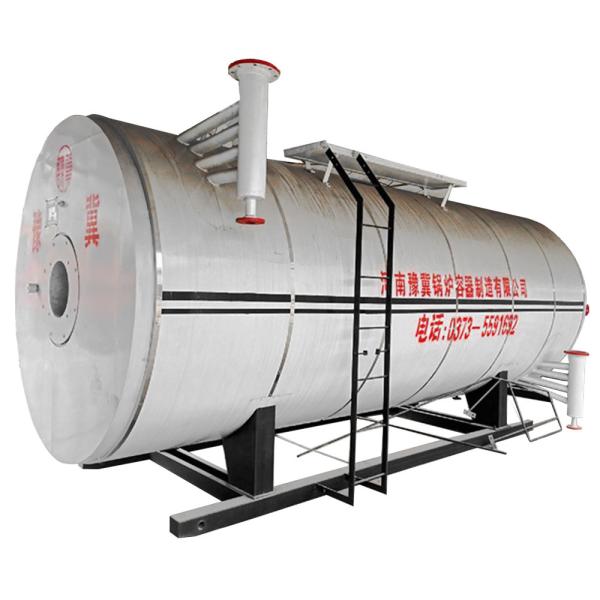

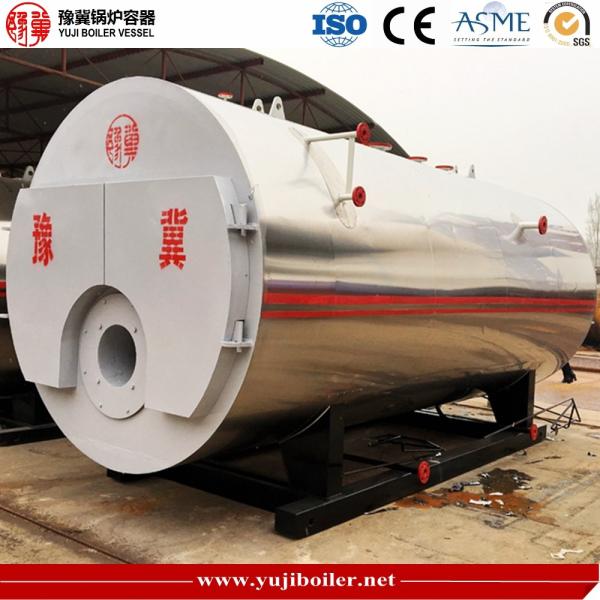

ISO standard boiler manufacture Hot Oil Boiler

YY(Q)W series boiler also called organic heat carrier boiler, using oil and gas as fuel, and using thermal oil as medium, through hot oil circulation pump forced medium liquid phase circulation, after transport thermal energy to the use of thermal equipment, return back to furnace for reheating, with the performance characteristics of acquire high temperature under low pressure, its heating temperature can reach to liquid phase 320℃ or vapor phase 400℃. Any production line which need evenly and steadily heating, and not allow the flame heating directly, the temperature between 250℃ with 380℃ all can use thermal oil boiler supply heating.

This boiler heating surface has compact structure , the heating surface was made up of inner, central, outer (or inner and outer) closely spaced round coiled tubes, inner coiled tubes is radiation heating surface absorb most of heating, high temperature flue gas go into convection heating surface and transfer heating. Flue gas out of boiler was absorbed waste heat by heat exchanger at boiler end, and then pass chimney and discharge into atmosphereP

Product Features

1. Easy Installation:

Generally, the boiler divided into up and down parts, easy to transport and install at site, greatly shorten the period of installation, save the installation costs, to make the boiler go into production timely.

2. Reliable Operation:

The heating surface of boiler is reasonably settled, thermal oil circulation fluent, to ensure that each heating furnace cool down timely, and ensure the boiler running safety.

3. Easy Maintenance:

Set several inspect hole on boiler, serviceman can inspect easily and clearly, provide excellent conditions for correctly handle.

4. Full Combustion:

The boiler furnace is higher, fuel can be fully burning, in the cooperation of secondary air, can remove the black smoke effectively.

5. High Efficiency Grate:

Boiler grate use double side ventilation, bring the ash to the front end and remove it, avoid the problem of air leakage, fuel leakage and uneven ventilation, and easy operation, have lots of advantages compared to traditional grate.

6. Easy to Remove Ash:

Set soot blower at convection heat transfer zone of boiler, can remove ash timely and efficiently, to avoid ash deposition in boiler making the boiler running is affected or thermal efficiency is dropped etc. To ensure stability of boiler loading.

Technical Parameters

Note: the fuel consumption in the table is based on light oil low calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
