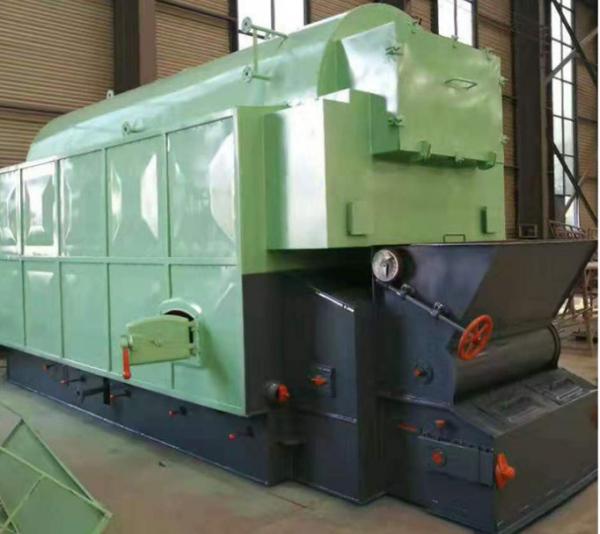

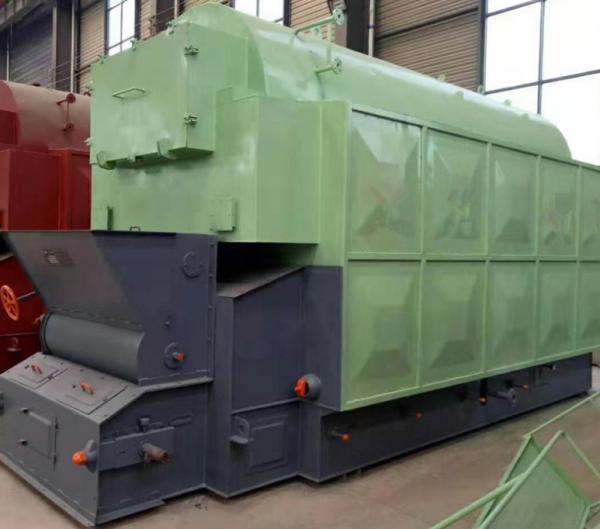

DZL Biomass Steam Boiler Rapid Warming Fast Assembling 1 Ton Capacity
DZL Biomass Steam Boiler Rapid Warming Fast Assembling 1 Ton Capacity
DZL Biomass Steam Boiler Rapid Warming Fast Assembling 1 Ton Capacity
DZL Biomass Steam Boiler Rapid Warming Fast Assembling 1 Ton Capacity
Specifications
Brand Name :
Henan Yuji
Model Number :
DZL
Certification :
ISO CE
Place of Origin :
China (mainland)
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 Sets Per5 a Month
Delivery Time :
20 days
Packaging Details :
Wood Packet, Dimension depends on product
Product Name :
DZL1 1t/h Easy To Operation DZL Series Biomass Fired Steam Boiler
Design Fuel :
Biomass, Straw, Wood, Coal
Usage :
Industical Hospital
Style :
Historical
Condition :
New
Working Pressure :
1.25Mpa
Transport Dimension :
5.1*2.2*2.9
Weight :
15t
Description

Product Description

DZL SeriesBiomass Steam Boiler

The new DZL steam boiler series is a single coil cooled with shells and pipe boilers with chain combustion equipment. The water wall on both sides of the furnace body is a radiant heat surface.

In the lower part of the kiln tubes, a new cross -arrangement technology is used. The two branches of the furnace body are convective heat surfaces and the wired smoke tube (57 x3) convective heat surface is placed in the boiler. The wall is made of heat -resistant concrete and the outside of the boiler is a three -dimensional shell.

Product Features

1. Facility comfort:

The boiler is usually a fast -charging plant, easy to transport and install on site, significantly shortens the installation cycle, saves installation costs so that the boiler can be put into production in time.

2. Reliable operation:

It is reasonable with regard to the design of the heating surface, the water circulation is smooth and each heating surface is cooled in time for the boiler to function safely.

3. Maintenance and repair of convenience:

Boilers drum set up sewer, can enter inspection repair. It is convenient to op en the smoke box in front of the boiler and the staff can control it easily and clearly, giving a good condition for proper treatment.

4. Full combustion:

With secondary air and a sensible furnace design, the fuel can be fully incinerated and the black smoke can be removed.

5. High efficiency:

The boiler grill uses double -sided ventilation, which is naturally brought to the back of the boiler by means of dust abatement technology, which avoids air leakage, fuel leakage and uneven ventilation, which is easy to operate and which has obvious advantages over ordinary grates.

6. Recent ash treatment:

The boiler can be equipped with many ash cleaning loops that can remove ash in time and efficiently, avoid operating problems and reduce thermal efficiency caused by boiler ash accumulation and ensure boiler stability.

DZL Biomass Steam Boiler Rapid Warming Fast Assembling 1 Ton Capacity

DZL Biomass Steam Boiler Rapid Warming Fast Assembling 1 Ton Capacity

Technical Parameters

Main Technical Parameters of DZL Biomass Series Steam Boiler

Item Unit DZL1 DZL2 DZL3 DZL4 DZL6 DZL8 DZL10
Steam Capacity t/h 1 2 3 4 6 8 10
Working Pressure MPa 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6
Steam Temperature ℃ 193/204 193/204 193/204 193/204 193/204 193/204 193/204
Feed Water Temperature ℃ 20 20 20 20 20 20 60
Thermal Efficiency / ≥82%
Fuel / Biomass particles
Fuel Consumption Kg/h 176.6 352.3 571 522 1044 1396.5 1743.3
Heating area m2 39.82 86 120.2 174.32 220.6 317 409
Grate area m2 1.97 3.2 4.8 5.5 7.04 11.7 13.6
Power consumption Kw 18 26 31.5 34 62.4 76.4 87.2
water volume m3 4.5 4.68 5.9 6.3 11 13.8 16.5

Note:biomass particles 17084KJ/Kg (4085Kcal/Kg). If the low calorific value of biomass fuel is larger than this value, the corresponding fuel consumption will be more economical than the value in the table.

External and Interface Dimension of DZL Biomass steam boiler

Item Unit DZL1 DZL2 DZL3 DZL4 DZL6 DZL8 DZL10
Steam Capacity t/h 1 2 3 4 6 8 10

Transport Dimension

 L mm 5100 6140 6330 6880 7290 7800 8500
W mm 2200 2600 2700 2700 3190 3400 3400
H mm 2900 3300 3300 3300 3700 3700 3700
Mainframe Transport Weight / t 15 18 24 27 31 33 41
Main Steam Valve Pipe Diameter DN mm 65 80 100 100 125 150 150
Feed Water Valve DN mm 40 40 40 40 50 50 50
Safety Valve Diameter DN mm 2*40 2*50 2*50 2*50 50/80 2*80 2*80
Drain Valve Pipe Diameter DN mm 3*40 3*40 3*40 3*40 3*40 3*40 3*40
Chimney Diameter φ mm 280 350 410 410 530 720 750

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
