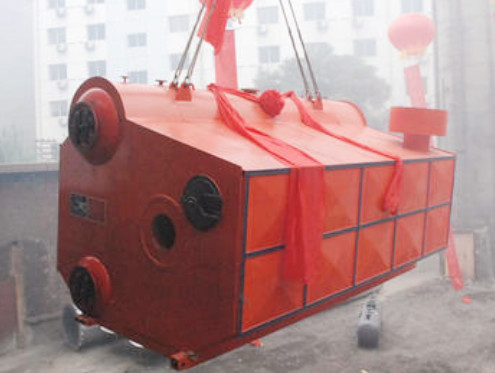

High Speed SZS Gas Fired Steam Boiler 10-65kg Q345R Steel Plate Material
High Speed SZS Gas Fired Steam Boiler 10-65kg Q345R Steel Plate Material
High Speed SZS Gas Fired Steam Boiler 10-65kg Q345R Steel Plate Material
High Speed SZS Gas Fired Steam Boiler 10-65kg Q345R Steel Plate Material
Specifications
Brand Name :
Yuji
Model Number :
ZSZ Gas Fired Steam Boiler
Certification :
ISO CE
Place of Origin :
China (Mainland)
MOQ :
1 set
Price :
Negotiable
Supply Ability :
5 sets per month
Delivery Time :
15days
Packaging Details :
wood packet
Product Name :
SZS Series industrial Gas Fired Steam Boiler With CE Identification
Capacity :
10-65kg
fuel :
Light Oil
Material :
Q345R Steel Plate
Rated working pressure :
1.0Mpa /1.25Mpa
Structure :
Fire Tube
Dimension(l*w*h) :
Depends
After-sales service provided :
Engineers available to service machinery overseas
Description

Product Discription

SZS Series Double Drum Oil and Gas Fired Steam Boiler

Two double double boiler and boiler temperature coil, T is vertical, there are high-speed boiler SZS. break type of the windows of the upper and lower plate of the tube, and can include a capacitor. Oh, from the transfer tube to electronic broadcast pearl and burning fuel in the heat exchanger tubes. Industrial electrical work in China's future.

Product Features

1. Do not apply for all fuels:

The area is great and clean fuel combustion. Such as gas ovens and blast furnaces that are suitable for low-temperature aeration. Calories on clean fuels, such as gas consumption, gas and burning.

2. Load:

Oven, heat a large area, a high yield a sufficient storage capacity.

3. effective structure:

Control pan head placed in front of the front wall of the water helps to reduce heat and water savings, to ensure that the cold, consists of a burner. Kitchen mixing and combustion.

4. Easy to hold:

Floor blast doors, walls covered with fire pit and watch the door. Before and after the heating boiler cabinet boiler protection to ensure that the opened packaging.

5. The reduced calorie reduction:

Thick texture and reduces the heat loss and increase pan heat.

6. long life:

This is to ensure the quality of the pot, and for monitoring and quality control operations in a professional design, advanced technology. There was a kitchen, a service provider for 20 years.

High Speed SZS Gas Fired Steam Boiler 10-65kg Q345R Steel Plate Material

Techinical Parameters

Main Parameters of SZS Series Oil & Gas Fired Steam Boiler

Item Unit SZS10 SZS15 SZS20 SZS25 SZS35 SZS50 SZS65
Steam Capacity t/h 10 15 20 25 35 50 65
Working Pressure MPa 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6 1.6/2.5 1.6/2.5
Steam Temperature ℃ 193/204 193/204 193/204 193/204 193/204 204/226 204/226
Feed Water Temperature ℃ 104 104 104 104 104 104 104
Thermal Efficiency / ≥98%
Fuel / Natural Gas, Liquefied Gas, City Gas, Light Oil
Fuel Consumption Natural Gas NM3/h 733 1098 1464 1829 2559 3662 4769
Liquefied Gas Kg/h 588 883 1173 1469 2053 2937 3823
City Gas NM3/h 1573 2362 3143 3945 5503 7877 10222
Light Oil Kg/h 601 898 1197 1496 2093 2997 3893
Gas Inlet Pressure Natural Gas Mbar 150-200 150-300 150-300 150-300 150-300 150-300 150-300
City Gas Mbar 150-200 150-300 150-300 150-300 150-300 150-300 150-30


Remarks: The fuel consumption in above table are counted the low calorific value of light oil as 42915 KJ/Kg(10260Kcal/Kg), the low calorific value of natural gas as 35588 KJ/NM3(8500Kcal/NM3), the low calorific value of liquefied oil as 45998 KJ/Kg(11000Kcal/Kg), the low calorific value of city gas as 16750 KJ/NM3(4000Kcal/NM3).

Item Unit SZS10 SZS15 SZS20 SZS25 SZS35 SZS50 SZS65

Transport Dimension

 L mm 5633 6365 6665 Separated Transport Separated Transport Separated Transport Separated Transport
W mm 3300 3585 3585
H mm 3400 3478 3850
Main Steam Valve Pipe Diameter DN mm 150 150 200 200 250 2×150 2×150
Feed Water Valve DN mm 50 65 65 80 100 125 125
Drain Valve Pipe Diameter DN mm 40 40 50 50 50 50 50
Chimney Diameter DN mm 750 1000 1100 1300 1500 2000 2000

External and Interface Dimension of SZS Series Oil & Gas Fired Steam Boiler

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
