Commercial Oil Fired Condensing Boiler Wet Tail Structure Expansion Proof Large Chamber
Commercial Oil Fired Condensing Boiler Wet Tail Structure Expansion Proof Large Chamber
Commercial Oil Fired Condensing Boiler Wet Tail Structure Expansion Proof Large Chamber
Commercial Oil Fired Condensing Boiler Wet Tail Structure Expansion Proof Large Chamber
Specifications
Brand Name :
Yuji
Model Number :
Condensation Steam Boiler
Certification :
ISO CE
Place of Origin :
China (Mainland)
MOQ :
1 set
Price :
Negotiable
Supply Ability :
5 sets per month
Delivery Time :
15 days
Packaging Details :
wood packet
Name :
WNS Series WNS8 193℃ High Efficiency Condensation Steam Boiler
Working Pressure :
1.25Mpa
Rated Efficiency :
100%
Material :
Q345R Steel Plate
Output :
Steam
Rated evaporation :
6t/h
Applicable industries :
Food & Beverage Factory, Manufacturing Plant, Printing Shops, Restaurant, Food Shop
Color :
Customer's Requirement
Description

Product Discription

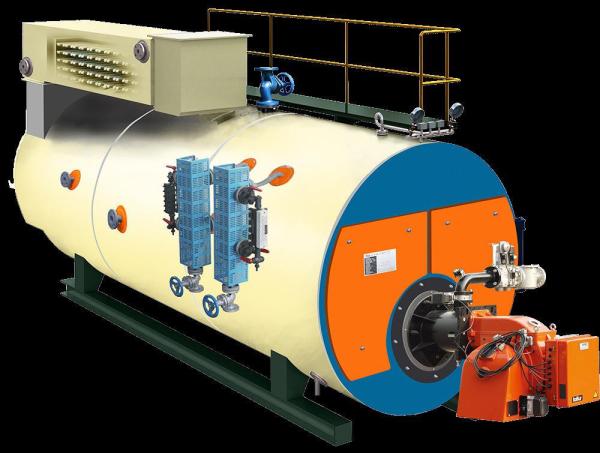

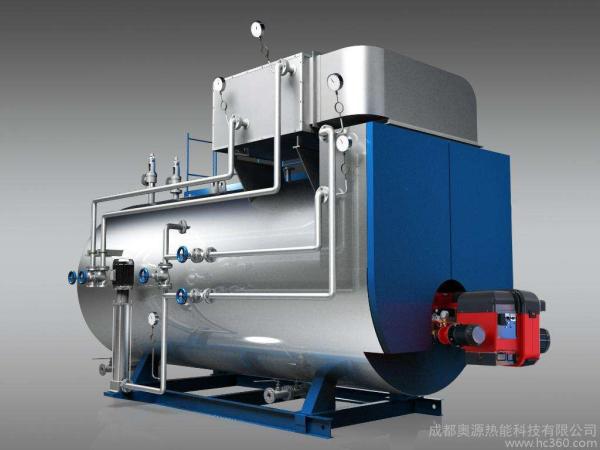

WNS Condensing Steam Boiler

The product model is WNS. It is an integrated fuel (gas) boiler with a built -in wet back structure. The wool tank and ignition chamber are for the first time, the second p is a flue gas pipe and the third time is composed of an economist and a condenser.

This product is used for burning light oils, natural gas, etc. The fuel is discharged from the burner, ignited by an electronic ignition rod and burnt under slightly positive pressure in the furnace. The high -temperature smoke after combustion enters through a carved smoke pipe through the reflex chamber at 180 -degree and enters the front smoke box through the smoke pipe.

Product Features

1. Logical design:

Horizontal internal combustion with three cycles of complete liquid tail structure, 100% fire water design, 100% height bladder 100%, has good extensibility, sufficient s temperature range and logical structure arrangement.

2. High efficiency and energy saving:

The structure of the blast furnace, coil pipe and large combustion chamber is reasonable, energy consumption is low and the efficiency of heat transfer e is high. The thermal efficiency of boilers may exceed 96%, and if capacitors are installed, the efficiency may exceed 100%.

3. Processing specifications:

The components of the boiler are manufactured in accordance with national and international standards (ISO). Advanced production technologies are closely monitored at every stage of production to ensure product quality.

4. Large steam chamber:

Because steam drying helps to eliminate unnecessary additional condensation, reduce fuel consumption, scale and prolong its duration In operation, coal has enough steam room to handle the variations in load and maximum value and to provide steam for drying height of quality.

5. Duration and duration:

Excellent professional design, advanced production technology and strict quality control ensure the quality of all the boilers in the areas He nan and Hebei.

6. Easy to maintain:

There's a portable smoke door front and back, and a control hole in the back to control and clean the chimney. There are maintenance holes, uh boreholes and manual holes in the body, and the latter are fully examined in the design.

Commercial Oil Fired Condensing Boiler Wet Tail Structure Expansion Proof Large Chamber

Technical Parameters

Main Technical parameters of WNS Condensing Steam Boiler
Item Unit WNS1 WNS2 WNS4 WNS6 WNS8 WNS10 WNS15
Steam Capacity t/h 1 2 4 6 8 10 15
Working Pressure MPa 1.0 1.25 1.25 1.25 1.25 1.25 1.25
Steam Temperature ℃ 184 193 193 193 193 193 193
Feed Water Temperature ℃ 20 20 20 20 20 20 20
Thermal Efficiency / ≥100%
Fuel / Natural gas, liquefied gas, city gas, light oil
Fuel Consumption Natural gas NM3/h 67 135 273 408 547 681 1019
Liquefied gas Kg/h 54 109 217 328 438 547 823
City gas NM3/h 145 293 585 880 1162 1466 2202
Light oil Kg/h 58 116 230 341 470 573 872
Gas Feed pressure Natural Gas mbar 100-150 100-150 150-200 150-200 150-200 150-200 150-300
City Gas mbar 100-200 100-200 150-200 150-200 150-200 150-200 150-300
Running water volume M3 3.2 3.5 6 9 10.94 12.17 21.76

Note: the fuel consumption in the table is based on light oil low calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.

Shape and Interface Dimensions of WNS Condensing Steam Boiler
Item Unit WNS1 WNS2 WNS4 WNS6
Transport Dimension (L*W*H) / mm 3629*1900*2126 3736*2362*3429 4373*2608*3740 5132*2807*3958
Mainframe transport weight / t 6.1 8.3 11 16
Main Steam Valve Pipe Diameter DN mm 65 80 100 125
Feed Water Valve DN mm 40 40 40 50
Safety Valve Diameter DN mm 2*40 2*40 2*50 2*80
Drain Valve Pipe Diameter DN mm 2*40 2*40 2*40 2*40
Chimney Diameter φ mm 280 300 410 600

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
