Specifications
Brand Name :
HUXI
Model Number :
HX-CW250H
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
7-15 days
Packaging Details :
Carton
Application :
Clinical/ Hospital/ Laboratory
Country Of Origin :
China
Capacity(ml) :
0.1~300
Single ultrasound time(min) :
0.1~99.9
Operation mode :
20 /38/40mm
Ultrasound frequency(kHz) :
30
Standard horn(mm) :
Φ6
Optional horn(mm) :
Φ1.5/2/3/6/8
Horn Material :
TC4 titanium alloy
Description

Industrial ultrasonic homogenizer

Product Applications:

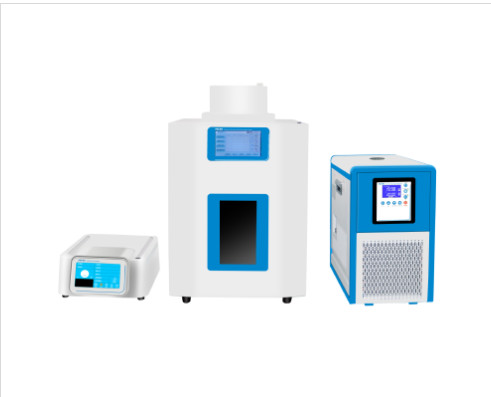

● HX-CW250H ultrasonic microwave combination reaction system with separate control and synergistic functions of microwave, ultrasonic, and microwave-ultrasonic. The system also realizes the functions of 7-inch touch interface control, with data storage, and high-definition visualization real-time display of reaction status.

● Microwave chemical synthesizer is widely used for chemical synthesis in many fields such as universities, research institutes, biopharmaceuticals, materials industry and mining. Microwave chemical synthesizer uses microwave, ultrasonic wave, ultraviolet light and other basic principles to have an effective catalytic effect on the reactants, can create a variety of synthetic conditions, accelerate the chemical synthesis reaction and other significant features.

Product features:

● Technical features

Temperature control system: infrared temperature sensor;

Container capacity: 250ml;

Operating system: microcomputer control technology, multi-stage program control mode.

Ultrasonic power: 1800W finely adjustable; Ultrasonic frequency: 20KHz, ultrasonic probe can be intervened or non-intervened in the sample, acting on the sample function through cavitation effect or air transfer;

Standard ultrasonic probe diameter: Φ15 suitable for different caliber reaction vessels.

Control system

Microwave frequency: 2450MHz, non-pulse continuous automatic frequency control, 0-100% power automatically and continuously adjustable;

Industrial grade magnetron: maximum microwave output power 1000W;

Temperature control system: Adopt wireless penetrating infrared temperature sensor

UV catalytic system: wavelength 253.7nm, power 100W;

Stirring device: magnetic stirring, stirring speed 0~2500rpm adjustable;

Multi-functional operation mode, which can be extended to microwave extraction, microwave synthesis, ultrasonic wall breaking, etc.

Furnace door and chamber safety

Six-layer steel structure safety furnace door with buffer floating design to ensure the safety during the experiment;

Adopting mechanical lock and electronic lock to coordinate and ensure that the door cannot be opened during operation, and the instrument automatically cuts off the microwave to stop working when the door is opened abnormally;

The furnace cavity is made of 316L industrial grade stainless steel, and the cavity is coated with up to 6 layers of PFA anti-corrosion coating.

Operating system

Microcomputer control technology, historical data can be viewed and data exported and imported;

Capacitive LCD touch screen, real-time display including: temperature, temperature rise time, constant temperature time, microwave power, reaction process;

Built-in method library in the instrument, which can directly select the calling scheme and store 200 kinds of methods.

Reaction components

Reactor can be equipped with Teflon or high temperature and corrosion resistant glass material, and the volume of the reactor is 250ml;

The reactor can be connected with glass tubing, with an open reaction system, and can be fitted with a dropping funnel and condenser tube, etc. for reflux reaction.

Technical Parameters
Model HX-CW250H
Capacity 250ml
Ultrasonic power 1800W fine adjustable
Ultrasonic horn Standard set include:Φ15
Frequency 20KHZ
Sonicator display True color 7 inch touch capacitive screen high definition display
Sonicator control mode Microcontroller+TFT touch control
Sonicator host material Aluminum alloy+ ABS plastic mold one-time molding
Microwave reaction system complete power 2100W
Maximum output power of microwave reaction system 1000W
Microwave frequency 2450MH, 0-100% power automatically and continuously adjustable
Microwave temperature sensor Wireless Penetrable Infrared Temperature Sensor Sensor
Microwave temperature measurement range 0~350℃
Microwave maximum temperature 250℃
Microwave temperature control accuracy ≤±1℃
Microwave pressure range 0-15Mpa
Microwave pressure control precision ±0.01Mpa
Microwave oven cavity material 316L industrial grade stainless steel one-piece molding
Microwave oven door material Buffer floating design six-layer steel structure furnace door
Working time Continuous work, 0-9999s adjustable
Stirring speed rpm 0~2500rpm

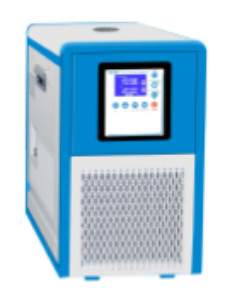

Circulation pump model HXS-0503
Temperature range (℃) -5~100
Digital display resolution (℃) 0.1
Inner tank volume (L*W*D mm) 170*180*130mm
Circulation pump flow rate (L/min) 8L/min
Water filling port (mm) Φ35mm
Total capacity (L) 3.5L
Circulation pump apparatus net weight kg 27.5kg
Circulation pump apparatus size (D*W*H mm) 440*300*510mm
Microwave instrument size (L*W*H mm) 500*480*550mm
Ultrasonic host instrument size (depth*width*height mm) 427*340*168mm
