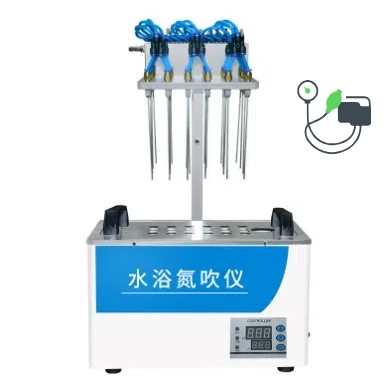

Water Bath Nitrogen Evaporator Adopts Purging And Trapping Technology
Water Bath Nitrogen Evaporator Adopts Purging And Trapping Technology
Specifications
Brand Name :
HUXI
Model Number :
ST-48
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
7-15 days
Packaging Details :
Carton
Model :
ST-48
Item No :
1007006001
Sample quantity :
48
NW(kg) :
8
Heating mode :
Water Bath
Standard heating module :
test tube rack 1pcs
Test tube aperture(mm) :
16.5
Control Temperature accuracy(℃) :
±1
Control Temperature(℃) :
RT-100
Description

High Speed homogenizer

Application:

The nitrogen evaporator independently developed, designed and produced by our company adopts the purging and trapping technology, and at the same time, the sample can be heated under temperature control, and the inert gas such as nitrogen can be used to quickly, controllably and continuously blow it onto the surface of the sample to achieve rapid oxygen-free sample solution. concentrate. This method is time-saving, convenient and accurate. Widely used in food safety, medicine, pesticide residue detection, clinical pharmacokinetics and other fields.

Main Features:

● Each gas needle channel on the distribution chamber can be used in combination or individually, and each gas needle can be switched on and off independently. The height of the distribution room can be adjusted as needed;

● Each gas flow can be adjusted individually to meet the different needs of users.

● Digital temperature controller, dual digital display, PID technology is used for adjustment and over temperature alarm can be realized;

● The parts that may come into contact with the solvent are made of 316 stainless steel, which has a long service life and is easy to clean; the whole machine can be put into a fume hood for use;

● Each model can be equipped with gas flow meter and pressure regulating valve;

● Generally, the standard test tube racks have a diameter of φ15mm, and users with special specifications can pre-order their special diameters and arrangements in advance.

Technical parameters

Model ST-48
Item No 1007006001
Sample quantity 48
NW(kg) 8
Heating mode Water Bath
Standard heating module test tube rack 1pcs
Test tube aperture(mm) 16.5
Control Temperature accuracy(℃) ±1
Control Temperature(℃) RT-100
Nitrogen consumption(ml/min) 330/sample(adjustable)
Barometer(L/min) 0－15
Exterior Dimension(mm) 340*200*460
Power(W) 600
Timer function Yes
