CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine
CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine
CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine
CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine
CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine
CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine
CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine
CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine
CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine
CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine
CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine
CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine
Specifications
Brand Name :
SKYWIN
Place of Origin :
CHINA
Certification :
CE ISO SGS
MOQ :
1 Set
Price :
$37,500.00 / Set
Showroom Location :
None
Voltage :
220-380V/50Hz/60Hz
Power :
8.5KW
Dimension(L*W*H) :
5200mm*3300mm*1300mm
Weight :
750kgs
Warranty :
1 Year
After-sales Service Provided :
Field installation, commissioning and training, Engineers available to service machinery overseas
Machinery Function :
biscuit sandwich making machine
Output product name :
Cream Sandwich Biscuit
Key Selling Points :
High Productivity
Cream motor :
TAIWAN Tunglee
Motor :
TAIDA servo motor
Electric :
Schneider
Application :
Biscuit
Touch screen :
SIEMENS
Material :
304 Stainless Steel
Encoder :
TAIDA
Selling Units :
Single item
Single package size  :
180X120X130 cm
Single gross weight :
950.000 kg
Description

Single Lane Two Colors 3+2 Ice Snack Machine Cream Biscuit Sandwich Making Machine Price

Skywin provide different kind of biscuit sandwich machines.

The biscuit sandwich machine can be filling with chocolate, cream, jam or cheese. It's used for sandwiching for different flavour then transfer to the packing machine automatically.

Energy saving and labor saving.

Product Description

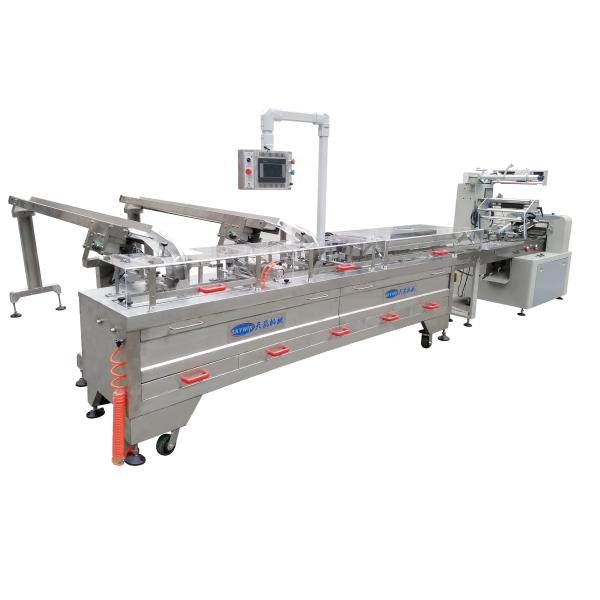

Single Lane Single Color Biscuit Sandwiching(2+1) Machine Connected Flow Packing Machine CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making MachineCE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine

Two Lanes Single Color Biscuit Sandwiching Machine Connected Flow Packing Machine

CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine

Two Lanes 2 Colors Automatic Biscuit Sandwiching Machine with Multiplier

CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine

Technical Parameter:

Single Lane Sandwiching Machine

Two Lane Sandwiching Machine

Mini-type Sandwiching Machine

biscuit size

Square

Rectangle

Square

L(35-70)x W(30-60)x H(3-8)mm

L (35-80) x W(40-65)mm

L (20-35) xW(20-35)xH( 3-7)mm

Round

Round

Round

Φ35-70mm

thickness:3-8mm

Φ35-Φ65mm

thickness:4-8mm

Φ20-35 mm,

thickness:4-7mm

Capacity

100-600

sandwiches/min

600-1200

sandwiches/min

100-400

sandwiches/min

operating voltage

single-phase AC 220V 50Hz

single-phase AC 220V 50Hz

single-phase AC 220V 50Hz

machine size

7000x1900x1470mm

7430x3300x1500mm

4980x1340x1120mm

Weight(Cream tanks

capacity )

 1120kgs (40L) 1350kgs (50L) 1000kgs (36L)

total power

4Kw

4Kw

3.8Kw

Main electric component (Standard type):(can be customized)

CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine

Biscuit Sandwich Stacking Machine (Preparing for packing)

One layer one piece, one layer two piece, one later three piece.

1x2 packets, 2x4 packets, 3x6 packets.

CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine

Cream Supply tank with double jacket wafer heating

Safty production cover

CE Approved Single Lane Two Colors 3+2 Cream Biscuit Making Machine
