Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line
Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line
Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line
Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line
Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line
Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line
Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line
Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line
Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line
Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line
Specifications
Brand Name :
SKYWIN
Place of Origin :
CHINA
Certification :
CE,ISO ,SGS
Supply Ability :
1 Set/Sets per Month Wafer Biscuit Production Line
Packaging Details :
Wafer Biscuit Production Line: WOODEN CASE for Export standard suitable for Seaworthy
MOQ :
1 Set/Sets
Price :
$50,000.00 - $200,000.00 / Set
Applicable Industries :
Food & Beverage Factory
After Warranty Service :
Field maintenance and repair service
Local Service Location :
None
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Not Available
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, Motor, Gear
Voltage :
380
Power :
according to different modle
Dimension(L*W*H) :
according to different modle
Weight :
according to different modle
Warranty :
1 Year
After-sales Service Provided :
Field maintenance and repair service
Application fields :
Snack food factory, Beverage Factory
Raw material :
Milk, Corn, Fruit, Wheat, Nuts, Soybean, Vegetables, Water
Key Selling Points :
Famous brand low voltage components
Condition :
New
Application :
Wafer biscuit
Touch Screen :
Siemens
Converter :
Mitsubishi & Kemron
PLC :
Mitsubishi
Gas system :
Italy Madas
Bearing :
High Temperature SKF
Motor :
Chinese brand,/SEW.
Gearbox :
Chinese brand,/SEW.
Switch :
Schneider
Port :
Shenzhen Port
Description

Product Description

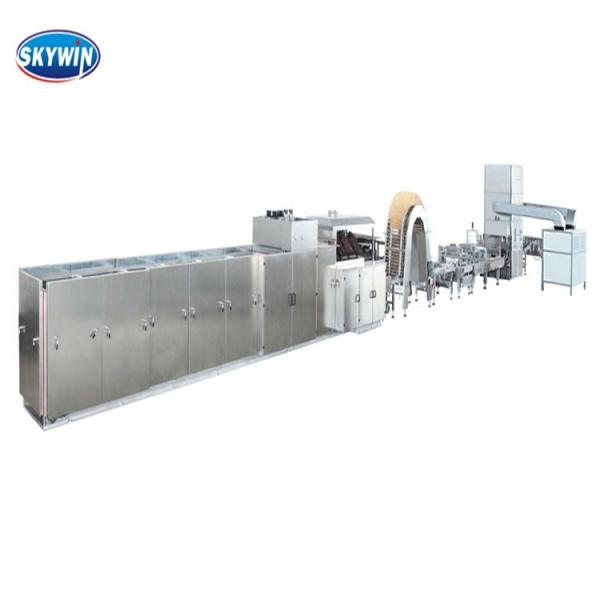

Skywin Wafer Biscuit Production Line


Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line

1. Reliable performance, stable operation, long service life. All motor, electrical equipment ,PLC, bearing adopts international and Chinese famous brand

2. Reasonable layout, compact structure, small occupation, the body length of the baking oven is only 2/3 of the same type of product.

3. High automatic, stand-alone machine can be controlled separately, simple operation and easy maintenance

4. High demoulding rate and finished product rate of no less than 98%

5. Special energy conservation design, low energy cost, can reduce pollution to an extreme

6. Machines’ material comply with food hygiene standard, all parts which is connected with food are adopt stainless steel

7 Gas or electric oven , capacity can be design depend on customer's require

Main Technical and Requirements:

1. The whole shell of the production line adopts 304 Stainless Steel in accordance with the health and safety standard.

2. The electricity and transmission components are all used Siemens ,Mitsubishi ,touch screen to ciontrol and adopts the Interenational Brand Germany SEW,SKF to make the whole line steadily.

3. In according to the clients ' requirements ,we can make a wide range of size and shape cream (chocolate ) filled wafer biscuit full automatically.

Technical Data

mould

27

31

33

39

45

51

65

69

71

Baking Oven Length(mm)

6000

6750

7150

8300

9450

10600

13300

14000

14400

Whole Line Length(mm)

22000

22750

23150

24300

25450

26600

29300

30000

30400

Power (kW)

5.52

5.52

5.52

5.52

5.52

5.52

5.52

5.52

5.52

LPG(kg/h)

13

15

15

19

23

27

32

35

37

LNG(m3/h)

16

19

21

25

30

35

45

47

50

Electrical Heating Power(kW)

90

105

110

130

150

170

215

230

235

Capacity(pcs/min)

14

16

17

20

23

26

33

35

36

Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line

Other required:

· Gas system use MADAS from Italy

·Two colors cream spreading machine

· Vertical cooling tower is 4 layers

· Motor: SEW

·Cutting machine will cut by width 470mm, not by length 325mm

· Plates Coated hard chrome thickness 0.3-0.5mm Grids 2.5x2.5x0.5mm ( design confirm by customer)

· Electric controlled by SIEMENS with save card

· Two Chimney and air blowers as customer requested

PROCESSING CHART

Mixing Baking——Cream Spreading——Laminating——Cooling——Wafer bar Cutting & Wrapping——Packing

FAQ

1, Which country are you ever exported

Bangladesh , Egypt , Nigeria, Russia, Thailand, South Africa, Mexico, Macedonia ,Venezuela ,Algeria

2,Why you choose us ?

A, Excellent biscuit equipment design and structure

Advance machine design ,appearance more beautiful, improve our machine continuous , pursue perfect

B, Turnkey project

From raw material to packing ,various option machine to meet different customer require

C: Design as per customer require

We will as per customer require ,budget to design proposal or give some suggestion

D: Satisfy after sale service

Provide on time and good service ,help customer save problem in time .

Packaging & Shipping

Our regular packaging is multilayer packing, safe transport, shipping by sea:

Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).

Step 2: The plastic cushion packing machine (prevent bump).

Step 3: Plastic film packaging (to prevent ventilation).

Step 4: Wooden case / frame packaging (easy to transport).

Step 5: Tie the bandage outside of the wooden case (reinforcement overall).

Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line

Our Services

1.Guaranteed 1 year , long time maintain , accessories change , not including easy broken part

2.If need , send engineer to installation ,teach how to operation machine and training workers

3.Provide recipe free to customer, produce biscuit

4.Design layout and proposal as per customer factory size

Company
Mitsubishi PLC 39 Mould 45 Mould Waffle Production Line

Skywin Foodstuff Machinery Co.,Ltd. was established in 2010 as a manufacturer, which specialized in biscuit production lines and cookie production lines and wafer biscuit production lines.

Skywin provide one-stop solution and service from biscuit production to biscuit sandwiching, biscuit chocolate enrobing and biscuit packing. Fully automatic by PLC control.

We will supply professional consulting services used in the industry of biscuit production, as well as the most suitable design proposal and quality machines.
