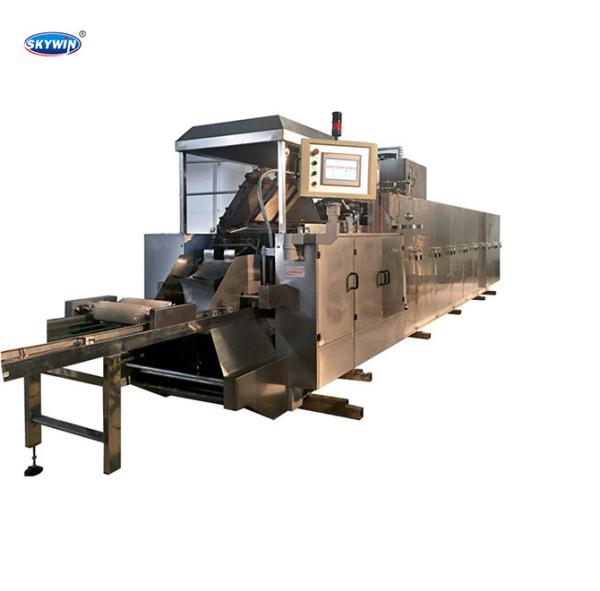

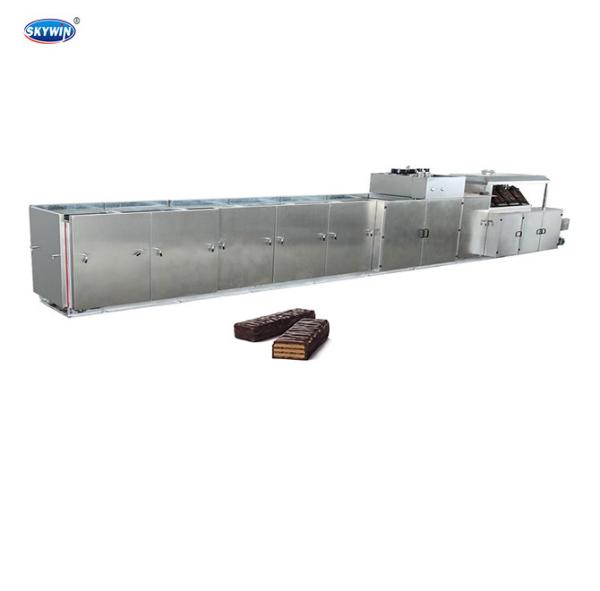

Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
Specifications
Place of Origin :
China
Brand Name :
skywin
Certification :
CE,SGS
Supply Ability :
100 Set/Sets per Month Wafer biscuit machine
Packaging Details :
WOODEN CASE for Export standard suitable for Seaworthy
MOQ :
1 Set/Sets
Price :
$55,000.00 - $200,000.00 / Set
Applicable Industries :
Food & Beverage Factory
After Warranty Service :
Field maintenance and repair service
Local Service Location :
None
Showroom Location :
Nigeria
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Motor
Condition :
Used
Voltage :
220v/50hz
Power :
52kw
Weight :
2600kgs
Dimension(L*W*H) :
506000*1200*1500mm
Year :
2020
Warranty :
1 Year
After-sales Service Provided :
Field installation, commissioning and training
Key Selling Points :
Long Service Life
Touch Screen :
Siemens
Converter :
Mitsubishi & Kemron
PLC :
Mitsubishi
Gas system :
Italy Madas
Bearing :
chinese famous brand
Switch :
Schneider
Button :
Schneider
Gearbox :
chinese famous brand
Motor :
chinese famous brand
Transducer :
Chinese famous brand
Port :
Shenzhen Port
Description

Product Description

Chocolate Wafer Bicuit Making Lines Production Plant


Long Service Life Mitsubishi PLC Wafer Biscuit Production Line

1. Reliable performance, stable operation, long service life. All motor, electrical equipment ,PLC, bearing adopts international and Chinese famous brand

2. Reasonable layout, compact structure, small occupation, the body length of the baking oven is only 2/3 of the same type of product.

3. High automatic, stand-alone machine can be controlled separately, simple operation and easy maintenance

4. High demoulding rate and finished product rate of no less than 98%

5. Special energy conservation design, low energy cost, can reduce pollution to an extreme

6. Machines’ material comply with food hygiene standard, all parts which is connected with food are adopt stainless steel

7 Gas or electric oven , capacity can be design depend on customer's require

Technical Data

mould

27

31

33

39

45

51

65

69

71

Baking Oven Length(mm)

6000

6750

7150

8300

9450

10600

13300

14000

14400

Whole Line Length(mm)

22000

22750

23150

24300

25450

26600

29300

30000

30400

Power (kW)

5.52

5.52

5.52

5.52

5.52

5.52

5.52

5.52

5.52

LPG(kg/h)

13

15

15

19

23

27

32

35

37

LNG(m3/h)

16

19

21

25

30

35

45

47

50

Electrical Heating Power(kW)

90

105

110

130

150

170

215

230

235

Capacity(pcs/min)

14

16

17

20

23

26

33

35

36

Long Service Life Mitsubishi PLC Wafer Biscuit Production Line


Detailed Images

1.Wafer Batter Mixer

Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
Function: Makes the batter for the system to produce the wafers.

(1) This system constitutes of: batter mixing tank , batter storage tank , pumps and fittings for transferring batter.

(2) All adopt Stainless Steel food quality material.

(3) Capacity of the batter will be 25kgs of flour per batch which can be converted into about 65 kg batter within 5 minutes of mixing.

(4) Batter Mixer will have flat type lid to cover the mixing units.

2.Baking oven
Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
(1) The wafer baking system uses LPG or LNG for heating of the baking plates.

(2) The function of the baking oven is fully automatic from spreading batter on the plates through until baked wafer sheets come out of the oven.

(3) In PLC there is PID controller which is used for controlling the temperature of the baking plates automatically .

(4) The oven status display and the data reset are supplied by a touch screen, all motor have the starting current protection and thermal overload protection.

(5) The oven with automatic transport system of scrubs from batter mixer to storage tank of oven .

(6) Plates and products cleaning by air cylinder.

3.Sheet Receiver

Long Service Life Mitsubishi PLC Wafer Biscuit Production Line

FAQ

1, Which country are you ever exported

Bangladesh , Egypt , Nigeria, Russia, Thailand, South Africa, Mexico, Macedonia ,Venezuela ,Algeria

2,Why you choose us ?

A, Excellent biscuit equipment design and structure

Advance machine design ,appearance more beautiful, improve our machine continuous , pursue perfect

B, Turnkey project

From raw material to packing ,various option machine to meet different customer require

C: Design as per customer require

We will as per customer require ,budget to design proposal or give some suggestion

D: Satisfy after sale service

Provide on time and good service ,help customer save problem in time .

Our Services

1, Guaranteed 1 year , long time maintain , accessories change , not including easy broken part

2,If need , send engineer to installation ,teach how to operation machine and training workers

3, Provide recipe free to customer, produce biscuit

4, Design layout and proposal as per customer factory size

Company Information

Long Service Life Mitsubishi PLC Wafer Biscuit Production Line
