Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine
Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine
Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine
Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine
Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine
Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine
Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine
Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine
Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine
Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SkywinBake
Certification :
CE/SGS/ISO
Supply Ability :
2 Unit/Units per Month mini cookie machine
Packaging Details :
Wooden case for export standard suitable for seaworthy
MOQ :
1 Unit/Units
Price :
$7,500.00 - $25,000.00 / Unit
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Condition :
New
Voltage :
220-380v/50hz
Power :
4.3kw
Weight :
450kgs
Dimension(L*W*H) :
1950x1350x1050mm
Warranty :
1 Year
After-sales Service Provided :
Field installation, commissioning and training, Engineers available to service machinery overseas
Key Selling Points :
Famous brand PLC
Electric & Motor :
SIEMENS
Material :
Stianless steel 304#
Greabox :
Chinese famouse brand
Motor :
Chinese Brand
inverter :
SIEMENS PLC
Conveyor belt :
Cotton and PU
Automatic :
PLC controlled
Type :
Tray Type
Description

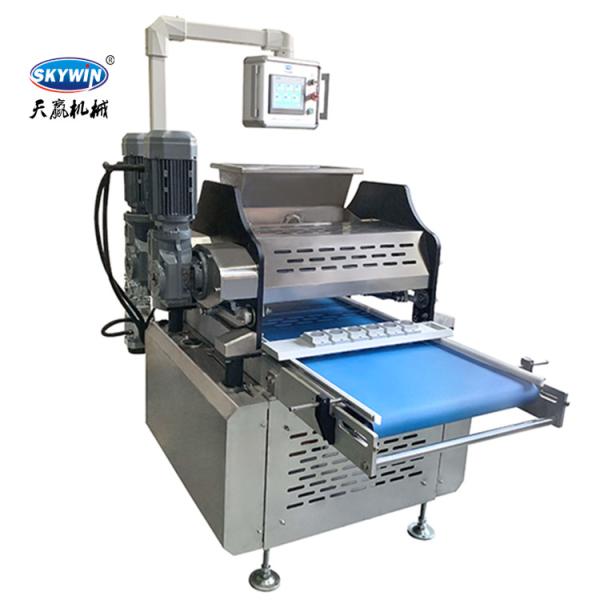

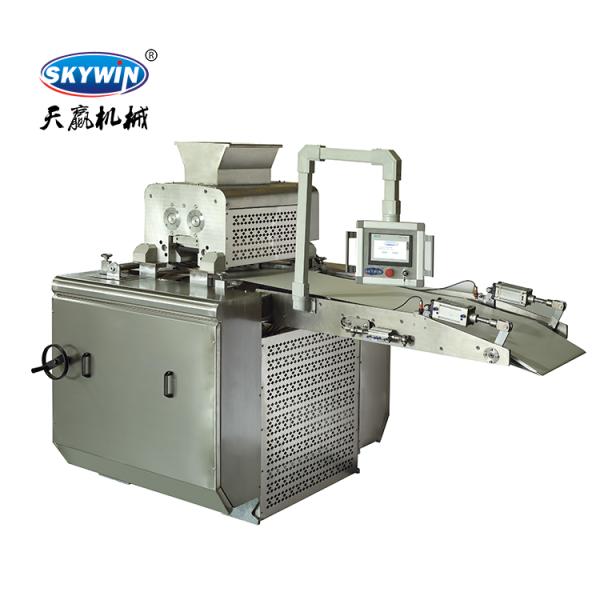

Top Quality Butter Jenny Cookies Depositor Machine Automatic Making

Functions of product

This machine is a multifunction cookies forming machine and suitable for making wire-cut cookies, depositor cookies and cupcake cookies, it can successfully perform wire-cut, deposit and twist in one hopper, change mould accordingly,save place.

Specification :

Working width: 400mm

Speed: 0~45time/min

Capacity: 80 ~ 100Kg/H

Dimension: 1450*1350*1050mm

Voltage: 220V/50Hz

Power: 2.3kw

Weight: 390kgs

Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine

Autoamtic food drop cookies machine

² With Wire-cut and Depositor two functions.

² Servo motor control

² Conveyor PU belt (belt with guide), a thickness of 1.4mm;

² Reducer selection of RV reducer, with high transmission efficiency, low noise,

smooth operation, etc.;

² Servo motor selection Adtech famous brand, with low noise, high efficiency,

long life and other advantages;

² Conveyor drive roller adopt Nylon rubber material, Pu with a non-toxic

oil-resistant material;

² Conveyor plate 201# stainless steel

² Cover by 1.2mm thickness 201 # stainless steel ;

² Electrical control: touch screen control, electrical control components using Schneider Brand

.

Product Description

Feeding roll diameter 130mm, aluminum casting, with groove;

Dynamic structure, feeding servo power 3kw, rotary servo 0.55kw, swinging servo 1.5kw, up and down;

Provided two sets of wire cut cookies moulds, one set of deposit mould

Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine

Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine

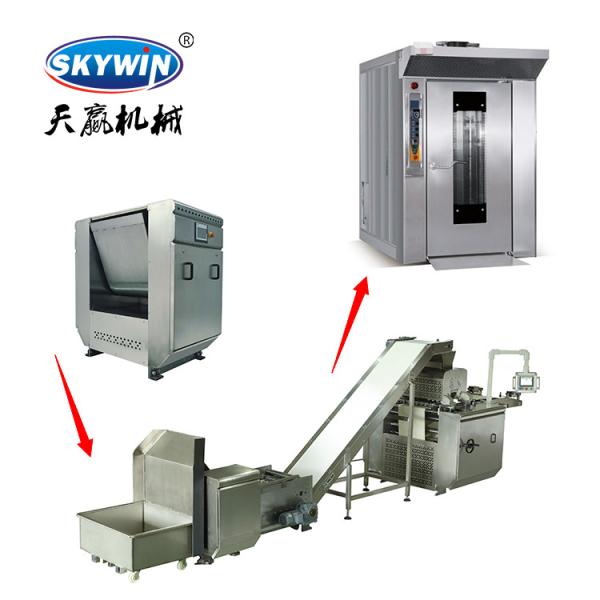

Company profile:

Skywin Foodstuff Machinery Co., Ltd established in 2000, and it is a manufacturer

which specilized in the fully automatic high quality Biscuit Production Line. We provide

One-stop solution and service from biscuit production to biscuit sandwiching, biscuit

chocolate enrobing and biscuit packing,also we have resolved the biscuit sandwiching

machines automatic connect the packaging machines and biscuit line to connect packaging

machines, all operation is full automatic PLC controlled.We will supply professional consulting

services for machines used within the industry of biscuit production, as well as the most suitable

design proposals and qualified machines.

Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine

Working Width 400mm 100Kg/H Butter Jenny Cookie Depositing Machine

Pre-Sales Service After-Sales Service

* Inquiry and consulting support. * Training how to instal the machine
* Provide the best biscuit production line plant * Training how to use the machine

according to your capacity, biscuits types, * Engineers available to service machinery overseas.

factory size, row material price * Supply the receipes for biscuit prodcution line

* Advanced design on oven, to make high quality biscuit
