Fully Automatic Hello Panda Biscuit Injection Machine For Chocolate Cream Jam Injecting
Fully Automatic Hello Panda Biscuit Injection Machine For Chocolate Cream Jam Injecting
Fully Automatic Hello Panda Biscuit Injection Machine For Chocolate Cream Jam Injecting
Fully Automatic Hello Panda Biscuit Injection Machine For Chocolate Cream Jam Injecting
Fully Automatic Hello Panda Biscuit Injection Machine For Chocolate Cream Jam Injecting
Fully Automatic Hello Panda Biscuit Injection Machine For Chocolate Cream Jam Injecting
Fully Automatic Hello Panda Biscuit Injection Machine For Chocolate Cream Jam Injecting
Fully Automatic Hello Panda Biscuit Injection Machine For Chocolate Cream Jam Injecting
Specifications
Brand Name :
SKYWIN
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
$20,000.00-$40,000.00/Set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
20 Set/Sets per Month
Delivery Time :
45 days
Packaging Details :
The machine shall be packaged by wooden cases, which are suitable for long distance transportation and seaworthy.
Product Name :
Biscuit injecting making machine
Material :
304 Stainless Steel
Automatic :
PLC Controlled
Bearing :
NSK brand
Air cylinder :
AirTAC brand
Transducer :
Siemens
Capacity :
700 piece/min
Function :
Multifunctional
Description
Product Description

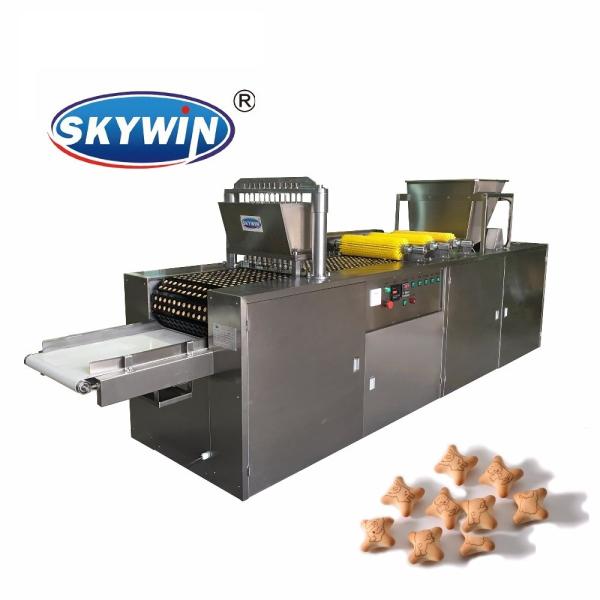

Hello Panda Biscuit Injection Machine
Hello panda biscuit also called center filled biscuit. It is a hard dough biscuit which is hollow inside and pattern print on the top. This kind of biscuit are often filled with chocolate and fruit-flavored cream in the center. Handmade hello biscuit are difficult to bubble and low production. To mass-produce the hello panda biscuit, it must rely on an automatic biscuit production line. The hello panda biscuits we see in supermarkets today are all made by fully automated biscuit production lines.
Full set of automatic biscuit production line including: Dough mixer, Dough cutting machine with conveyor, Cut sheet laminator, Gauge rolls, Rotary cutter, Separate machine, Enter stove, Hybrid gas baking oven, Out stove, Cooling conveyor, cream/chocolate injection machine.
Performance and Structure features:
1.Compact structure, stable performance, easy operation.
2.Suitable for production of diverse varieties.
3.Heat preservation, low noise.
4.Stepless motor adjustable.
5.Auto biscuit feediing and injecting (adjusted chocolate quantify).
* The video and pictures are for reference only
Specification
Cream Chocolate Injection machine
Voltage
380 V / 3phases
Power
10kw
Weight
1100kg
Dimension
3900mm*950mm*1500mm
Output
726pcs/min (2 rows x 11needles)
Injected speed
33 times/min
Conveyor belt
Aluminium alloy, hole sized diameter 26mm- 32mm
Chocolate/cream hopper
double jacket heating water protect temperature
Packing & Delivery
Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
Company Profile
Skywin Foodstuff Machinery Co., Ltd. was established in 1983 and is a manufacturer specialized in the fully automatic high quality Biscuit Production Lines and Cookie Production Lines. We provide One-stop solution and service from biscuit production to biscuit sandwiching, biscuit chocolate enrobing and biscuit packing. All operation is fully automatic PLC controlled. We will supply professional consulting services for machines used in the industry of biscuit production, as well as the most suitable design proposals and quality machines.
Perfect Solution of Biscuit Production & One-stop Procurement Service:
Biscuit production lines; Biscuit sandwiching and automatic connection packaging machines; Biscuit coating chocolate machines; Biscuit packing solutions; Cookies production lines ; Wafer biscuit production lines.
Proposal Design:
The most appropriate solution will be supplied based on plants' requirements, production capacity, automation and cost efficiency.
Technzical Support:
Provide the technical support according to the customers' requirement.
Erection & Commissioning:
Our processional technicians, quick responses and optimum service attitude can help finish the
installation in a short time.

After-sales service:
Professional engineers provide the best service, Maintenance of the equipment and the production of biscuits.

Selecting & Purchasing:
According to the requirements for automation and quality, equipment of best performance (domestically) and the highest performance - price ratio will be supplied to customers.
Certifications
Our machines was approve Certificate of CE certificate, Utility Model Utility Patents and Certificate of Design Patent. We obtained 12 National Patent, 8 for biscuit machine and 4 for sandwich biscuit machine connected packing system.
