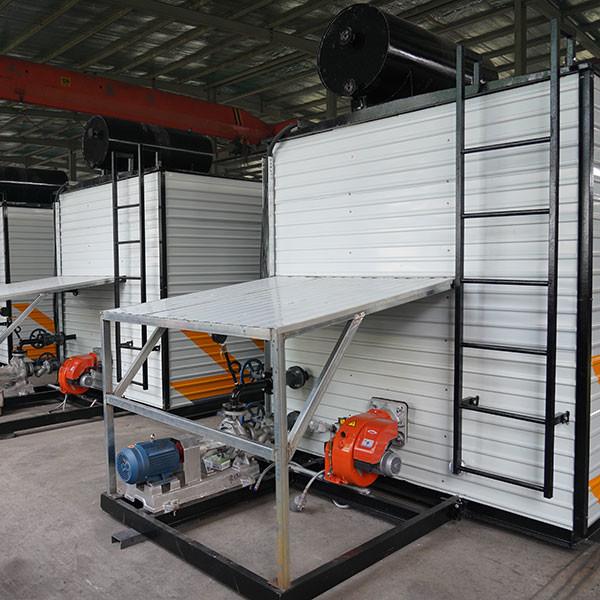

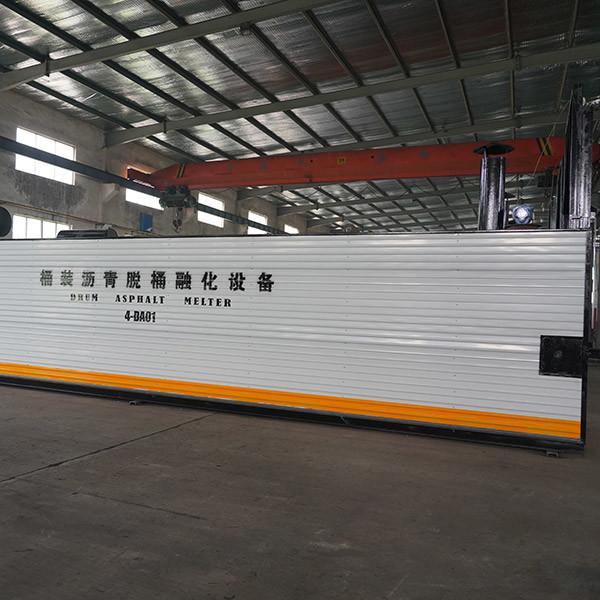

Steel Plate Flue Heating And Thermal Oil Coils Heating Drum Bitumen Melter

Description

Bitumen melter(drum packing or bag packing) is mainly composed of melting tank, electric gate, asphalt (drum or bag) loading trolley, trolley drive system, thermal oil heating system, exhaust heating system, asphalt pump and pipeline system, electrical control system, etc.

The melting tank looks like a container, its chamber is consist of upper half and bottom half. The upper half is applied to heat up bitumen drums with bottom heat transfer oil coils, and make asphalt outflow from the drums. The bottom half is a storage tank with heat transfer oil coil and exhaust flues for heating and storing hot bitumen. Finally pump the bitumen into another storage thank or application machine when bitumen temperature arrive 110 degree.

Drummed bitumen melter (with self heating) components

Bitumen melter(drum packing or bag packing) is mainly composed of melting tank, electric gate, asphalt (drum or bag) loading trolley, trolley drive system, thermal oil heating system, exhaust heating system, asphalt pump and pipeline system, electrical control system, etc.

Bitumen melter operation process

The trolley will be with uniformly distributed barrel holes, which facilitates accurate position of each barrel when loading the barrel(it could be taken apart when loading bag asphalt). The trolley and the transmission system are responsible for pushing the heavy drums in and pulling the empty drums out after melting.

With self double heating systems, easy to be transferred, heating speed fast.

Intermittent production batch by batch.

Features

1. Cart structure

The bitumen melter adopts the sealed container structure with electric lifting door. The bitumen melter has the beautiful appearance, reasonable arrangement and compactness, convenient and high production efficiency, stable and reliable performance and suitable for production under various working conditions.

2. Strong carrying capacity

CYLT trolley can load 44 drums at one time. Or 10 pieces asphalt bags, each bag 1 m3, utmost capacity 15 tons.

3. Strong adaptability

The bitumen melter is suitable for barrel shape of various specifications, and the deformation of asphalt barrel does not affect production.

Our advantages

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, mainly including asphalt melting equipment for drum/box/bag packing, asphalt tank, asphalt emulsion equipment and asphalt sprayer, also we have the big advantages as below,

1. Independent design and professional manufacturer.

2. Production capacity over 200 sets per year.

3. All equipments with compact structure, suitable for container load.

4. Select premium steel with high quality.

5. Complete production control with detailed record and video.

6. Our factory had passed ISO system authentication, including ISO9001, ISO 14001, OHSAS18001.

7. We manufacture our standard equipment, also welcome OEM and ODM.

Our service

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, you may get as below,

1. Design drawing as your requirement

2. Equipment solution as your real condition

3. Quality equipment as your order

4. Quick response as your time

5. Fast delivery as your demand

6. Complete warranty as your expect

Quality product, quick response and cost saving.

Delivery and shipping

1. Production time around 5-15 days per set

2. Suitable for 40 HQ container loading

3. Trade terms EXW, FOB, CFR, CIF

After sale service

1. Warranty one year

2. Online support service and video technical support

3. Free spare parts

4. Field installation, commissioning and training, field maintenance
