Patent Drum Turnover Device Asphalt Melting Machine With Container Loading

Description

Drummed asphalt melter is composed of bitumen melting tank, lifting device, tipping device, hydraulic propelling system, heat transfer oil heating system, bitumen pump and pipeline, liquid level warning system and electric control system, etc.

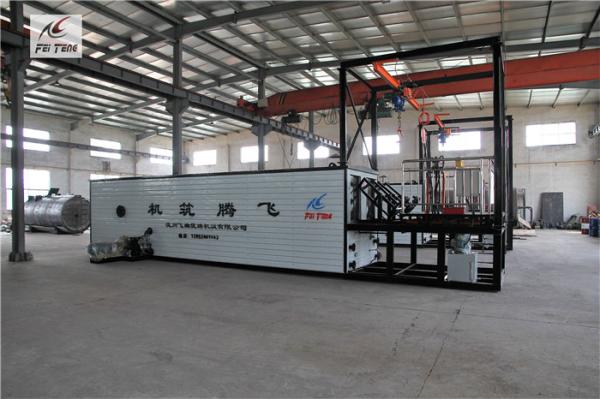

Drummed asphalt melter lifting device adopt suspension structure, which lift the bitumen barrel with electric hoist and load it onto the tipping device. The tipping device then turn over the bitumen barrel bottom up on the rails pallet, and the hydraulic propelling system will push it into up tank. All the mentioned actions are operated on the integrated electric controller.

The melting tank looks like a container, its chamber is consist of upper half and bottom half. The upper half is applied to heat up bitumen drums with heat transfer oil coils, and make asphalt outflow from the drums. Hydraulic propelling system push the barreled bitumen into tank via two rails, the newly entered barrel pushed empty barrel out from the other end. The bottom half is a storage tank with heat transfer oil coil for heating and storing hot bitumen. Finally pump the bitumen into another storage thank or application machine when bitumen temperature arrive 110 degree.

Bitumen drum melter components

The equipment mainly consists of melting tank, lifting system, tipping devices, asphalt drum plate, dripping asphalt collect system, hydraulic propulsion system, thermal oil heating system, bitumen pump, pipe system, and electric control system.

Working principle

The equipment adopts automatic spring door sealed box structure. The drum is lifted by electrical hoisting. The hydraulic propeller pushes drum plate into the melter, and using the hot thermal oil from external boiler as the heating source.

Continuous production one full drum in and one empty drum out from the other end.

Features

1. The drums loading operation is made by the electric lifting system. The empty drums are pushed out on the back side.

2. The heating required to melt the bitumen is provided by heat conducting oil.

3. The equipment consists of upper and lower two rooms, the upper one for melting the bitumen barrels, surrounded by evenly distributed thermal oil coils, heating coils and asphalt barrel mainly using the thermal radiation heating mode to melt the bitumen from the barrels. The lower room is mainly for increasing the heating temperature of the bitumen that melted from the barrels till reach to (110 degree), then Bitumen outlet pump will transfer the bitumen outside to be ready for use if extend the heating time can be obtained a higher temperature to (160 degree).

4. Easy to put the barrels inside the equipment without any platforms with high efficiency.

5. No need for trolley or any wrench to carry the barrel inside the plant.

6. Simple structure, with automatic spring door, easy to maintain.

7. Environmental protection and good, enclosed structure, no pollution.

8. Facilitate the relocation: container structure assembled quickly.

Our advantages

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, mainly including asphalt melting equipment for drum/box/bag packing, asphalt tank, asphalt emulsion equipment and asphalt sprayer, also we have the big advantages as below,

1. Independent design and professional manufacturer.

2. Production capacity over 200 sets per year.

3. All equipments with compact structure, suitable for container load.

4. Select premium steel with high quality.

5. Complete production control with detailed record and video.

6. Our factory had passed ISO system authentication, including ISO9001, ISO 14001, OHSAS18001.

7. We manufacture our standard equipment, also welcome OEM and ODM.

Our service

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, you may get as below,

1. Design drawing as your requirement

2. Equipment solution as your real condition

3. Quality equipment as your order

4. Quick response as your time

5. Fast delivery as your demand

6. Complete warranty as your expect

Quality product, quick response and cost saving.

Delivery and shipping

1. Production time around 5-15 days per set

2. Suitable for 40 HQ container loading

3. Trade terms EXW, FOB, CFR, CIF

After sale service

1. Warranty one year

2. Online support service and video technical support

3. Free spare parts

4. Field installation, commissioning and training, field maintenance
