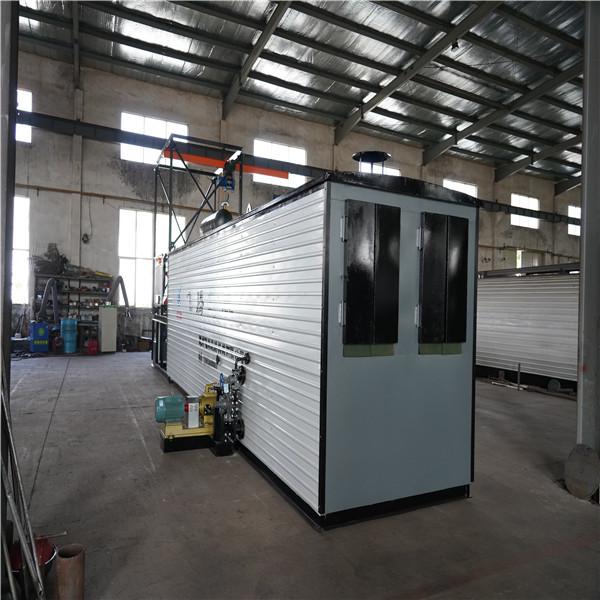

Carbon Steel Flue Heating And Thermal Oil Heating Drummed Asphalt Melter For Asphalt Mixing Plant

Description

YDST series bitumen melting machine, with self heating system, which consists of melting tank, diesel oil burner, turnover device and electrical apparatus control system. The asphalt melting tank is divided into two chambers. The upper one is melting chamber for barrel bitumen, the heating coil exchange heat with asphalt barrel in radiation way to achieve the purpose of asphalt melting. The lower chamber keeps up heating to bitumen to reach the temperature of suction pump(100 degree), then the bitumen pump pumps the bitumen into bitumen storage tank, if increasing the heating time, you can get higher temperature.

Main components include,

diesel oil burner

bitumen melting tank

lifting device

tipping device

hydraulic propelling system

heat transfer oil heating system

bitumen pump and pipeline

liquid level warning system

electric control system

Operation process

The equipment adopts automatic spring door sealed box structure. The drum is lifted by electrical hoisting. The hydraulic propeller pushes drum plate into the melter, and using the diesel oil burner as the heating source.

With self double heating systems, easy to be transferred, heating speed fast.

Continuous production one full drum in and one empty drum out from the other end.

Features

Easy to use machine.

Easy to assemble and disassemble.

Effortless loading of drums by electric lifting.

Can be applied and integrated in any system and can be used to fill any awaiting tank / vehicle.

Main body where heating takes place is fully insulated by rock wool from all the sides.

Upper part is melting zone and the lower part is for sufficient storage of liquid bitumen.

Bitumen tanks can be supplied and integrated with the same for additional storage of bitumen.

Easy to use equipment even with less labour.

Works fine even if the drums are out of shape.

Our advantages

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, mainly including asphalt melting equipment for drum/box/bag packing, asphalt tank, asphalt emulsion equipment and asphalt sprayer, also we have the big advantages as below,

1. Independent design and professional manufacturer.

2. Production capacity over 200 sets per year.

3. All equipments with compact structure, suitable for container load.

4. Select premium steel with high quality.

5. Complete production control with detailed record and video.

6. Our factory had passed ISO system authentication, including ISO9001, ISO 14001, OHSAS18001.

7. We manufacture our standard equipment, also welcome OEM and ODM.

Our service

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, you may get as below,

1. Design drawing as your requirement

2. Equipment solution as your real condition

3. Quality equipment as your order

4. Quick response as your time

5. Fast delivery as your demand

6. Complete warranty as your expect

Quality product, quick response and cost saving.

Delivery and shipping

1. Production time around 5-15 days per set

2. Suitable for 40 HQ container loading

3. Trade terms EXW, FOB, CFR, CIF

After sale service

1. Warranty one year

2. Online support service and video technical support

3. Free spare parts

4. Field installation, commissioning and training, field maintenance
