1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine
1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine
1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine
1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine
1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine
1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine
1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine
1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine
Specifications
Brand Name :
Junqi
Model Number :
JQM-46SW370
Certification :
CE,ROHS, UL
Place of Origin :
China
MOQ :
50pcs
Price :
USD5-usd8/pc (Negotiable)
Payment Terms :
L/C, T/T, Western Union,PAYPAL
Supply Ability :
10000PCS/Month
Delivery Time :
as confirmed
Packaging Details :
suite for export
Product Name :
DC Worm Gear Motor
Commutation :
Brush
Model :
JQM-46SW370
Speed :
0.5~123rpm
Voltage :
6V~24V
Torque :
0.3~15kgf.cm
Power :
0.3~3W
Construction :
Permanent Magnet
Diameter :
46*32mm
Protect Feature :
Totally Enclosed
Efficiency :
IE4
Application :
BOAT, Car, Electric Bicycle, FAN, Home Appliance
Description
24V 1N.m High Torque Small DC Worm 46mm Gearbox Motor JQM-46SW370 For Medical Machine

Driving Motor Data:

Motor model Rated Volt. No load Load Stall
Current Speed Current Speed Torque power Torque Current
V mA rpm mA rpm gf.cm W gf.cm mA
JQM-3700065000 6 ≤45 5000 ≤240 4200 20 0.88 ≥112 ≥1100
JQM-3700126000 12 ≤42 6000 ≤150 5000 20 1.05 ≥108 ≥980
JQM-37001212000 12 ≤90 12000 ≤520 10300 28 3.00 ≥177 ≥2500
JQM-3700246000 24 ≤21 6000 ≤110 5100 21 1.12 ≥126 ≥440
JQM-3700249000 24 ≤43 9000 ≤210 7800 27 2.20 ≥182 ≥950

Technical Data of Gearbox:

Reduction Stage 3 4 5
Reduction Ratio 79K, 108K 241K, 364K, 471K, 540K, 653K, 788K, 1013K, 1420K 3038K
Gearbox Efficiency 73% 65% 59%

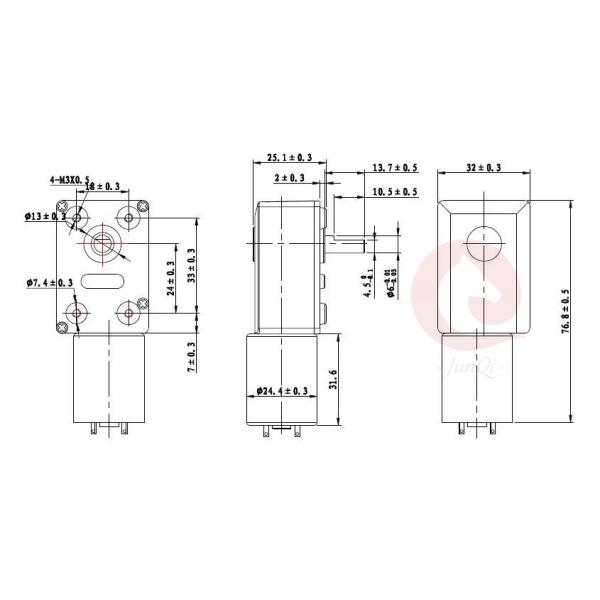

Gear Motor Mechanical Size:

1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine

Gear Motor Electric Data:

Model Number Rated Volt. No Load At Max Efficiency Stall
Speed Current Speed Current Torque Power Current Torque
rpm mA rpm mA Kgf.cm W mA Kgf.cm
JQM-46SW3700063000-69K 6V 43 ≤50 34 ≤180 0.3 0.10 ≥420 1
JQM-46SW3700063000-100K 6V 30 ≤50 22 ≤180 0.35 0.08 ≥410 1.3
JQM-46SW3700066000-109K 6V 55 ≤140 45 ≤480 0.5 0.23 ≥1100 3
JQM-46SW3700063000-180K 6V 17 ≤50 14 ≤150 0.6 0.09 ≥380 2.4
JQM-46SW3700068500-330K 6V 25 ≤160 19 ≤650 2 0.39 ≥1600 7.8
JQM-46SW3700065000-950K 6V 5.2 ≤65 4.3 ≤260 3 0.13 ≥830 13.5
JQM-46SW3700062500-1650K 6V 1.5 ≤55 1.2 ≤120 5 0.06 ≥370 22
JQM-46SW3700063200-5300K 6V 0.6 ≤60 0.5 ≤220 15 0.08 ≥400 38
JQM-46SW3700125700-69K 12V 82 ≤82 52 ≤550 0.6 0.32 ≥780 2
JQM-46SW3700126000-69K 12V 86 ≤85 65 ≤400 0.85 0.57 ≥1150 3.5
JQM-46SW3700128500-100K 12V 85 ≤50 75 ≤240 0.42 0.32 ≥1150 2.8
JQM-46SW3700128300-255K 12V 32 ≤70 28 ≤300 1.7 0.49 ≥1100 9.9
JQM-46SW3700126500-330K 12V 20 ≤80 16 ≤300 2.5 0.41 ≥700 9
JQM-46SW3700126500-950K 12V 6.8 ≤50 5.6 ≤300 5.5 0.32 ≥1060 28
JQM-46SW3700123000-1650K 12V 1.8 ≤60 1.4 ≤110 6.2 0.09 ≥250 25
JQM-46SW3700248500-69K 24V 123 ≤70 87 ≤550 2 1.79 ≥1200 6.2
JQM-46SW3700248500-180K 24V 47 ≤40 43 ≤160 1.1 0.49 ≥670 7.2
JQM-46SW3700248500-330K 24V 25 ≤40 23 ≤180 2.3 0.54 ≥690 13
JQM-46SW37002410000-1650K 24V 7 ≤70 5.8 ≤280 11.5 0.68 ≥8600 53
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...
Welcome OEM or ODM projects

Notes: Above is our standard models for your reference, we can make as customer request.

Professional Factory:

1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine

Certificate Photos :

1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine

Packing:

1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine

Transportation:

1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine

Motor Application Fields:

1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine1N.M 24VDC Geared Motors Worm 46mm Gearbox Motor For Medical Machine

FAQ:

Q: How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit

Q: What is your trade Assurance?

A: 100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q: Do You Make Customized Product?

A: Yes,We Accpet IT.

Q: About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q: What is the payment term?

A: T/T and Paypal is used more,please contact us for details

Q: What is the quality level of your product?

A: We produce good quality, refuse to produce low quality.
