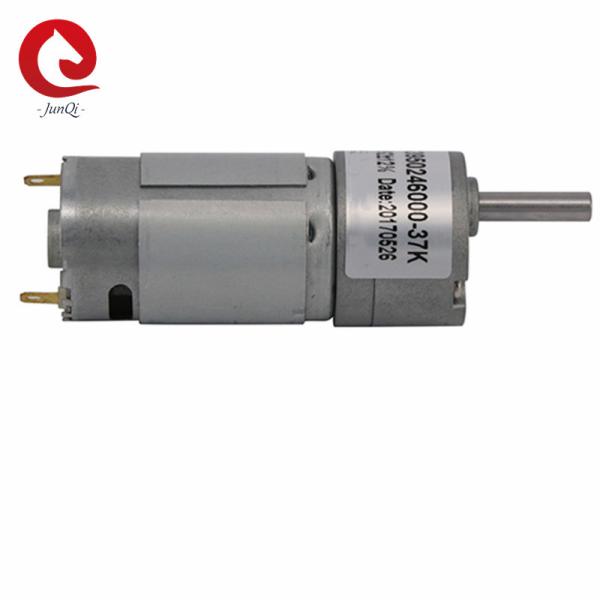

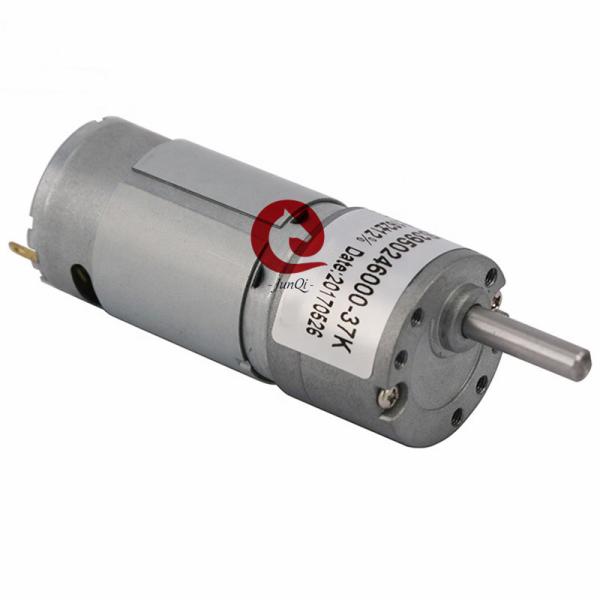

5kg.cm Speed Reduction DC Geared Motors
5kg.cm Speed Reduction DC Geared Motors
5kg.cm Speed Reduction DC Geared Motors
5kg.cm Speed Reduction DC Geared Motors
5kg.cm Speed Reduction DC Geared Motors
5kg.cm Speed Reduction DC Geared Motors
5kg.cm Speed Reduction DC Geared Motors
5kg.cm Speed Reduction DC Geared Motors
Specifications
Brand Name :
Junqi
Model Number :
JQM-30RS395
Certification :
CE,ROHS, UL
Place of Origin :
China
MOQ :
50pcs
Price :
USD4-usd7/pc (Negotiable)
Payment Terms :
L/C, T/T, Western Union,PAYPAL
Supply Ability :
10000PCS/Month
Delivery Time :
as confirmed
Packaging Details :
suite for export
Product Name :
DC Gear Motor
Commutation :
Brush
Model :
JQM-30RS395
Speed :
3~362rpm
Torque :
0.5~5kg.cm
Construction :
Permanent Magnet
Diameter :
30mm
Protect Feature :
Totally Enclosed
Efficiency :
IE2
Application :
BOAT, Car, Electric Bicycle, FAN, Home Appliance
Description
JQM-30RS 395 DC Gearbox Speed Reduction Motor, High Torque Small Reudcer For Safe Box Lock

1. Main voltage: 3V, 6V, 12VDC, 24VDC
2. Typical applications: Automatic door-lock, projector, hairdressing equipment
3. Round Gearbox size: φ30mm*L
4. Torque: 0.5-10kgf.cm
5. Direction: CW, CCW
6. Voltage, speed, and shaft can be customized based
7. Encoder 13PPR available

Driving Motor Data:

Motor model

Rated

Volt.

 No load Load Stall
Current Speed Current Speed Torque

Output

power

 Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
JQM-395-012-3000 12 ≤60 3000 ≤250 2200 65 1.5 ≥208 ≥740
JQM-395-012-4500 12 ≤90 4500 ≤430 3300 80 2.7 ≥410 ≥1700
JQM-395-012-6000 12 ≤130 6000 ≤750 4800 100 4.9 ≥510 ≥2800
JQM-395-024-3000 24 ≤40 3000 ≤120 2200 65 1.5 ≥220 ≥380
JQM-395-024-4500 24 ≤60 4500 ≤220 3300 80 2.7 ≥360 ≥820
JQM-395-024-6000 24 ≤80 6000 ≤380 4800 100 4.9 ≥580 ≥1700

Technical Data of Gearbox:

Number of stages 4 5 6 7 8
Reduction ratio 37 88,114,131

206,265,305

341,392,450

 619,711,796 914,1049,1548

1857,2132

2387,2447
Gearbox length "L"mm 22.2 24.8 27.4 30 32.6
Breaking torque(kgf.cm) 10 12 16 20 20
Gearbox efficiency 65% 59% 53% 48% 43%

Gear Motor Mechanical Size:

5kg.cm Speed Reduction DC Geared Motors

Gear Motor Electric Data:

Motor model

Rated

Volt.

 No load Load Stall
Current Speed Current Speed Torque Output power Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
JQM-30RS3950123000-88K 12.0 0.05 34.3 0.20 27.5 2.8 0.78 13.9 0.83
JQM-30RS3950126500-36.7K 12.0 0.23 172.2 0.87 133.7 3.3 4.47 14.5 3.10
JQM-30RS39501212000-20K 12.0 0.34 595.8 1.56 494.9 1.7 8.53 9.9 7.54
JQM-30RS3950246000-88K 24.0 0.11 68.4 0.41 54.3 6.4 3.54 30.8 1.59
JQM-30RS39502411000-36.7K 24.0 0.18 303.8 0.95 245.4 3.8 9.63 19.9 4.16

Remark:
Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...
Welcome OEM or ODM projects

Notes: Above is our standard models for your reference, we can make as customer request.

Professional Factory:

5kg.cm Speed Reduction DC Geared Motors

Certificate Photos :

5kg.cm Speed Reduction DC Geared Motors

Packing:

5kg.cm Speed Reduction DC Geared Motors

Transportation:

5kg.cm Speed Reduction DC Geared Motors

Motor Application Fields:

5kg.cm Speed Reduction DC Geared Motors

Our motor products contain range:

5kg.cm Speed Reduction DC Geared Motors

FAQ:

Q: How long is the lead time of orders?

A: Lead time : 4 weeks after receive the deposit

Q: What is your trade Assurance?

A: 100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q: Do You Make Customized Product?

A: Yes,We Accpet IT.

Q: About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q: What is the payment term?

A: T/T and Paypal is used more,please contact us for details

Q: What is the quality level of your product?

A : We produce good quality, refuse to produce low quality.
