70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine
70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine
70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine
70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine
70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine
70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine
70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine
70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine
Specifications
Brand Name :
Junqi
Model Number :
JQM-70SS3530
Certification :
CE,ROHS, UL
Place of Origin :
China
MOQ :
50pcs
Price :
USD5-usd9/pc (Negotiable)
Payment Terms :
L/C, T/T, Western Union,PAYPAL
Supply Ability :
10000PCS/Month
Delivery Time :
as confirmed
Packaging Details :
suite for export
Product Name :
DC Gear Motor
Commutation :
Brush
Model :
JQM-70SS3530
Speed :
4~111rpm
Torque :
0.5~20kg.cm
Construction :
Permanent Magnet
Diameter :
70*54mm
Protect Feature :
Totally Enclosed
Efficiency :
IE4
Application :
BOAT, Car, Electric Bicycle, FAN, Home Appliance
Description
JQM-70SS3530 Customized 12V/24V Right Angle Gearhead Motor For Cigarette Machine

Driving Motor Data:

Motor model Rated Volt. No load Load Stall
Current Speed Current Speed Torque power Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
JQM-3530-012-3000 12 ≤23 3000 ≤170 2250 20 0.47 ≥160 ≥400
JQM-3530-012-4500 12 ≤45 4500 ≤211 3600 46 1.73 ≥230 ≥1060
JQM-3530-012-6000 12 ≤54 6000 ≤367 4800 62 3.11 ≥310 ≥1840
JQM-3530-024-3000 24 ≤20 3000 ≤50 2400 45 1.13 ≥150 ≥210
JQM-3530-024-4500 24 ≤33 4500 ≤114 3600 50 1.88 ≥210 ≥480
JQM-3530-024-6000 24 ≤30 6000 ≤197 4800 76 3.82 ≥320 ≥840

Technical Data of Gearbox:

Reduction Stage 3 4 5
Reduction Ratio 54K, 73K 217K, 293K 564K, 763K
Length of Gearbox "L" mm 15 15 15
Gearbox Efficiency 73% 65% 59%

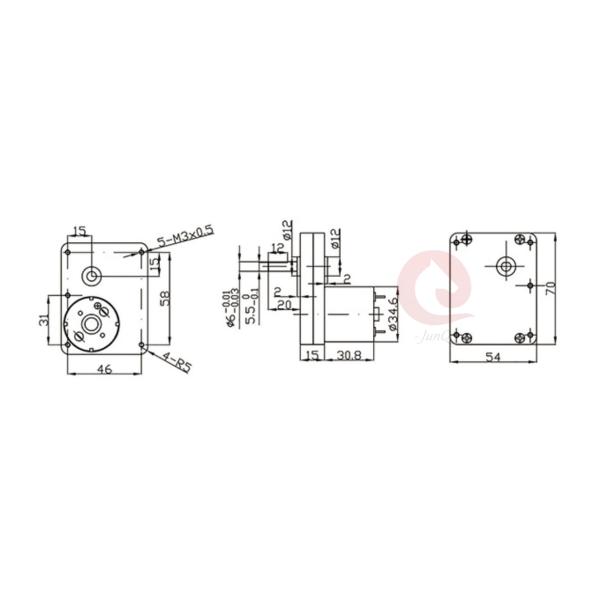

Gear Motor Mechanical Size:

70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine

Gear Motor Electric Data:

Model Number Rated Volt. No Load At Max Efficiency Stall
Speed Current Speed Current Torque Power Current Torque
rpm mA rpm mA Kgf.cm W mA Kgf.cm
JQM-70SS35300129500-32.5K 12V 292 240 228 1000 1.6 3.7 2300 6.6
JQM-70SS35300129500-166K 12V 57 400 43 1500 11.4 5.0 3100 43
JQM-70SS35300129500-563K 12V 16 400 12 1400 31 3.8 3100 138
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in

Remark:
Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...
Welcome OEM or ODM projects

Notes: Above is our standard models for your reference, we can make as customer request.

Professional Factory:

70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine

Certificate Photos :

70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine

Packing:

70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine

Transportation:

70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine

Motor Application Fields:

70x54mm 20kg.Cm 111rpm DC Geared Motors Right Angle Gearhead Motor For Cigarette Machine

FAQ:

Q: How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit

Q: What is your trade Assurance?

A: 100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q: Do You Make Customized Product?

A: Yes,We Accpet IT.

Q: About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q: What is the payment term?

A: T/T and Paypal is used more,please contact us for details

Q: What is the quality level of your product?

A: We produce good quality, refuse to produce low quality.
