64rpm 95mm 24V DC Geared Motors For Barbecue Machine
64rpm 95mm 24V DC Geared Motors For Barbecue Machine
64rpm 95mm 24V DC Geared Motors For Barbecue Machine
64rpm 95mm 24V DC Geared Motors For Barbecue Machine
64rpm 95mm 24V DC Geared Motors For Barbecue Machine
64rpm 95mm 24V DC Geared Motors For Barbecue Machine
64rpm 95mm 24V DC Geared Motors For Barbecue Machine
64rpm 95mm 24V DC Geared Motors For Barbecue Machine
Specifications
Brand Name :
Junqi
Model Number :
JQM-95SS3540
Certification :
CE,ROHS, UL
Place of Origin :
China
MOQ :
50pcs
Price :
USD9-usd14/pc (Negotiable)
Payment Terms :
L/C, T/T, Western Union,PAYPAL
Supply Ability :
10000PCS/Month
Delivery Time :
as confirmed
Packaging Details :
suite for export
Product Name :
DC Gear Motor
Commutation :
Brush
Model :
JQM-95SS3540
Speed :
2.5~64rpm
Torque :
5~50kg.cm
Construction :
Permanent Magnet
Diameter :
95mm
Protect Feature :
Explosion-proof
Efficiency :
IE1
Application :
BOAT, Car, Electric Bicycle, FAN, Home Appliance
Description
JQM-95SS3540 24V High Torque Geared Motor For Oven Automatic Rotary Barbecue Machine

Driving Motor Data:

Motor model Rated Volt. No load Load Stall
Current Speed Current Speed Torque power Torque Current
V mA rpm mA rpm gf.cm W gf.cm mA
JQM-35400124500 12 ≤50 4500 ≤420 3600 96 3.62 ≥430 ≥1790
JQM-35400126000 12 ≤59 6000 ≤513 5100 100 5.34 ≥600 ≥2180
JQM-35400244500 24 ≤45 4500 ≤215 3600 97 3.66 ≥436 ≥910
JQM-35400247000 24 ≤38 7000 ≤411 5100 115 6.14 ≥380 ≥1750

Technical Data of Gearbox:

Reduction Stage 3 4 5
Reduction Ratio 94K 394K 1166K
Length of Gearbox "L" mm 16 16 16
Gearbox Efficiency 73% 65% 59%

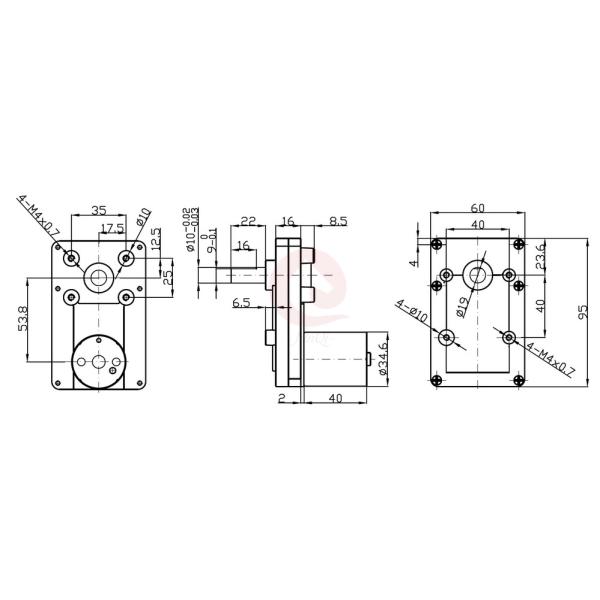

Gear Motor Mechanical Size:

64rpm 95mm 24V DC Geared Motors For Barbecue Machine

Gear Motor Electric Data:

Model Number Rated Volt. No Load At Max Efficiency Stall
Speed Current Speed Current Torque Power Current Torque
rpm mA rpm mA Kgf.cm W mA Kgf.cm
JQM-95SS35400124500-94K 12V 48 ≤150 35 ≤800 9 3.23 / /
JQM-95SS35400128000-196K 12V 40 ≤240 30 ≤1400 16 4.93 / /
JQM-95SS35400247000-94K 24V 74 ≤350 44 ≤1000 10 4.52 ≥1500 ≥32
JQM-95SS35400247000-394K 24V 17 ≤150 13 ≤550 30 4.00 ≥2400 ≥100
JQM-95SS35400246000-1166K 24V 5.1 ≤80 4.1 ≤500 70 2.95 ≥1150 ≥300
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...
Welcome OEM or ODM projects

Notes: Above is our standard models for your reference, we can make as customer request.

Professional Factory:

64rpm 95mm 24V DC Geared Motors For Barbecue Machine

Certificate Photos :

64rpm 95mm 24V DC Geared Motors For Barbecue Machine

Packing:

64rpm 95mm 24V DC Geared Motors For Barbecue Machine

Transportation:

64rpm 95mm 24V DC Geared Motors For Barbecue Machine

Motor Application Fields:

64rpm 95mm 24V DC Geared Motors For Barbecue Machine

FAQ:

Q: How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit

Q: What is your trade Assurance?

A: 100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q: Do You Make Customized Product?

A: Yes,We Accpet IT.

Q: About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q: What is the payment term?

A: T/T and Paypal is used more,please contact us for details

Q: What is the quality level of your product?

A: We produce good quality, refuse to produce low quality.
