N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys
N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys
N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys
N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys
N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys
N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys
N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys
N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys
Specifications
Brand Name :
Junqi
Model Number :
JQM-12SSN30
Certification :
CE,ROHS, UL
Place of Origin :
China
MOQ :
50pcs
Price :
USD4-usd5/pc (Negotiable)
Payment Terms :
L/C, T/T, Western Union,PAYPAL
Supply Ability :
10000PCS/Month
Delivery Time :
as confirmed
Packaging Details :
suite for export
Product Name :
DC Gear Motor
Commutation :
Brush
Model :
JQM-12SSN30
Voltage :
1.5V~12VDC
Power :
0.1~0.5W
Speed :
8~1000RPM
Torque :
1~5kg.cm
Construction :
Permanent Magnet
Diameter :
12mm
Application :
BOAT, Car, Electric Bicycle, FAN, Home Appliance
Description
N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys

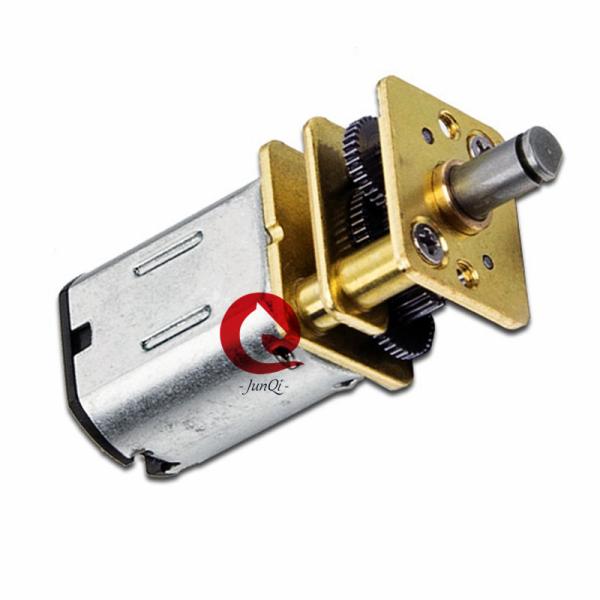

JQM-12SSN30 micro metal gear motor

1. Main voltage: 1.5V,2.5V,3V,6V,12VDC
2. Typical applications: Automatic door-lock,projector, hairdressing equipment
3. Square Gearbox size:12mm*10mm*L
4. Torque:50gf.cm~2000gf.cm
5. Direction: CW,CCW
6. Voltage, speed, and shaft can be customized based
7. Encoder 3PPR available

Driving Motor Data:

Motor model

Rated

Volt.

 No load Load Stall
Current Speed Current Speed Torque

Output

power

 Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
JQM-N30-006-10000 6 ≤30 10000 ≤110 7500 4 0.3 ≥16 ≥280
JQM-N30-006-15000 6 ≤55 15000 ≤200 11250 6 0.7 ≥24 ≥490
JQM-N30-006-25000 6 ≤100 25000 ≤370 18750 8 1.5 ≥32 ≥1500

Technical Data of Gearbox:

Number of stages 2 4 5 7
Reduction ratio 3,5,10

17,20,30,36

50,63,100

110,150,210

250,298,380

 372,625,1000
Gearbox length “L”mm 9 9 9 12
Breaking torque(kgf.cm) 0.6 0.9 1.2 2
Gearbox efficiency 81% 65% 59% 48%

Gear Motor Mechanical Size:

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys

Gear Motor Electric Data:

Motor model

Rated

Volt.

 No load Load Stall
Current Speed Current Speed Torque Output power Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
JQM-12SSN3000315000-250K 3.0 0.06 57.3 0.28 45.9 0.60 0.28 2.90 1.18
JQM-12SSN3000317500-50K 3.0 0.12 322.7 0.46 246.6 0.21 0.52 0.88 1.55
JQM-12SSN303.322000-100K 3.3 0.11 220.2 0.53 178.2 0.38 0.69 1.97 2.33
JQM-12SSN303.322500-100K 3.3 0.13 219.1 0.59 174.1 0.37 0.66 1.80 2.36
JQM-12SSN304.520500-50K 4.5 0.08 393.5 0.41 321.0 0.25 0.82 1.40 1.85
JQM-12SSN304.523400-63K 4.5 0.11 360.1 0.48 294.2 0.30 0.93 1.70 2.15
JQM-12SSN304.526300-63K 4.5 0.15 398.3 0.70 316.3 0.43 1.41 2.10 2.83
JQM-12SSN3000517500-50K 5.0 0.03 356.5 0.17 301.9 0.11 0.35 0.73 0.94
JQM-12SSN3000520000-100K 5.0 0.05 196.9 0.30 164.4 0.42 0.71 2.60 1.58
JQM-12SSN3000610000-100K 6.0 0.02 105.9 0.08 86.0 0.17 0.15 0.90 0.33
JQM-12SSN3000610000-150K 6.0 0.02 67.8 0.08 53.4 0.35 0.19 1.63 0.32
JQM-12SSN3000610000-250K 6.0 0.02 42.7 0.09 33.6 0.57 0.20 2.68 0.32
JQM-12SSN3000610000-298K 6.0 0.02 36.3 0.08 29.1 0.61 0.18 3.10 0.33
JQM-12SSN3000612000-30K 6.0 0.04 390.0 0.13 291.8 0.07 0.20 0.26 0.37
JQM-12SSN3000615000-100K 6.0 0.03 159.7 0.12 132.2 0.19 0.26 1.10 0.58
JQM-12SSN3000615000-150K 6.0 0.03 105.9 0.12 87.8 0.34 0.31 2.00 0.59
JQM-12SSN3000615000-250K 6.0 0.03 64.8 0.15 51.5 0.70 0.37 3.40 0.60
JQM-12SSN3000615000-298K 6.0 0.03 50.9 0.13 40.6 0.73 0.31 3.60 0.54
JQM-12SSN3000623500-298K 6.0 0.06 78.6 0.30 64.4 0.97 0.64 5.38 1.39

Notes: Above is our standard models for your reference, we can make as customer request.

Professional Factory:

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys

Certificate Photos :

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys

Packing:

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys

Transportation:

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys

Motor Application Fields:

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys

Our motor products contain range:

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys

FAQ:

Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit

Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q:Do You Make Customized Product?

A:Yes,We Accpet IT.

Q:About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details

Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.
