JQ60STH56-2008AF Nema24 56mm 2.8A 1.65N.m High Torque Hybrid Stepper Motor For Gate Equipments
JQ60STH56-2008AF Nema24 56mm 2.8A 1.65N.m High Torque Hybrid Stepper Motor For Gate Equipments
JQ60STH56-2008AF Nema24 56mm 2.8A 1.65N.m High Torque Hybrid Stepper Motor For Gate Equipments
JQ60STH56-2008AF Nema24 56mm 2.8A 1.65N.m High Torque Hybrid Stepper Motor For Gate Equipments
JQ60STH56-2008AF Nema24 56mm 2.8A 1.65N.m High Torque Hybrid Stepper Motor For Gate Equipments
JQ60STH56-2008AF Nema24 56mm 2.8A 1.65N.m High Torque Hybrid Stepper Motor For Gate Equipments
JQ60STH56-2008AF Nema24 56mm 2.8A 1.65N.m High Torque Hybrid Stepper Motor For Gate Equipments
JQ60STH56-2008AF Nema24 56mm 2.8A 1.65N.m High Torque Hybrid Stepper Motor For Gate Equipments
Specifications
Brand Name :
JEUNKEI
Model Number :
JQ60STH56-2008AF
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
5pcs ( sample available)
Price :
USD15-USD30/PC
Payment Terms :
T/T, , Western Union, Paypal
Supply Ability :
1000pcs per month
Delivery Time :
depend on the order quantity /Negotiable
Packaging Details :
Suite for export
Name :
Nema24 Hybrid Stepping Motor
Model No. :
JQ60STH56-2008A
Type :
Hybrid
Step angle :
1.8°
Current/Phase :
2.8A
Holding Torque :
1.65N.m
Length :
56mm
Weight :
770g
Description

60STH Series Stepper Motor

Hybrid stepper motors combine the best features of both the PM and Variable Reluctance stepper motors. This highly reliable technology increases detent and offers high torque and high speed performances.
General Specification:
Item Specification
Step Angle 1.8°
Step Angle Accuracy ±5%(full step, no load)
Radial Play 0.02mm@450g
Axial Play 0.08mm@450g
Max.Radial Force 75N( 20mm from the flange)
Max.Axial Force 15N
Dielectric Strength 600VAC/1S
Insulation Resistance 100MΩ,500VDC
Ambient Temperature -20℃~+50℃
Insulation Class Class B
Electrical Specifications:
Model

Current/

Phase

Resistance/

Phase

Inductance/

Phase

Holding

Torque

Detent

torque

#of

Leads

Rotor

Inertia

 Length Weight
Single shaft A Ω mH N.m N.m # g-cm² mm kg

JQ60STH56-2008AF		 unipolar 2.0 1.8 3.6 1.17
0.07
8
400
56
0.77
parallel 2.8 0.9 3.6 1.65
series 1.4 3.6 14.4 1.65
Dimensions(mm):
JQ60STH56-2008AF Nema24 56mm 2.8A 1.65N.m High Torque Hybrid Stepper Motor For Gate Equipments

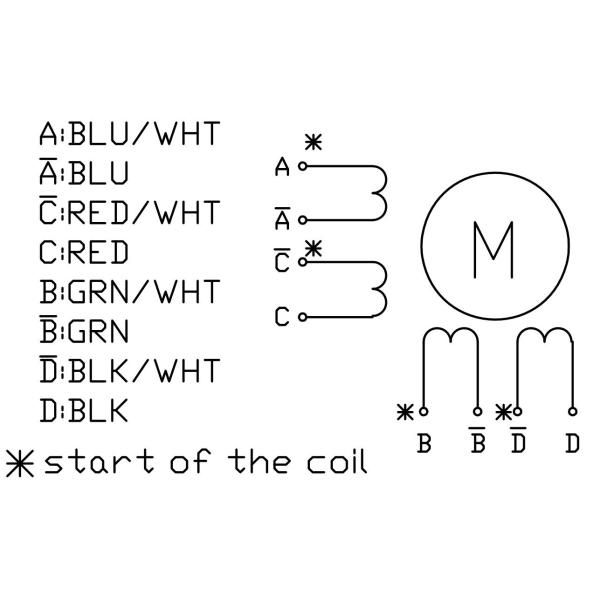

Wiring Diagram:
JQ60STH56-2008AF Nema24 56mm 2.8A 1.65N.m High Torque Hybrid Stepper Motor For Gate Equipments
Speed-Torque Curve

JQ60STH56-2008AF Nema24 56mm 2.8A 1.65N.m High Torque Hybrid Stepper Motor For Gate Equipments

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

JQ60STH56-2008AF Nema24 56mm 2.8A 1.65N.m High Torque Hybrid Stepper Motor For Gate Equipments

Applications:

Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
