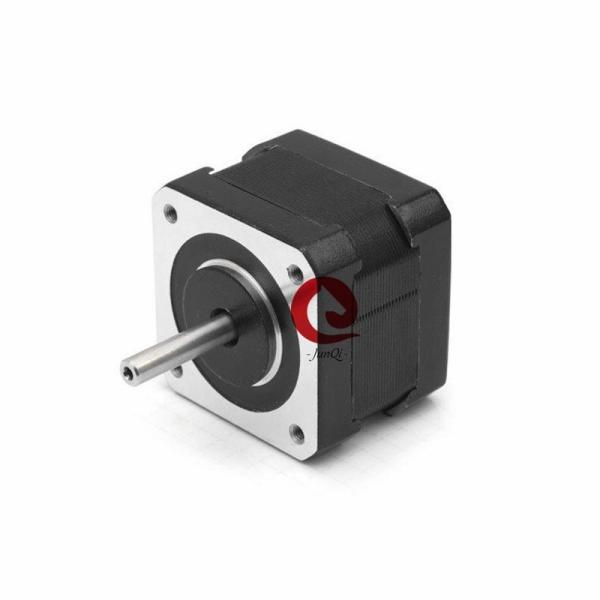

NEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07Nm
NEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07Nm
NEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07Nm
NEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07Nm
NEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07Nm
NEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07Nm
NEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07Nm
NEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07Nm
Specifications
Brand Name :
Junqi
Model Number :
JQ35HB36-1004A,JQ35HB28-0504A,JQ35HB26-0284A
Certification :
CE, RoHs, REACH
Place of Origin :
Changzhou,China
MOQ :
10pcs
Price :
USD10-28/PC Negotialbe
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000set/month
Delivery Time :
4weeks after get payment (base on order),
Packaging Details :
CTN
Step angle(degrees) :
1.8°
Holding Torque :
0.07~0.14N.m
Phase :
2
Type :
Hybrid
Current/Phase :
0.28~1.0A
Usage :
Industrial
Function :
Control
Speed :
Low Speed
Structure :
Step
Portect Feature :
Enclosed
Shape :
Square
Body Length :
26mm/28mm/36mm
Shaft :
Single shaft
Description

NEMA14(35mm) 1.8Degree 2-phase stepper motor

General Specification:

Item Specification
Step Angle 1.8°
Step Angle Accuracy ±5%(full step, no load)
Radial Play 0.02mm@450g
Axial Play 0.08mm@450g
Max.Radial Force 28N( 20mm from the flange)
Max.Axial Force 10N
Dielectric Strength 600VAC/1S
Insulation Resistance 100MΩ,500VDC
Ambient Temperature -20℃~+50℃
Insulation Class Class B

Quick Details:

Model Frame Size Phase Shaft Type

Body Length

(mm)

Holding Torque

(Nm)

Rated Current

(A)
JQ35HB36-1004A NEMA14(35mm) 2 Single Shaft 36 0.14 1.0
JQ35HB28-0504A NEMA14(35mm) 2 Single Shaft 28 0.1 0.5
JQ35HB26-0284A NEMA14(35mm) 2 Single Shaft 26 0.07 0.28

Mechanical Size:

NEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07Nm

Wiring Diagram:

NEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07Nm

Torque Curve:

NEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07NmNEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07NmNEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07Nm

Electricl Specification:

Model

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding

Torque

Detent

Torque

 #of Leads

Rotor

Inertia

 Length Weight
Single Shaft A Ω mH N.m N.m # g-cm2 mm kg
JQ35HB26-0284A 0.28 26 27 0.07 0.006 4 10 26±1 0.13
JQ35HB28-0504A 0.5 20 14 0.1 0.008 4 11 28±1 0.14
JQ35HB36-1004A 1.0 2.7 4.3 0.14 0.01 4 14 36±1 0.18

We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

NEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07Nm

Motor Application Fields:

Medical: Syringe pump, X ray oncology equipment/ Collimators; CT; Medical bed, Face mask machine; Disability Equipment liquid Analyser; Physiotherapy Equipment; Injection Pump; Blood Analyser ; Biochemical Analyzer; Disability equipment lift

Textile: Embroidery Machines; Flat Knitting Machines;Screen Printing Machines;Spinning Machines;Yarn Preparation Machines.

Industrial Control: CNC; Pick and Place Machines, Carving Machine; Printer; Industrial Analyser; SMT; Engraving and Marking Equipment.


Logistics: Logistic&Storage Equipment ;ConveyorSystem; Conveyor System;Barrier Opening System;Door Opening System.


Household Electrical: Mover;Swimming Pool Cleaner;Coffee Machine; TV System


Office Automation: Printer, 3D Printer


Automobile: Seat Pump; Door System; Air Damper/Mixer; Lamp System

FAQ:

Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit

Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q:Do You Make Customized Product?

A:Yes,We Accpet IT.

Q:About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details

Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.

Our motor products contain range:

NEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07NmNEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07NmNEMA14 35mm 1.8degree 2 phase Hybrid Stepper Motors 26mm 0.28A 0.07Nm
