NEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D Printer
NEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D Printer
NEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D Printer
NEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D Printer
NEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D Printer
NEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D Printer
NEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D Printer
NEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D Printer
Specifications
Brand Name :
Junqi
Model Number :
JQ42HBH25-0404A,JQ42HBH33-0956A,JQ42HBH33-1334A,JQ42HBH38-1206A,JQ42HBH38-1684A,JQ42HBH47-1206A,JQ42HBH47-1684A,JQ42HBH60-1206A,
Certification :
CE, RoHs, REACH
Place of Origin :
Changzhou,China
MOQ :
10pcs
Price :
USD10-28/PC Negotialbe
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000set/month
Delivery Time :
4weeks after get payment (base on order),
Packaging Details :
CTN
Step angle(degrees) :
1.8°
Holding Torque :
0.16~0.56N.m
Phase :
2
Type :
Hybrid
Current/Phase :
0.4~1.68A
Usage :
Industrial
Function :
Control
Speed :
Low Speed
Structure :
Step
Portect Feature :
Enclosed
Shape :
Square
Body Length :
25mm/33mm/38mm/47mm/60mm
Shaft :
Single shaft
Description

NEMA17(42mm) 1.8Degree 2-phase High Torque stepper motor

Features:

1. Low Inertia, Quick Response

2. High Torque, High Efficiency

3. Low Vibration, Low Noise

4. Small Size

General Specification:

Item Specification
Step Angle 1.8°
Step Angle Accuracy ±5%(full step, no load)
Radial Play 0.02mm@450g
Axial Play 0.08mm@450g
Max.Radial Force 28N( 20mm from the flange)
Max.Axial Force 10N
Dielectric Strength 600VAC/1S
Insulation Resistance 100MΩ,500VDC
Ambient Temperature -20℃~+50℃
Insulation Class Class B

Quick Details:

Model Frame Size Phase Shaft Type

Body Length

(mm)

Holding Torque

(Nm)

Rated Current

(A)
JQ42HBH25-0404A NEMA17(42mm) 2 Single Shaft 26 0.17 0.4
JQ42HBH33-0956A NEMA17(42mm) 2 Single Shaft 33.5 0.16 0.95
JQ42HBH33-1334A NEMA17(42mm) 2 Single Shaft 33.5 0.22 1.33
JQ42HBH38-1206A NEMA17(42mm) 2 Single Shaft 39.5 0.26 1.2
JQ42HBH38-1684A NEMA17(42mm) 2 Single Shaft 39.5 0.36 1.68
JQ42HBH47-1206A NEMA17(42mm) 2 Single Shaft 47.5 0.317 1.2
JQ42HBH47-1684A NEMA17(42mm) 2 Single Shaft 47.5 0.44 1.68
JQ42HBH60-1206A NEMA17(42mm) 2 Single Shaft 60 0.56 1.2

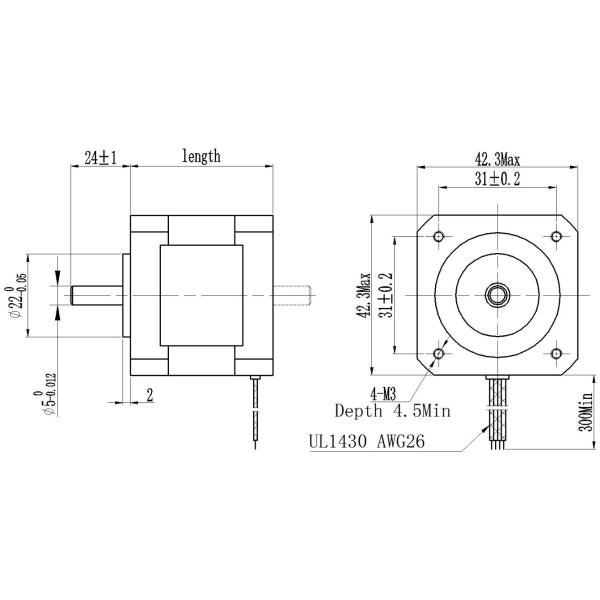

Mechanical Size:

NEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D Printer

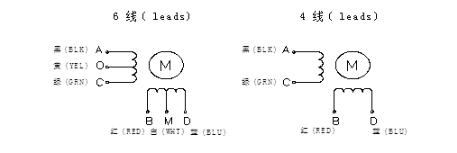

Wiring Diagram:

NEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D Printer

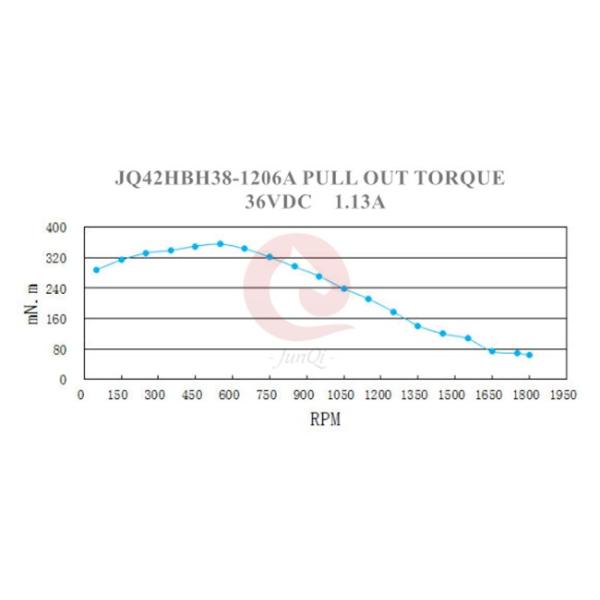

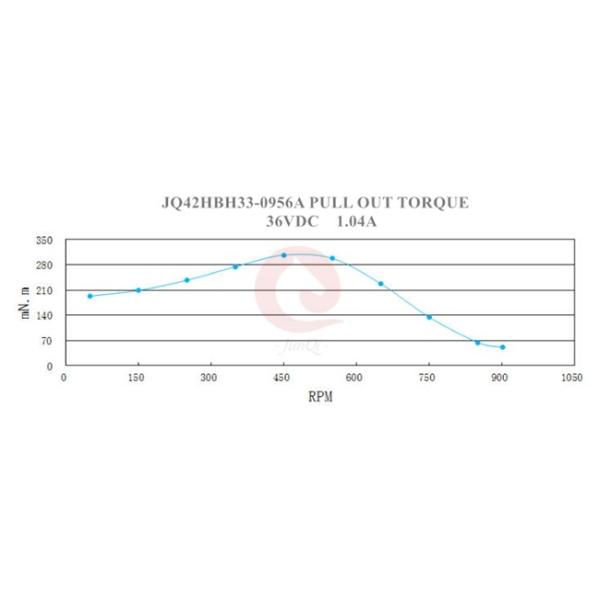

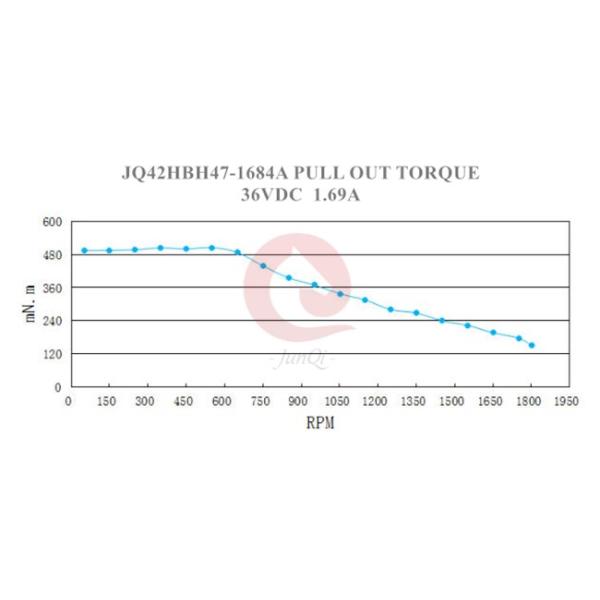

Torque Curve:

NEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D PrinterNEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D PrinterNEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D PrinterNEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D PrinterNEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D PrinterNEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D PrinterNEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D PrinterNEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D Printer

Electricl Specification:

Model

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding

Torque

Detent

Torque

 #of Leads

Rotor

Inertia

 Length Weight
Single Shaft A Ω mH N.m N.m # g-cm2 mm kg
JQ42HBH25-0404A 0.4 24 30 0.17 0.0075 4 20 26±1 0.15
JQ42HBH33-0956A 0.95 4.2 2.5 0.16 0.012 6 35 33.5±1 0.22
JQ42HBH33-1334A 1.33 2.1 2.5 0.22 0.012 4 35 33.5±1 0.22
JQ42HBH38-1206A 1.2 3.3 3.2 0.26 0.015 6 54 39.5±1 0.28
JQ42HBH38-1684A 1.68 1.65 3.2 0.36 0.015 4 54 39.5±1 0.28
JQ42HBH47-1206A 1.2 3.3 2.8 0.317 0.02 6 68 47.5±1 0.35
JQ42HBH47-1684A 1.68 1.65 2.8 0.44 0.02 4 68 47.5±1 0.35
JQ42HBH60-1206A 1.2 6 7 0.56 0.028 6 102 60±1 0.5

We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

NEMA17 42mm 1.8deg 2PH Electric Stepper Motors 25mm 60mm length for 3D Printer

FAQ:

Q: How long is the lead time of orders?

A: Lead time : 4 weeks after receive the deposit

Q: What is your trade Assurance?

A: 100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q: Do You Make Customized Product?

A: Yes,We Accpet IT.

Q: About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q: What is the payment term?

A: T/T and Paypal is used more,please contact us for details

Q: What is the quality level of your product?

A: We produce good quality, refuse to produce low quality.
