NEMA43 110x110m 3000 RPM 115VDC Motor High Torque Dc Motor 1.4KW 60VDC 4.5N.M
NEMA43 110x110m 3000 RPM 115VDC Motor High Torque Dc Motor 1.4KW 60VDC 4.5N.M
NEMA43 110x110m 3000 RPM 115VDC Motor High Torque Dc Motor 1.4KW 60VDC 4.5N.M
NEMA43 110x110m 3000 RPM 115VDC Motor High Torque Dc Motor 1.4KW 60VDC 4.5N.M
NEMA43 110x110m 3000 RPM 115VDC Motor High Torque Dc Motor 1.4KW 60VDC 4.5N.M
NEMA43 110x110m 3000 RPM 115VDC Motor High Torque Dc Motor 1.4KW 60VDC 4.5N.M
NEMA43 110x110m 3000 RPM 115VDC Motor High Torque Dc Motor 1.4KW 60VDC 4.5N.M
NEMA43 110x110m 3000 RPM 115VDC Motor High Torque Dc Motor 1.4KW 60VDC 4.5N.M
Specifications
Brand Name :
Junqi
Model Number :
JQ110BLS51,JQ110BLS68
Certification :
CE, RoHs, REACH
Place of Origin :
Changzhou,China
MOQ :
5pcs
Price :
USD100-200/PC Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000set/month
Delivery Time :
4weeks after get payment (base on order),
Packaging Details :
CTN
Type :
Brushless dc motor
Frame Size :
110mm
Winding Type :
Star
Rated Torque :
3N.m/4.5N.m
Number of Poles :
8
Number of Phase :
3
Rated Voltage :
60VDC
Body Length :
51mm/68mm
Rated Speed :
3000rpm
Usage :
Automotive, Drilling Machine
Shape :
Square
Description

110mm Diameter Brushless DC Motor 1.4KW 60VDC 3000RPM BLDC motor

Quick Details:

Model

Frame

Size

Rated

Power

W)

Body

Length

(mm)

Rated

Voltage

(VDC)

Rated

Torque

(Nm)

Rated

Current

(A)

Rated

Speed

(RPM)
JQ110BLS01 110mm 942 120 60 3

22.4

 3000
JQ110BLS02 110mm 1413 137 60 4.5 30 3000

Features:

1. Wide speed range, Smooth torque output.

2. Excellent Speed Stability.

3. Small and High Power.

4. High Efficiency and Energy conservation.

General Specification:

Item Specification
Winding Type Star Connection
Hall Effect Angle Electrical Angle of 120 degree
Radial Play 0.02mm@450g
Axial Play 0.08mm@450g
Max.Radial Force 630N( 10mm from the flange)
Max.Axial Force 315N
Dielectric Strength 600VAC/1S
Insulation Resistance 100MΩ,500VDC
Ambient Temperature -20℃~+50℃
Insulation Class Class B

Electric Connection:

Type Color Functions

UL1430

AWG26

 Red Vcc
Blue U(Hu)
Green V(Hv)
White W(Hw)
Black GND

UL1322

AWG14/12

 Yellow Phase U
Red Phase V
Black Phase W

Electricl Specification:

Item Unit JQ110BLS01 JQ110BLS02
Number of poles 8 8
Number of Phase 3 3
Rated Voltage VDC 60 60
Rated Torque N.m 3 4.5

Continuous

stall torque

 N.m 3.6 5.4
Rated Speed RPM 3000 3000
Rated Power W 942 1413
Peak Torque N.m 9 13.5
Peak Current A 68 110
Line to Line resistance ohms@20℃ 0.069 0.046
Line to Line Inductance mH 0.42 0.283
Torque Constant N.m/A 0.134 0.123
Back EMF Vrms/KRPM 9.9 9.1
Rotor Inertia g.cm2 4350 5800
Motor Length mm 120 137
Weight kg 4.8 6.8

**Notes: Above is standard motor, we can be designed &manufactured with customized request!!

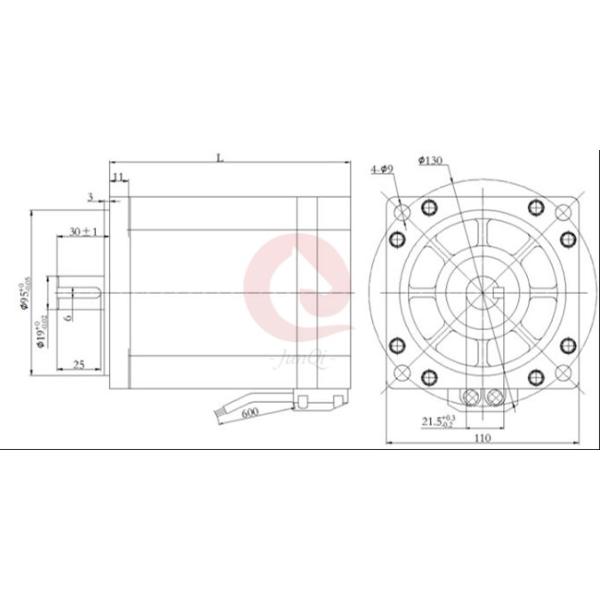

Mechanical Size:

NEMA43 110x110m 3000 RPM 115VDC Motor High Torque Dc Motor 1.4KW 60VDC 4.5N.M


We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: Brake, connector , Encoder

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

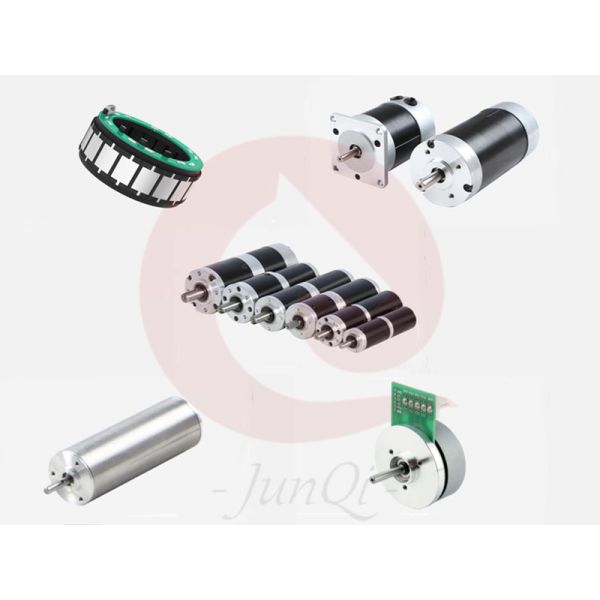

Our Brushless DC motor products contain range:

NEMA43 110x110m 3000 RPM 115VDC Motor High Torque Dc Motor 1.4KW 60VDC 4.5N.M

FAQ:

Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit

Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q:Do You Make Customized Product?

A:Yes,We Accpet IT.

Q:About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details

Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.
