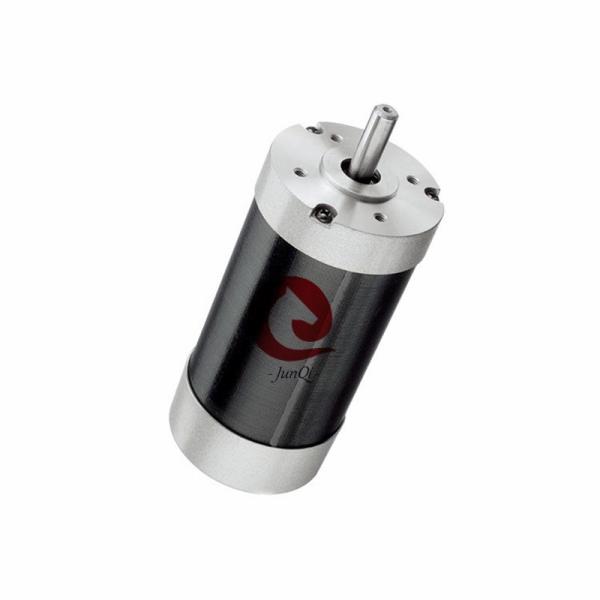

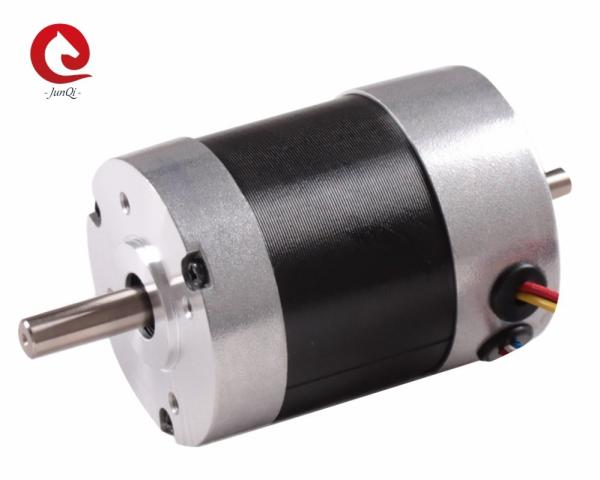

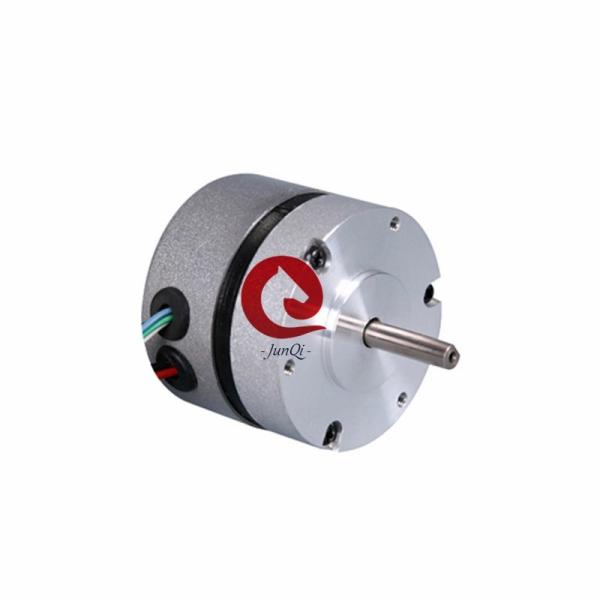

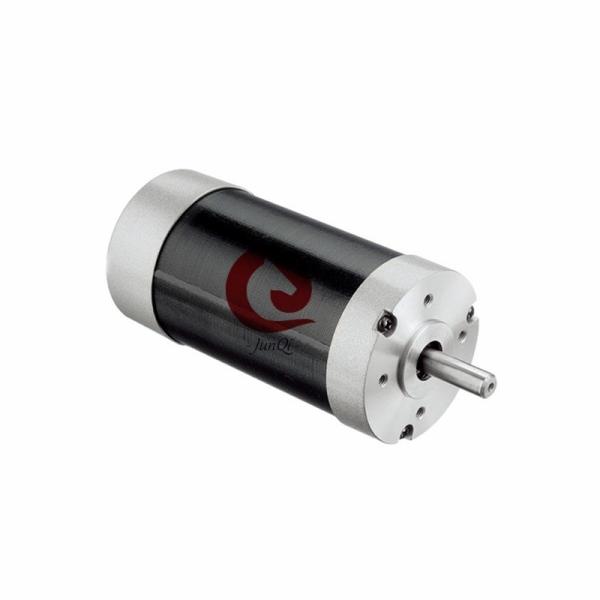

36VDC 4000RPM 0.96N.M 57mm NEMA23 Brushless DC Electric Motor
36VDC 4000RPM 0.96N.M 57mm NEMA23 Brushless DC Electric Motor
36VDC 4000RPM 0.96N.M 57mm NEMA23 Brushless DC Electric Motor
36VDC 4000RPM 0.96N.M 57mm NEMA23 Brushless DC Electric Motor
36VDC 4000RPM 0.96N.M 57mm NEMA23 Brushless DC Electric Motor
36VDC 4000RPM 0.96N.M 57mm NEMA23 Brushless DC Electric Motor
36VDC 4000RPM 0.96N.M 57mm NEMA23 Brushless DC Electric Motor
36VDC 4000RPM 0.96N.M 57mm NEMA23 Brushless DC Electric Motor
Specifications
Brand Name :
Junqi
Model Number :
JQ57RBL01A,JQ57RBL02A,JQ57RBL03A,JQ57RBL04A
Certification :
CE, RoHs, REACH
Place of Origin :
Changzhou,China
MOQ :
5pcs
Price :
USD20-50/PC Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000set/month
Delivery Time :
4weeks after get payment (base on order),
Packaging Details :
CTN
Type :
Brushless dc motor
Frame Size :
57mm
Winding Type :
Star
Rated Torque :
0.2N.m/0.4N.m/0.6N.m/0.8N.m
Number of Poles :
6
Number of Phase :
3
Rated Voltage :
36VDC
Body Length :
53.6mm/73.6mm/93.6mm/113.6mm
Rated Speed :
4000rpm
Usage :
Automotive
Shape :
Round
Description

NEMA23 57mm BLDC Motor, JQ57RBL Series 36VDC, 4000RPM Max torque 0.96N.m Round Body brushless dc motor

Quick Details:

Model

Frame

Size

Rated

Power

W)

Body

Length

(mm)

Rated

Voltage

(VDC)

Rated

Torque

(Nm)

Rated

Current

(A)

Rated

Speed

(RPM)
JQ57RBL01A 57mm 83 53.6 36 0.2

3.0

 4000
JQ57RBL02A 57mm 166 73.6 36 0.4 6.7 4000
JQ57RBL03A 57mm 249 93.6 36 0.6 9.4 4000
JQ57RBL04A 57mm 332 113.6 36 0.8 11.4 4000

Features:

1. Wide speed range, Smooth torque output

2. Excellent Speed Stability

3. Small and High Power

4. High Efficiency and Energy-Saving.

General Specification:

Item Specification
Winding Type Star Connection
Hall Effect Angle Electrical Angle of 120 degree
Radial Play 0.02mm@450g
Axial Play 0.08mm@450g
Max.Radial Force 115N( 20mm from the flange)
Max.Axial Force 45N
Dielectric Strength 600VAC/1S
Insulation Resistance 100MΩ,500VDC
Ambient Temperature -20℃~+50℃
Insulation Class Class B

Electric Connection:

Type Color Functions

UL1061

AWG28

 Red Vcc
Blue U(Hu)
Green V(Hv)
White W(Hw)
Black GND

UL1061

AWG24

 Yellow Phase U
Red Phase V
Black Phase W

Electricl Specification:

Item Unit JQ57RBL01A JQ57RBL02A JQ57RBL03A JQ57RBL04A
Number of poles 6 6 6 6
Number of Phase 3 3 3 3
Rated Voltage VDC 36 36 36 36
Rated Torque N.m 0.2 0.4 0.6 0.8

Continuous

stall torque

 N.m 0.24 0.48 0.72 0.96
Rated Speed RPM 4000 4000 4000 4000
Rated Power W 83 166 249 332
Peak Torque N.m 0.6 1.2 1.8 2.4
Peak Current A 9.1 17.9 28.2 34.3
Line to Line resistance ohms@20℃ 0.87 0.38 0.25 0.21
Line to Line Inductance mH 1 0.55 0.3 0.25
Torque Constant N.m/A 0.066 0.067 0.064 0.07
Back EMF Vrms/KRPM 4.9 5 4.7 5.2
Rotor Inertia g.cm2 275 375 510 693
Motor Length mm 53.6 73.6 93.6 113.6
Weight kg 0.76 1 1.25 1.52

**Notes: Above is standard motor, we can be designed &manufactured with customized request!!
36VDC 4000RPM 0.96N.M 57mm NEMA23 Brushless DC Electric Motor

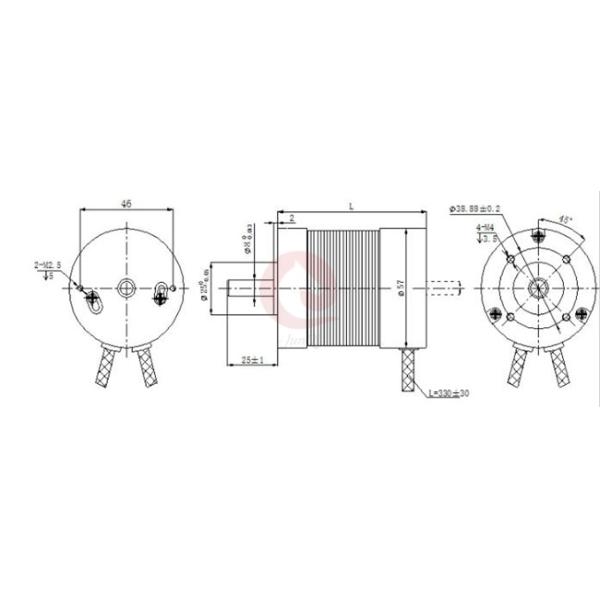

Mechanical Size:

36VDC 4000RPM 0.96N.M 57mm NEMA23 Brushless DC Electric Motor


We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

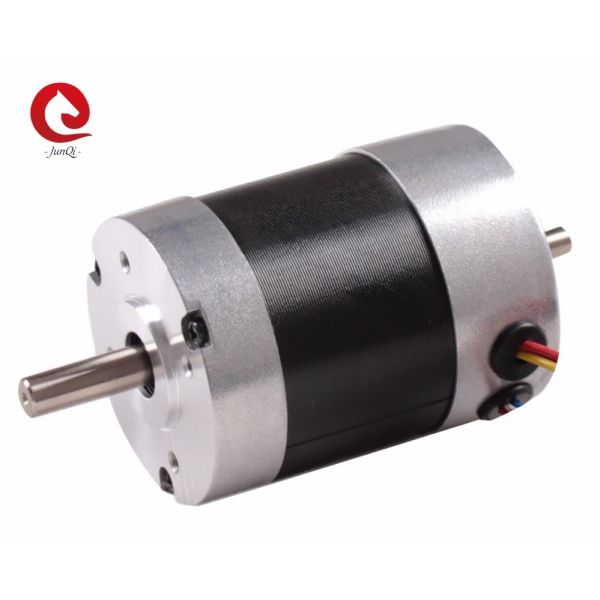

36VDC 4000RPM 0.96N.M 57mm NEMA23 Brushless DC Electric Motor

Brushless DC motor technology offer several advantages including high torque to weight ratio, increased efficiency and reliability, reduced noise and longer lifetime compared to brushed DC motors. The Delta Line portfolio offers a wide variety of BLDC motors technologies such as Slotted, Slotless, Flat and Frameless motors in sizes from 14 to 90mm diameter

FAQ:

Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit

Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q:Do You Make Customized Product?

A:Yes,We Accpet IT.

Q:About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details

Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.

Our motor products contain range:

36VDC 4000RPM 0.96N.M 57mm NEMA23 Brushless DC Electric Motor
