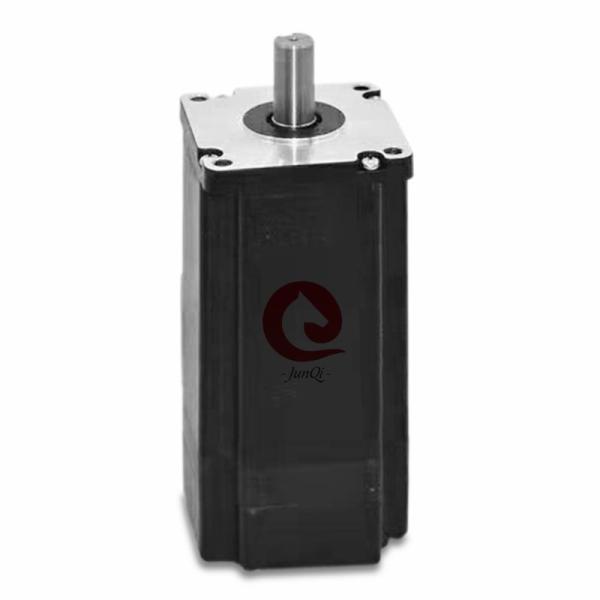

70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length
70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length
70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length
70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length
70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length
70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length
70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length
70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length
Specifications
Brand Name :
Junqi
Model Number :
JQ70BLS01,JQ70BLS02,JQ70BLS03
Certification :
CE, RoHs, REACH
Place of Origin :
Changzhou,China
MOQ :
5pcs
Price :
USD50-100/PC Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000set/month
Delivery Time :
4weeks after get payment (base on order),
Packaging Details :
CTN
Type :
Brushless dc motor
Frame Size :
70mm
Winding Type :
Star
Rated Torque :
0.5N.m/1.0N.m/1.5N.m
Number of Poles :
8
Number of Phase :
3
Rated Voltage :
48VDC
Body Length :
86mm/116mm/136mm
Rated Speed :
3000rpm
Usage :
Automotive
Shape :
Square
Description

70mm BLDC Motor, JQ70BLS Series 48VDC, 3000RPM torque 0.5~1.5N.m Square Body brushless dc motor

Quick Details:

Model

Frame

Size

Rated

Power

W)

Body

Length

(mm)

Rated

Voltage

(VDC)

Rated

Torque

(Nm)

Rated

Current

(A)

Rated

Speed

(RPM)
JQ70BLS01 70mm 157 86 48 0.5

3.274

 3000
JQ70BLS02 70mm 314 116 48 1.0 6.54 3000
JQ70BLS03 70mm 471 136 48 1.5 9.81 3000

Features:

1. Wide speed range, Smooth torque output

2. Excellent Speed Stability

3. Small and High Power

4. High Efficiency and Energy-Saving.

General Specification:

Item Specification
Winding Type Star Connection
Hall Effect Angle Electrical Angle of 120 degree
Radial Play 0.02mm@450g
Axial Play 0.08mm@450g
Max.Radial Force 115N( 20mm from the flange)
Max.Axial Force 45N
Dielectric Strength 600VAC/1S
Insulation Resistance 100MΩ,500VDC
Ambient Temperature -20℃~+50℃
Insulation Class Class B

Electric Connection:

Type Color Functions

UL2464

AWG26

 Red Vcc
Blue U(Hu)
Green V(Hv)
White W(Hw)
Black GND

UL2464

AWG16

 Yellow Phase U
Red Phase V
Black Phase W

Electricl Specification:

Item Unit JQ70BLS01 JQ70BLS02 JQ70BLS03
Number of poles 8 8 8
Number of Phase 3 3 3
Rated Voltage VDC 48 48 48
Rated Torque N.m 0.5 1.0 1.5

Continuous

stall torque

 N.m 0.6 1.2 1.8
Rated Speed RPM 3000 3000 3000
Rated Power W 157 314 471
Peak Torque N.m 1.5 3.0 4.5
Peak Current A 13.0 26 38
Line to Line resistance ohms@20℃ 0.6 0.3 0.22
Line to Line Inductance mH 1.4 0.7 0.55
Torque Constant N.m/A 0.12 0.12 0.12
Back EMF Vrms/KRPM 9.0 9.0 9.0
Rotor Inertia g.cm2 200 400 600
Motor Length mm 86 116 136
Weight kg 1.3 2.1 2.9

**Notes: Above is standard motor, we can be designed &manufactured with customized request!!
70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length

Mechanical Size:

70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length


We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length

FAQ:

Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit

Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q:Do You Make Customized Product?

A:Yes,We Accpet IT.

Q:About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details

Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.

Our motor products contain range:

70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length70mm 3000RPM 0.5N.M 48VDC Square Body Brushless DC Motor 86mm length
