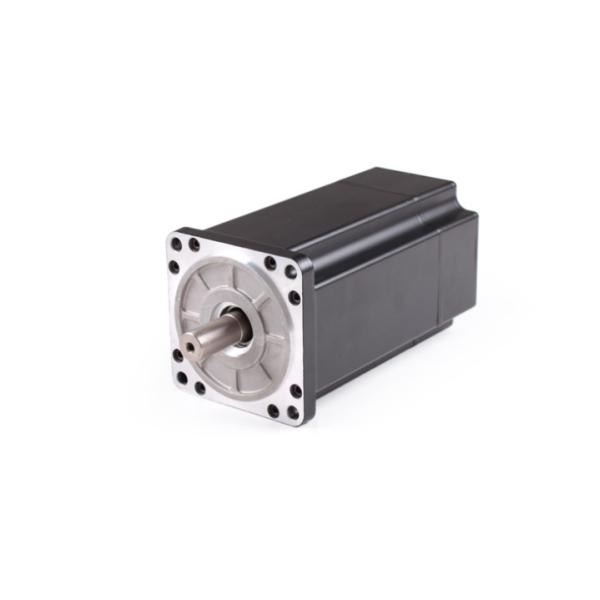

NEMA34 86x86mm Brushless DC Electric Motor High Torque Brushless Dc Motor 48VDC 3000RPM 2.54N.M
NEMA34 86x86mm Brushless DC Electric Motor High Torque Brushless Dc Motor 48VDC 3000RPM 2.54N.M
NEMA34 86x86mm Brushless DC Electric Motor High Torque Brushless Dc Motor 48VDC 3000RPM 2.54N.M
NEMA34 86x86mm Brushless DC Electric Motor High Torque Brushless Dc Motor 48VDC 3000RPM 2.54N.M
NEMA34 86x86mm Brushless DC Electric Motor High Torque Brushless Dc Motor 48VDC 3000RPM 2.54N.M
NEMA34 86x86mm Brushless DC Electric Motor High Torque Brushless Dc Motor 48VDC 3000RPM 2.54N.M
NEMA34 86x86mm Brushless DC Electric Motor High Torque Brushless Dc Motor 48VDC 3000RPM 2.54N.M
NEMA34 86x86mm Brushless DC Electric Motor High Torque Brushless Dc Motor 48VDC 3000RPM 2.54N.M
Specifications
Brand Name :
Junqi
Model Number :
JQ86BLB62,JQ86BLB86,JQ86BLB110,JQ86BLB134
Certification :
CE, RoHs, REACH
Place of Origin :
Changzhou,China
MOQ :
5pcs
Price :
USD50-150/PC Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000set/month
Delivery Time :
4weeks after get payment (base on order),
Packaging Details :
CTN
Type :
Brushless dc motor
Frame Size :
86mm
Winding Type :
Star
Rated Torque :
0.44N.m/1.27N.m/1.9N.m/2.54N.m
Number of Poles :
8
Number of Phase :
3
Rated Voltage :
48VDC
Body Length :
62mm/86mm/110mm/134mm
Rated Speed :
3000rpm
Usage :
Automotive, AGV
Shape :
Square
Description

NEMA34 86*86mm BLDC Motor, JQ86BLB Series 48VDC, 3000RPM torque 0.44~2.54N.m Square Body brushless dc motor

BLDC motor technology offers longer lifetime due to the absence of brushes and commutator erosion:

With no windings on the rotor, they are not subjected to centrifugal forces, and because the windings are supported by the housing, they can be cooled by conduction, requiring no airflow inside the motor for cooling. This in turn means that the motor's internals can be entirely enclosed and protected from dirt or other foreign matter.

Quick Details:

Model

Frame

Size

Rated

Power

W)

Body

Length

(mm)

Rated

Voltage

(VDC)

Rated

Torque

(Nm)

Rated

Current

(A)

Rated

Speed

(RPM)
JQ86BLB62 86mm 140 62 48 0.44

3.6

 3000
JQ86BLB86 86mm 400 86 48 1.27 10 3000
JQ86BLB110 86mm 600 110 48 1.9 14.7 3000
JQ86BLB134 86mm 800 134 48 2.54 18.6 3000

Features:

1. Wide speed range, Smooth torque output.

2. Excellent Speed Stability.

3. Small and High Power.

4. High Efficiency and Energy conservation.

General Specification:

Item Specification
Winding Type Star Connection
Hall Effect Angle Electrical Angle of 120 degree
Radial Play 0.02mm@450g
Axial Play 0.08mm@450g
Max.Radial Force 220N( 20mm from the flange)
Max.Axial Force 45N
Dielectric Strength 600VAC/1S
Insulation Resistance 100MΩ,500VDC
Ambient Temperature -20℃~+50℃
Insulation Class Class B

Electric Connection:

Type Color Functions

UL1430

AWG24

 Red Vcc
Blue U(Hu)
Green V(Hv)
White W(Hw)
Black GND

UL1332

AWG16

Yellow Phase U
Red Phase V
Black Phase W

Electricl Specification:

Item Unit JQ86BLB62 JQ86BLB86 JQ86BLB110 JQ86BLB134
Number of poles 8 8 8 8
Number of Phase 3 3 3 3
Rated Voltage VDC 48 48 48 48
Rated Torque N.m 0.44 1.27 1.9 2.54

Continuous

stall torque

 N.m 0.52 1.52 2.28 3.04
Rated Speed RPM 3000 3000 3000 3000
Rated Power W 140 400 600 800
Peak Torque N.m 1.32 3.8 5.7 7.62
Peak Current A 11 30 44 56
Line to Line resistance ohms@20℃ 0.85 0.17 0.09 0.06
Line to Line Inductance mH 1.4 0.6 0.3 0.22
Torque Constant N.m/A 0.127 0.129 0.13 0.137
Back EMF Vrms/KRPM 9.42 9.56 9.7 10.2
Rotor Inertia g.cm2 360 1000 1800 2500
Motor Length mm 62 86 110 134
Weight kg 1.4 2.1 3.0 4.3

**Notes: Above is standard motor, we can be designed &manufactured with customized request!!

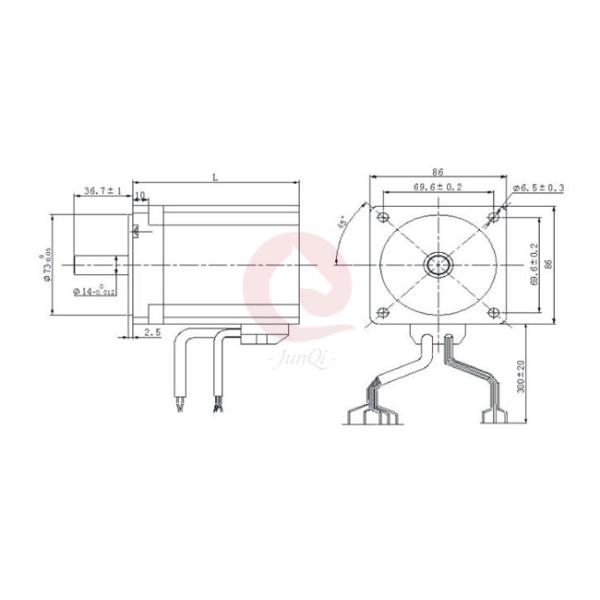

Mechanical Size:

NEMA34 86x86mm Brushless DC Electric Motor High Torque Brushless Dc Motor 48VDC 3000RPM 2.54N.M


We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

Our Service:

1. We accept samples orders,

2. If you have any problem in using, we can supply technical service

3. If there are any problems with the quality, we will try our best to solve it for you.

If you need more information, please contact with us: ivanzhu@junqitrading.com
