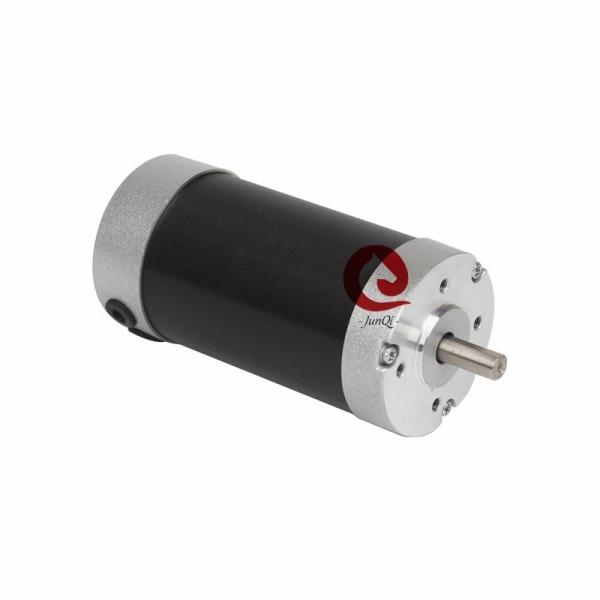

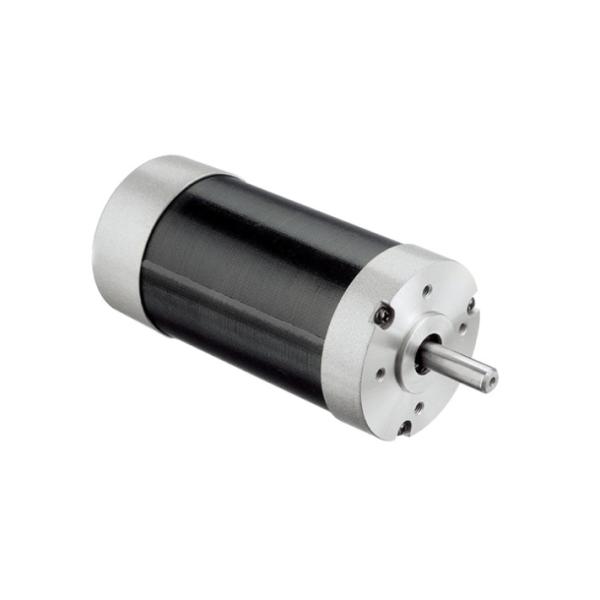

JQ57RBL NEMA23 57mm Round Brushless DC Electric Motor 36VDC 4000RPM 0.44N.M
JQ57RBL NEMA23 57mm Round Brushless DC Electric Motor 36VDC 4000RPM 0.44N.M
JQ57RBL NEMA23 57mm Round Brushless DC Electric Motor 36VDC 4000RPM 0.44N.M
JQ57RBL NEMA23 57mm Round Brushless DC Electric Motor 36VDC 4000RPM 0.44N.M
JQ57RBL NEMA23 57mm Round Brushless DC Electric Motor 36VDC 4000RPM 0.44N.M
JQ57RBL NEMA23 57mm Round Brushless DC Electric Motor 36VDC 4000RPM 0.44N.M
JQ57RBL NEMA23 57mm Round Brushless DC Electric Motor 36VDC 4000RPM 0.44N.M
JQ57RBL NEMA23 57mm Round Brushless DC Electric Motor 36VDC 4000RPM 0.44N.M
Specifications
Brand Name :
Junqi
Model Number :
JQ57RBL01,JQ57RBL02,JQ57RBL03,JQ57RBL04
Certification :
CE, RoHs, REACH
Place of Origin :
Changzhou,China
MOQ :
5pcs
Price :
USD20-60/PC Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000set/month
Delivery Time :
4weeks after get payment (base on order),
Packaging Details :
CTN
Type :
Brushless dc motor
Frame Size :
57mm
Winding Type :
Delta
Rated Torque :
0.11N.m/0.22N.m/0.33N.m/0.44N.m
Number of Poles :
4
Number of Phase :
3
Rated Voltage :
36VDC
Body Length :
53.6mm/73.6mm/93.6mm/113.6mm
Rated Speed :
4000rpm
Usage :
Automotive
Shape :
Round
Description

NEMA23 57mm BLDC Motor, JQ57RBL Series 36VDC, 4000RPM Max torque 0.528N.m brushless dc motor

BLDC Slotted motors benefits lie in the better dissipation of heat losses and smaller air gap vs. Slotless DC Motors which results in more efficient torque production.

Quick Details:

Model

Frame

Size

Rated

Power

W)

Body

Length

(mm)

Rated

Voltage

(VDC)

Rated

Torque

(Nm)

Rated

Current

(A)

Rated

Speed

(RPM)
JQ57RBL01 57mm 46 53.6 36 0.11

1.8

 4000
JQ57RBL02 57mm 99 73.6 36 0.22 3.7 4000
JQ57RBL03 57mm 138 93.6 36 0.33 5.2 4000
JQ57RBL04 57mm 184 113.6 36 0.44 3.66 4000

Features:

1. Wide speed range, Smooth torque output

2. Excellent Speed Stability

3. Small and High Power

4. High Efficiency and Energy-Saving.

General Specification:

Item Specification
Winding Type Delta Connection
Hall Effect Angle Electrical Angle of 120 degree
Radial Play 0.025mm@460g
Axial Play 0.025mm@4000g
Max.Radial Force 75N( 20mm from the flange)
Max.Axial Force 15N
Dielectric Strength 600VAC/1S
Insulation Resistance 100MΩ,500VDC
Ambient Temperature -20℃~+50℃
Insulation Class Class B

Electric Connection:

Type Color Functions

UL1061

AWG28

 Red Vcc
Blue U(Hu)
Green V(Hv)
White W(Hw)
Black GND

UL1061

AWG24

 Yellow Phase U
Red Phase V
Black Phase W

Electricl Specification:

Item Unit JQ57RBL01 JQ57RBL02 JQ57RBL03 JQ57RBL04
Number of poles 4 4 4 4
Number of Phase 3 3 3 3
Rated Voltage VDC 36 36 36 36
Rated Torque N.m 0.11 0.22 0.33 0.44

Continuous

stall torque

 N.m 0.132 0.264 0.396 0.528
Rated Speed RPM 4000 4000 4000 4000
Rated Power W 46 99 138 184
Peak Torque N.m 0.39 0.7 1.0 1.27
Peak Current A 6.5 12 16 21
Line to Line resistance ohms@20℃ 1.63 0.64 0.45 0.33
Line to Line Inductance mH 4.4 2 1.5 0.95
Torque Constant N.m/A 0.0607 0.0601 0.0648 0.0621
Back EMF Vrms/KRPM 4.5 4.45 4.8 4.6
Rotor Inertia g.cm2 75 119 173 230
Motor Length mm 53.6 73.6 93.6 113.6
Weight kg 0.44 0.72 0.95 1.2

**Notes: Above is standard motor, we can be designed &manufactured with customized request!!

Mechanical Size:

JQ57RBL NEMA23 57mm Round Brushless DC Electric Motor 36VDC 4000RPM 0.44N.M


We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

JQ57RBL NEMA23 57mm Round Brushless DC Electric Motor 36VDC 4000RPM 0.44N.M

Applications:

Widely used in automation equipment such as Copier ,printing machinery,Engraving machine,packing machine,grinting machine,robot,machine tool,Milling machine,Sewing machine,Engraving machine,Medical apparatus,ATM machine ect.

FAQ:

Q: How to control the quality of Industrial Parts?

A: We have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution

Q: What is your trade Assurance?

A: 100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q: Do You Make Customized Product?

A: Yes,We Accpet IT.

Q: About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q: What is the payment term?

A: T/T and Paypal is used more,please contact us for details

Q: What is the quality level of your product?

A: We produce good quality, refuse to produce low quality.

JQ57RBL NEMA23 57mm Round Brushless DC Electric Motor 36VDC 4000RPM 0.44N.M
