24V High Pressure Brushless DC Centrifugal Blower OWB9260B-24V For Fresh Air Equipment
24V High Pressure Brushless DC Centrifugal Blower OWB9260B-24V For Fresh Air Equipment
24V High Pressure Brushless DC Centrifugal Blower OWB9260B-24V For Fresh Air Equipment
24V High Pressure Brushless DC Centrifugal Blower OWB9260B-24V For Fresh Air Equipment
24V High Pressure Brushless DC Centrifugal Blower OWB9260B-24V For Fresh Air Equipment
24V High Pressure Brushless DC Centrifugal Blower OWB9260B-24V For Fresh Air Equipment
24V High Pressure Brushless DC Centrifugal Blower OWB9260B-24V For Fresh Air Equipment
24V High Pressure Brushless DC Centrifugal Blower OWB9260B-24V For Fresh Air Equipment
Specifications
Brand Name :
JEUNKEI
Model Number :
OWB9260B-24V
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
5pcs ( sample available)
Price :
USD40-USD60/PC
Payment Terms :
T/T, , Western Union, Paypal
Supply Ability :
1000pcs per month
Delivery Time :
depend on the order quantity /Negotiable
Packaging Details :
Suite for export
Name :
24VDC Brushless Centrifugal Blower
Model No. :
OWB9260B-24V
Type :
Centrifugal Blower
Voltage :
24VDC
Airflow :
80m³/h
Bearing :
NMB Bearing
Current :
8A
Pressure :
Max 7.5Kpa
Speed :
23000rpm
Life time :
＞15000 hours
Description

Blower Features:

1: High speed, specialized high-speed ball bearing(NMB) offering long service life and lower noise

2: High pressure and airflow output by compact size design

3: High efficiency, much more efficient than brush motor blower

4: High reliability, specialized controller make the working more reliable

5: High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling

Technical Parameters:

Model OWB9260B-24V
Voltage 24VDC
At Free Blowing
Speed 23000rpm
Current 8.0A
Air Flow 80m³/h
At Static Pressure
Speed 28000rpm
Current 5.0A
Air Pressure 7.5Kpa
At Working Point
Air Pressure 5.0Kpa
Speed 24000rpm
Current 8.0A
Air Flow 40m³/h

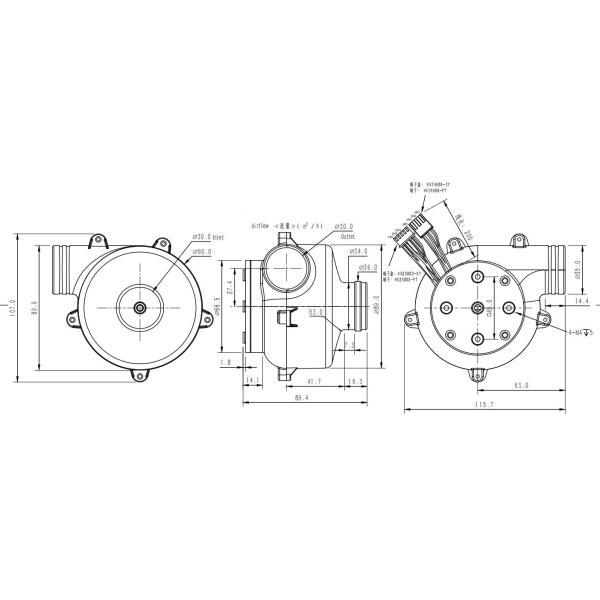

Drawing:

24V High Pressure Brushless DC Centrifugal Blower OWB9260B-24V For Fresh Air Equipment

Wiring Diagram
HX25002-5Y
Pin 1 26AWG Red +5V
Pin 2 26AWG Purple Hall A
Pin 3 26AWG Green Hall B
Pin 4 26AWG Grey Hall C
Pin 5 26AWG Black GND
HX39600-3Y
Pin 1 20AWG Yellow Phase A
Pin 2 20AWG Blue Phase B
Pin 3 20AWG White Phase c

Notes:

1. Don't use max pressure at working point, this point is not safe since airflow is too small.

2. To add a filter onto the inlet can make the blower run longer time

3. The right impeller fun direction is CCW.

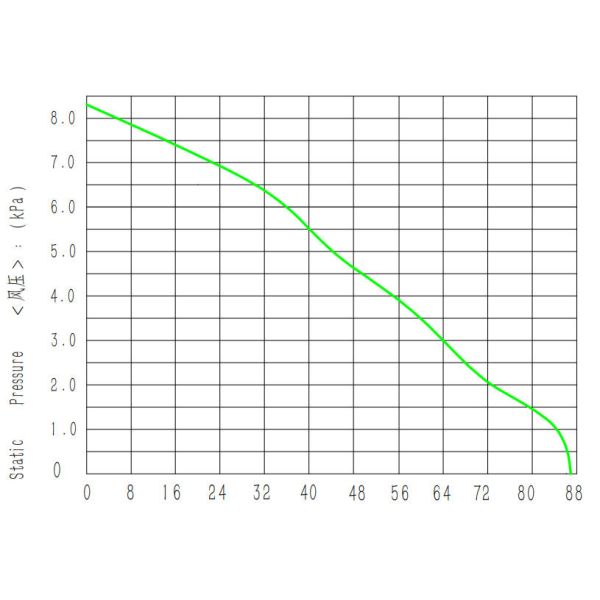

Performance Curve:

24V High Pressure Brushless DC Centrifugal Blower OWB9260B-24V For Fresh Air Equipment

OWB9260B-24V Blower can reach maximum 80m³/h airflow at 0 Kpa pressure and maximum 7.5Kpa static pressure.

It has maximum output air power when this blower fun at 3Kpa resistance if we set 100%PWM. It has maximum efficiency

when this blower run at 4Kpa resistance if we set 100%PWM. Other oad point performance refer to above P-Q curve

Application:

1: Buffer air cushion

2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment

Package:

24V High Pressure Brushless DC Centrifugal Blower OWB9260B-24V For Fresh Air Equipment24V High Pressure Brushless DC Centrifugal Blower OWB9260B-24V For Fresh Air Equipment
