Specifications
Brand Name :
JEUNKEI
Model Number :
OWB9250-24-240
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
5pcs ( sample available)
Price :
USD50-USD60/PC
Payment Terms :
T/T, , Western Union, Paypal
Supply Ability :
1000pcs per month
Delivery Time :
depend on the order quantity /Negotiable
Packaging Details :
Suite for export
Name :
High Pressure DC Brushless Air Blower For Medical Device
Model No. :
OWB9250-24-240
Voltage :
24VDC
Blade Material :
Aluminum
Bearing :
NMB Ball Bearing
Driver :
External Driver
Fan Type :
DC Centrifugal Fan
Size :
92mm*50mm
Color :
Black
Speed :
24000rpm
Description

8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower

Part Name
high capacity airflow medical blower
Part No
OWB9250-24-240
Rated votlage
24VDC
Max power consumption
160W
Life time(MTTF)
>20,000hours
Unit weight
0.4kgs
Bearing
NMB Ball bearing
Insulation class
Class F
Driver board
External
Speed control
PWM or 0~5V

Mechanical Size:

8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower

P-Q Performance Curve:

8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower

Wiring Diagram:

8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower

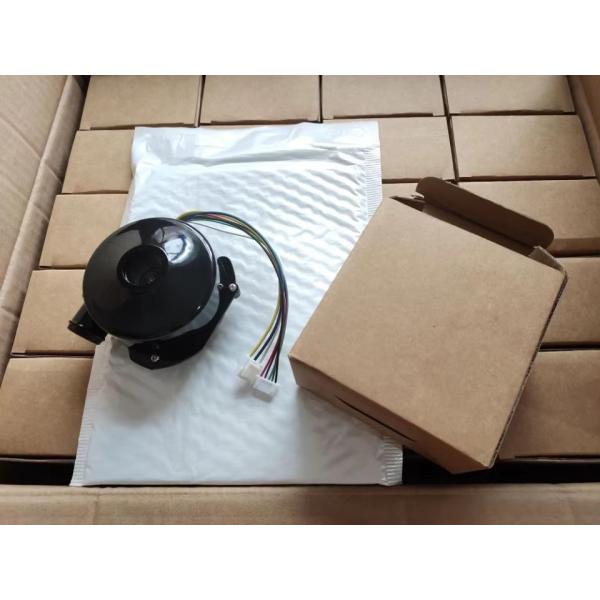

Package:

8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower

Applications:

1: Buffer air cushion
2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment
