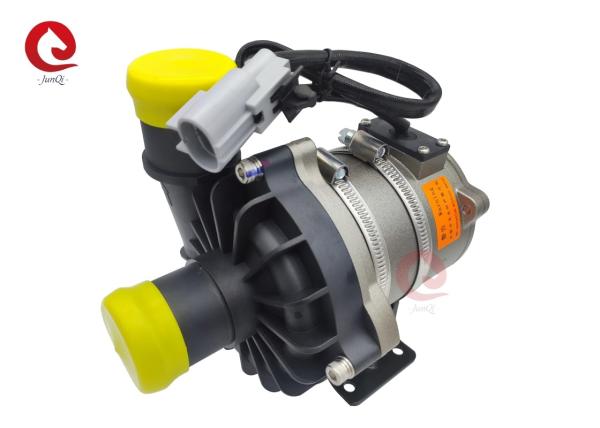

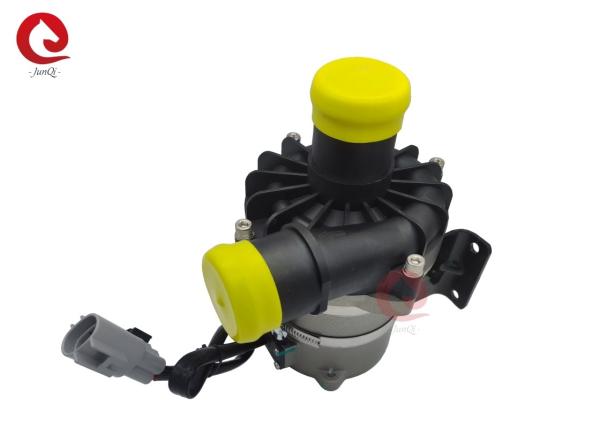

JP200-2-24V-FP 24V 180W 2000L/h 12mm High Head PWM Brushless Water Pump For Automotive engine Cooling Circulation
JP200-2-24V-FP 24V 180W 2000L/h 12mm High Head PWM Brushless Water Pump For Automotive engine Cooling Circulation
JP200-2-24V-FP 24V 180W 2000L/h 12mm High Head PWM Brushless Water Pump For Automotive engine Cooling Circulation
JP200-2-24V-FP 24V 180W 2000L/h 12mm High Head PWM Brushless Water Pump For Automotive engine Cooling Circulation
JP200-2-24V-FP 24V 180W 2000L/h 12mm High Head PWM Brushless Water Pump For Automotive engine Cooling Circulation
JP200-2-24V-FP 24V 180W 2000L/h 12mm High Head PWM Brushless Water Pump For Automotive engine Cooling Circulation
JP200-2-24V-FP 24V 180W 2000L/h 12mm High Head PWM Brushless Water Pump For Automotive engine Cooling Circulation
JP200-2-24V-FP 24V 180W 2000L/h 12mm High Head PWM Brushless Water Pump For Automotive engine Cooling Circulation
Specifications
Brand Name :
JEUNKEI
Model Number :
JP200-2-24-FP
Certification :
TS16949,ISO9001, ISO14001,CE
Place of Origin :
China
MOQ :
5pcs ( sample available)
Price :
USD150-USD215/PC
Payment Terms :
T/T, , Western Union, Paypal
Supply Ability :
1000pcs per month
Delivery Time :
depend on the order quantity /Negotiable
Packaging Details :
Suite for export
Name :
Brushless Water Pump
Model No. :
JP200-2-24-FP
Voltage :
24VDC
Power :
180W
Current :
7.5A
Head :
12m
Flow :
2000L/h
Application :
EV Cooling System
Warranty :
12 Months
Description

Features:

1. Flexible start protection, slow start

2. Adopt brushless motor with speed regulation and PWM duty ratio to control different running speed and reduce power output.

3. Fault feedback protection

4. Overvoltage and low voltage protection

5. Blocking protection

6. Low Noise

Pump Choice:

Model

Head

Range

Flow

Range

inlet/

outlet

 Voltage Power

Regulating/

Fixed Speed

Communication

mode

 PIN Install
JP200-2 10~23m 600~2500L/h

38mm

25mm

 12V/24V ＜300W Optional PWM/CAN 2/3/4 clamp/base

Notes: please tell us your needing parameter request. we will recommend a suitable pump of this series pump for you.

Dimensions(mm):

JP200-2-24V-FP 24V 180W 2000L/h 12mm High Head PWM Brushless Water Pump For Automotive engine Cooling Circulation

Connector Description:

JP200-2-24V-FP 24V 180W 2000L/h 12mm High Head PWM Brushless Water Pump For Automotive engine Cooling Circulation

No. Description Remark
1 +24VDC Red
2 PWM Blue
3 Fault Feedback Yellow
4 GND Black

Notes: No Fault feedback is low level , Fault feedback is high level.

PWM control Speed Chart:

JP200-2-24V-FP 24V 180W 2000L/h 12mm High Head PWM Brushless Water Pump For Automotive engine Cooling Circulation

Water Pump P-Q Performance Curve:

JP200-2-24V-FP 24V 180W 2000L/h 12mm High Head PWM Brushless Water Pump For Automotive engine Cooling Circulation
