24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m
24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m
24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m
24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m
24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m
24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m
24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m
24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m
Specifications
Brand Name :
junqi
Model Number :
JP-SH300
Certification :
IS9001, TS16949,CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotialbe
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000set/month
Delivery Time :
base on order,
Packaging Details :
suitable for export
Model :
JP-SH300
Voltage :
24VDC ( 18V-32VDC)
Power :
280W
Rated Performance :
H=20m, Q≥2000L/h, I ≤12.5A
Max Head :
22.5M
Application :
Hybrid bus, electric vehicles
IP Grade :
IP68
Life :
≥20000h
Noise :
≤60dB
Description

24VDC 300w Boosting Brushless DC Motor Water Pump Automotive

JP-SH300 Brushless water pump
Boosting/circulation/Variable-frequency/Low-noise/centrifugal pump
PWM control / CAN BUS(optional)

Applications:
Widely used in hybrid bus, hybrid
passenger car, electric vehicles, trains,
ships and other heating and
cooling circulation system.

Structural features :
1: Major structure :Pump head, brushless DC motor
and controller；
2: Features : Compact structure, strong sealing, strong
adaptability to the environment and media, structure and
material are corrosion resistance, high impact resistance,
with good heat dissipation structure.

24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m

1,JP-SH300 Water pump Drawing:

24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m

2. JP-SH300 performance curve

24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m

2, Technical specifications of JP-SH300 water pump

N0. Item Parameters Remark
1 Rated Voltage DC24V
2 Working Voltage DC～32V
3 Rated Power 280W
4 Rated performance H=20m, Q≥2000L/h, I≤12.5A
5 Service life ≥20000h
6 Working Noise ≤60 dB
7 Ambient temperature -50℃～125℃
8 Motor insulation grade Class F
9 Class of protection IP68
10 Working medium anti-freezing liquid
11 Control mode PWM or CAN(optional)


Connector Description

24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m

2:Pump body Brushless Motor structure features
Motor structure :

1:The rotor stainless steel housing is
sealed by laser welded
a)The new stainless steel material is
more resistant to corrosion ；
b)Much better leakproofness ；

2: The stator winding :
1, Reduce resistance, reduce
heat loss ；2, Reduce the
number of windings; Reduce
the volume of space.
c) Reduce the magnetic gap , reduce
magnetic flux loss ；


BLDC motor structural features
1, Tight seal, high corrosion resistance, strong
medium adaptability；
2, Low calorific value, low current and high motor
efficiency；

24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m


3:The Rotor is wrapped by stainless steel jacket tightly with laser full welding, sealing performance, corrosion resistance are much more improved.

24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m

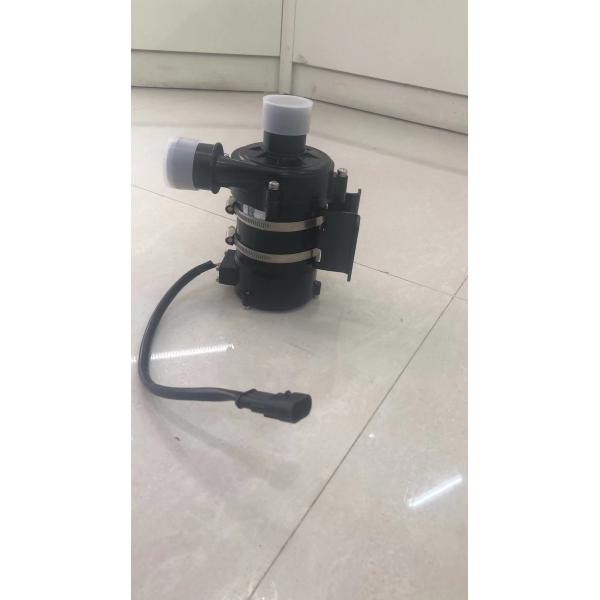

Pump picture:

24VDC 300w Boosting Brushless DC Motor Water Pump Automotive, High Head 22.5m
