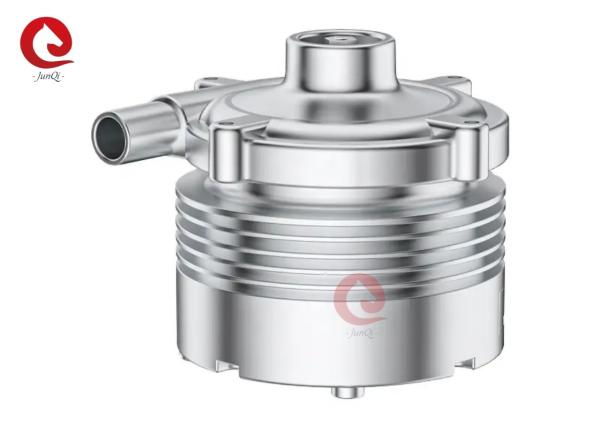

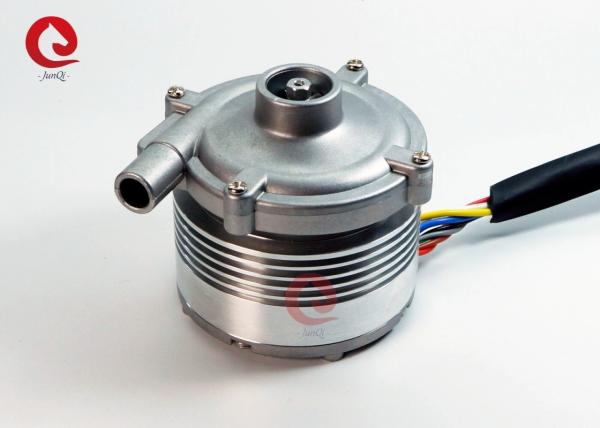

OWB7575 Aluminum Alloy High Pressure 50 kpa 80000 rpm Small Brushless Centrifugal Blower Fan For Fuel Cell
OWB7575 Aluminum Alloy High Pressure 50 kpa 80000 rpm Small Brushless Centrifugal Blower Fan For Fuel Cell
OWB7575 Aluminum Alloy High Pressure 50 kpa 80000 rpm Small Brushless Centrifugal Blower Fan For Fuel Cell
OWB7575 Aluminum Alloy High Pressure 50 kpa 80000 rpm Small Brushless Centrifugal Blower Fan For Fuel Cell
OWB7575 Aluminum Alloy High Pressure 50 kpa 80000 rpm Small Brushless Centrifugal Blower Fan For Fuel Cell
OWB7575 Aluminum Alloy High Pressure 50 kpa 80000 rpm Small Brushless Centrifugal Blower Fan For Fuel Cell
OWB7575 Aluminum Alloy High Pressure 50 kpa 80000 rpm Small Brushless Centrifugal Blower Fan For Fuel Cell
OWB7575 Aluminum Alloy High Pressure 50 kpa 80000 rpm Small Brushless Centrifugal Blower Fan For Fuel Cell
Specifications
Brand Name :
JEUNKEI
Model Number :
OWB7575-220VAC
Certification :
CE, ROHS, ISO10993
Place of Origin :
China
MOQ :
5pcs ( sample available)
Price :
USD60-USD85/PC
Payment Terms :
T/T, , Western Union, Paypal
Supply Ability :
1000pcs per month
Delivery Time :
depend on the order quantity /Negotiable
Packaging Details :
Suite for export
Name :
Brushless DC Blower Fan
Model No. :
OWB7575-220VAC
Power Source :
DC Power Supply/ Battery
Voltage :
220VAC
Power :
435W
Size :
74*72*71mm
Pressure :
50kpa
Air Volume :
666L/min
Wind Speed :
80000rpm
Pole Pair of Magnets :
2P=1
Noise :
45dB(1m-kpa)
Weight :
420g
Description

Blower Technical Parameters:

Model OWB7575-220VAC
Rated Voltage V 220
Rated Current A 1.95
Rated Power W 435
No-load Speed rpm 80000
Max.Pressure ( Q=0) kpa 50
Power at Max. Pressure W 250
Speed at Max.Pressure rpm 100000
Max.Flow (P=0) L/min 666
Power at Max.Flow W 425
Speed at Max.Flow rpm 87128
Min.Flow L/min 10
Brushless DC Motor Parameters
Resistance Ω 2.05
Inductance mH 7.77
Rotor Inertia g-cm² 14
Hall Angle 120°
Pairs of Magnets 2P=1A
Insulation Resistance 180℃-F
Temperature Rise ℃ 40
IP Rating IP50
Impeller Materials AL
Housing Materials AL
Oxygen Compatible % 21
Biologically Compatible Yes
The Blower Performance
NTC N/A
Weight g 420
Service Life hours 15000
Noise dB(A) 45
Decopression kpa ＞80
Direction CCW
Using Temperature range ℃ -10~45
Using Ambient Humidity Range %RH 10~75
Storage Temperature ℃ -10~40

Notice:

1. The pipeline diameter of the air inlet or outlet load shall not be less than 6mm

2. Do not block the air inlet or outlet completely for more than minutes

Brushless DC Air Blower Features:


1: High speed, specialized high-speed ball bearing(NMB) offering long service life and lower noise

2: High pressure and airflow output by compact size design

3: High efficiency, much more efficient than brush motor blower

4: High reliability, specialized controller make the working more reliable

5: High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling

Dimensions:

OWB7575 Aluminum Alloy High Pressure 50 kpa 80000 rpm Small Brushless Centrifugal Blower Fan For Fuel Cell

Performance Curve:

OWB7575 Aluminum Alloy High Pressure 50 kpa 80000 rpm Small Brushless Centrifugal Blower Fan For Fuel Cell

Application:

OWB7575 Aluminum Alloy High Pressure 50 kpa 80000 rpm Small Brushless Centrifugal Blower Fan For Fuel Cell

OWB7575 can be used in many applications, such as fuel cell systems, rapid inflation and pumping scenarios, environmental sampling devices, and more.

DC blower; Cpap blower; Low noise blower; Clinical ventilator; Home ventilator; Breathing machine;Fuel cell;Express air cushion machine;Beauty air cooler;Sampling instrument;Expectorant vest.
