JUNQI 25kPa Brushless DC Blower Fan OWB9275 For Fuel Cell / Environmental Sampling
JUNQI 25kPa Brushless DC Blower Fan OWB9275 For Fuel Cell / Environmental Sampling
JUNQI 25kPa Brushless DC Blower Fan OWB9275 For Fuel Cell / Environmental Sampling
JUNQI 25kPa Brushless DC Blower Fan OWB9275 For Fuel Cell / Environmental Sampling
JUNQI 25kPa Brushless DC Blower Fan OWB9275 For Fuel Cell / Environmental Sampling
JUNQI 25kPa Brushless DC Blower Fan OWB9275 For Fuel Cell / Environmental Sampling
JUNQI 25kPa Brushless DC Blower Fan OWB9275 For Fuel Cell / Environmental Sampling
JUNQI 25kPa Brushless DC Blower Fan OWB9275 For Fuel Cell / Environmental Sampling
Specifications
Brand Name :
JEUNKEI
Model Number :
OWB9275
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
5pcs ( sample available)
Price :
USD65-USD78/PC
Payment Terms :
T/T, , Western Union, Paypal
Supply Ability :
1000pcs per month
Delivery Time :
depend on the order quantity /Negotiable
Packaging Details :
Suite for export
Nambe :
Micro Brushless Blower Fan
Model No. :
OWB9275 Series
Power Source :
DC Power Supply or Battery
Voltage :
24V/48V/220V
Power :
528W/510W/418W
Size :
96*93*80mm
Air Volume :
1500/1350/1337L/min
Wind Speed :
52000/51000/50800rpm
Warranty :
12 Months
Pole Pairs of Magnets :
2P=1
Noise :
45dB (1m-1kpa)
Description

OWB9275 is one of the high-air volume blowers of JUNQI Blower. The air volume at all 3 rated voltages is more than 1300l/min. It can be quickly started and stopped, which greatly increases the efficiency of use.

Blower Parameter:

Model OWM9275-24V OWB9275-48V OWB9275-220VAC
Max.Flow (L/min) 1500 1350 1337
Max.Pressure ( Kpa) 25 23 21
Current (A) 22 11 1.9
Speed (rpm) 52000 51000 50800
Voltage Range (V) 7.8~30 36~60 200~240
Power (W) 528 510 418
Resistance (mΩ) 27 78.5 2800
Inductance (uH) 82 267 13
Rotor inertia (g.cm²) 6.17 6.17 6.17
Noise (dB (1m-1kpa)) 45 45 45
MTBF (hour) 22000 22000 2000
Weight (g) 570 570 570
Hall Angle / / /
Pole pair 2P=1 2P=1 2P=1
Connection △ △ Y
IP Class IP50 IP50 IP54

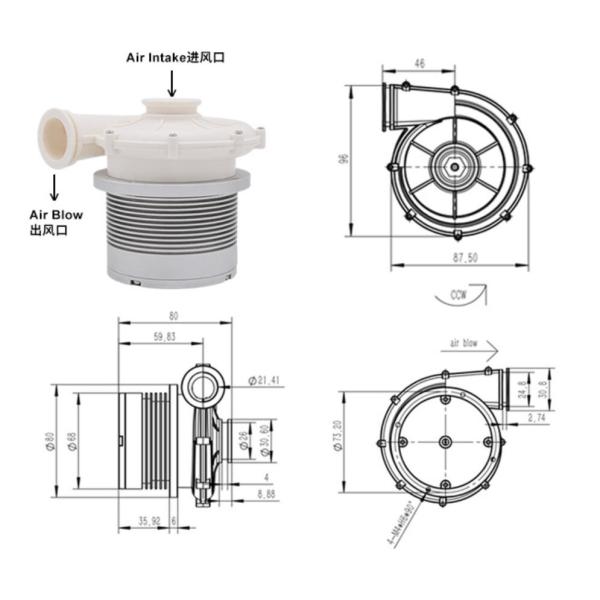

Dimension:

JUNQI 25kPa Brushless DC Blower Fan OWB9275 For Fuel Cell / Environmental Sampling

Performance Curve:

24V P-Q Curve

JUNQI 25kPa Brushless DC Blower Fan OWB9275 For Fuel Cell / Environmental Sampling

24V Air volume/Speed/Power demand

JUNQI 25kPa Brushless DC Blower Fan OWB9275 For Fuel Cell / Environmental Sampling

Application:

JUNQI 25kPa Brushless DC Blower Fan OWB9275 For Fuel Cell / Environmental Sampling

DC blower; Cpap blower; Low noise blower; Clinical ventilator; Home ventilator; Breathing machine;Fuel cell;Express air cushion machine;Beauty air cooler;Sampling instrument;Expectorant vest.
