Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation
Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation
Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation
Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation
Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation
Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation
Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation
Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation
Specifications
Brand Name :
junqi
Model Number :
JQ-BLP5009-24V
Certification :
IS9001, TS16949,CE
Place of Origin :
China
MOQ :
5 sets
Price :
Negotialbe
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000set/month
Delivery Time :
base on order,
Packaging Details :
suitable for export
Model :
JQ-BLP5009-12V
Material :
PPS
Voltage :
24VDC
Power :
17W
Rated Flow Rate :
25L/min,
Max Head :
3M
Application :
Automotive industry, Biofuel Industry, Temperature Control, Motorcycle
Medium :
Antifreeze
Rated Current :
0.7A
Outlet Size :
20mm
Structure :
Single-stage Pump
Description

24V DC Cooling CIruculation Pump, Turbo Booster Pump JQ-BLP5009-24V BLDC Water Pump For Car Engine Cooling Circulation​

Water Pump Quick Techincal Parameters:

Model JQ-BLP5009-24V
Rated Voltage (V) 24V
Voltage Range (V) 12-30V
Rated Current(A) 0.7A
Rated Head (m) 3m
Rated Flow (L/min) 25L/min
Rated Power (W) 17W
Max Noise (dB) ≤35dB
OD of inlet (mm) ∅20mm
OD of outlet(mm) ∅20mm
Protection Level IP67
Insulation Level H
Ambient temperature(℃) -40 to 125℃
Medium Temperature(℃) -40 to 125℃
Medium Antifreeze
Weight (kg) 0.5kg

Water Pump Features:
1.Centrifugal Pump
2.Magnetic force transmission(shield pump structure)
3.Low Noise ( less than 35dB)
4.High Efficiency DC Brushless Motor, Low power consumption,
high efficiency,Long Service life ( 15000 hours)
5.Single-stage structure
6.With wide range operating temperature
7.Dry-running protection (optional)
8.Locked-rotor protection(optional)

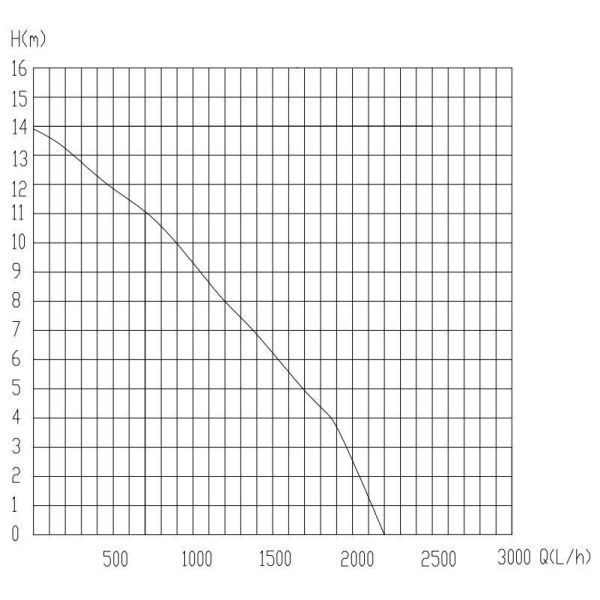

Water Pump Performance Curve and Overall Dimensions:

Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling CirculationTurbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation

Water Pumps applications:

1.Heating vertilation air conditioning
2. Auto turbocharger water cooling cycle
3. New energy vehicle cooling cycle
4. Motorcycle electronic water pump

Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation

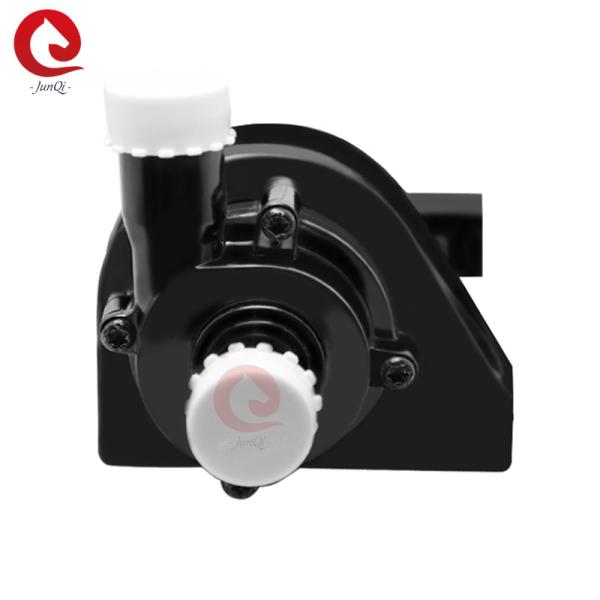

Water Pump View Pictures:

Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation

FAQ:

Q: How long is your delivery time?

A: Sample order is 7~10 days.

Bulk order is 30~35 days.

If there is pumps in stock, it is 2 days.

Q: How long is your warranty of pump?

A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.

Q: What’s the payment method?

A: Paypal,T/T,

Q: What certificates have your pumps passed?

A: All our products have passed CE, RoHS, Reach.

Parts of pumps met UL.

Q: What certificates have your company passed?

A: Our company has passed IATF16949, ISO9001, ISO14001&OHSAS18001

If you want to get more information about products, please feel free contact with us via ivanzhu@junqitrading.com
