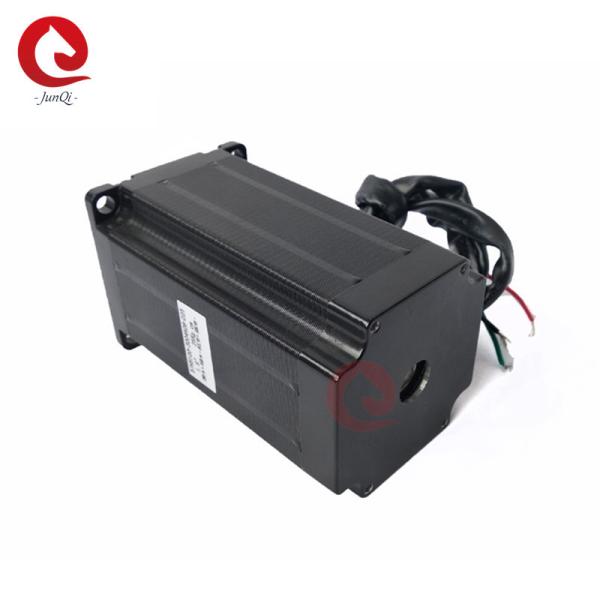

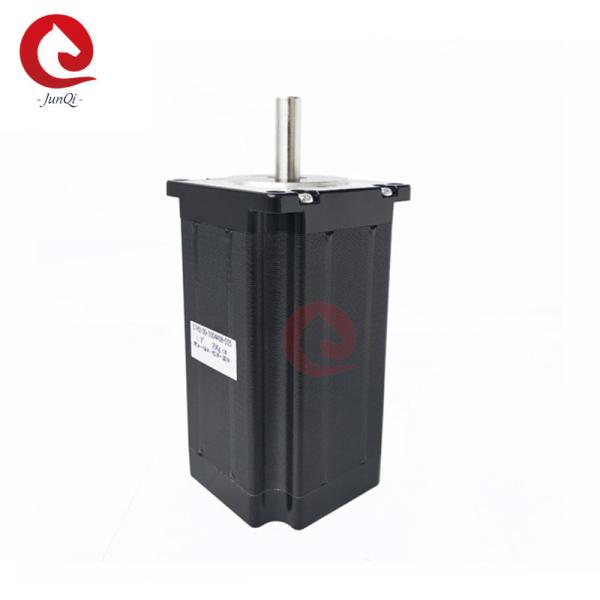

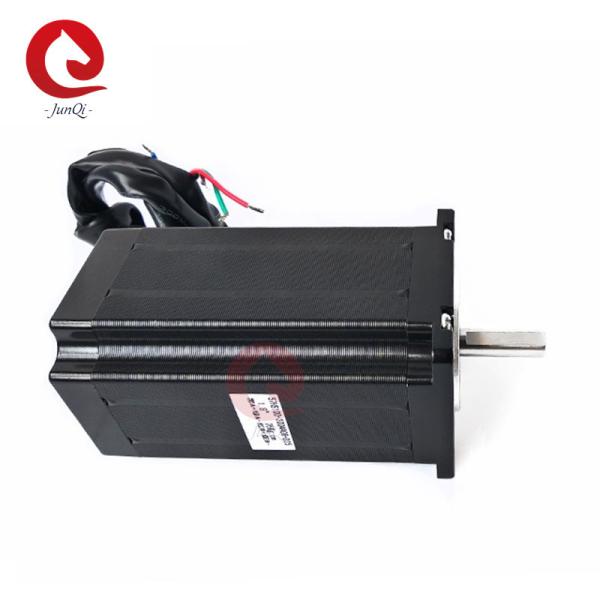

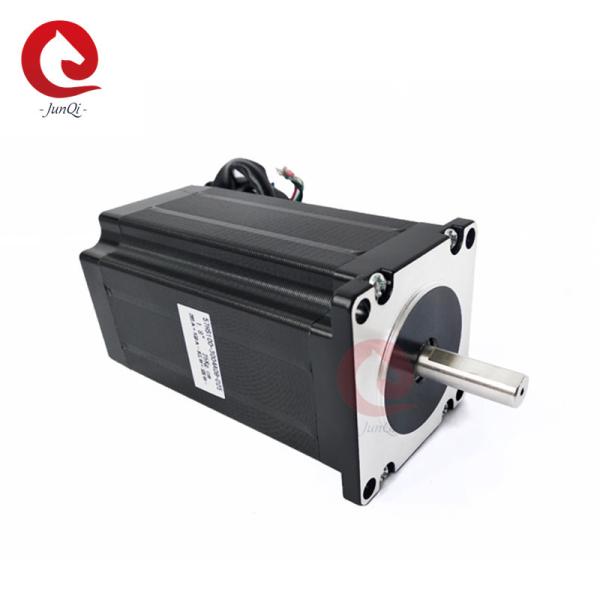

Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts
Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts
Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts
Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts
Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts
Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts
Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts
Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts
Specifications
Brand Name :
Junqi
Model Number :
JQ57HS100-3004
Certification :
CE, RoHs, REACH
Place of Origin :
Changzhou,China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000set/month
Delivery Time :
4weeks after get payment (base on order),
Packaging Details :
CTN
Type :
STEPPER MOTOR
Frame Size :
57mm
Rated Torque :
25kg.cm
Number of Phase :
2 phase
Body Length :
100mm
Usage :
Automotive, AGV
Shape :
Square
Step Angle :
1.8 degree
Rated Current :
3A
Weight :
1.4kg
Description

JQ57HS100-3004 Nema23 Electric Stepper Motor, 57mm 1.8 Degree 2 Phase 2.5N.m Torque Stepping motor For CNC Parts

Quick Details:

Item Specifications
Step Angle Accuracy ±5%
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃ Max
Ambient Temperature -20℃～+50℃
Dielectric Strength 100MΩMin.500VDC
Dielectric Strength 500VAC for one minute
Shaft Radial Play 0.02Max.(450g-load)
Shaft Axial Play 0.08Max.(450g-load)

Mechanical Size and Electric Connection:

Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC PartsNema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts

Electricl Specification:

Model No Step
Angle
(°)		 Rated
Voltage
(V)		 Rated
Current
(A)		 Phase
Resistance
(Ω)		 Phase
Inductance
(mH)		 Torque
(Kg.cm)		 Detent
Torque
(g.cm Max)		 Rotor
Inertia
(g.cm²)		 Motor
Length
(mm)		 Leads No. Motor
Weight
(Kg)
JQ57HS41-2004 1.8 2 2 1 1.2 3.2 210 120 41 4 0.45
JQ57HS41-1004 1.8 5.4 1 5.4 9.5 5.5 210 120 41 4 0.45
JQ57HS41-2004 1.8 2 2 1 2.2 5 210 120 41 4 0.45
JQ57HS51-1504 1.8 2.4 1.5 1.6 3.8 8.2 360 275 51 4 0.65
JQ57HS51-2004 1.8 2.4 2 1.2 3 9 360 275 51 4 0.65
JQ57HS51-2006 1.8 2 2 1 1.6 7 360 275 51 6 0.65
JQ57HS56-1504 1.8 5.7 1.5 3.8 12 13.5 400 300 56 4 0.7
JQ57HS56-3004 1.8 2.85 3 0.95 2.8 12 400 300 56 4 0.7
JQ57HS56-2006 1.8 3.6 2 1.8 2.8 9 400 300 56 6 0.7
JQ57HS64-3004 1.8 3.9 3 1.3 2.2 15 500 380 64 4 0.8
JQ57HS76-2004 1.8 8.6 2 4.3 16.2 24 680 480 76 4 1
JQ57HS76-3004 1.8 2.7 3 0.9 3.5 20 680 480 76 4 1
JQ57HS76-4004 1.8 2.4 4 0.6 2.2 20 680 480 76 4 1
JQ57HS82-3004 1.8 4.2 3 1.4 5 22 700 510 82 4 1.2
JQ57HS82-4004 1.8 3 4 0.75 3.5 20 700 510 82 4 1.2
JQ57HS100-3004 1.8 3 3 1 4.5 25 1000 680 100 4 1.4
JQ57HS112-3004 1.8 3.9 3 1.3 6.5 30 1200 800 112 4 1.7
JQ57HS112-3504 1.8 2.45 3.5 0.7 3 28 1200 800 112 4 1.7
Above only for representative products, products of special request can be made according to the customer request.

**Notes: Above is standard motor, we can be designed &manufactured with customized request!!


Motor details:

Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC PartsNema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts

We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts

Professional Factory:

Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts

Certificate Photos :

Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts

Packing:

Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts

Transportation:

Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts

Motor Application Fields:

Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC PartsNema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC PartsNema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts

FAQ:

Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit

Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q:Do You Make Customized Product?

A:Yes,We Accpet IT.

Q:About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details

Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.

Our motor products contain range:

Nema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC PartsNema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC PartsNema23 Electric Stepper Motor 57mm 1.8 Degree 2 Phase 2.5N.m Torque For CNC Parts
