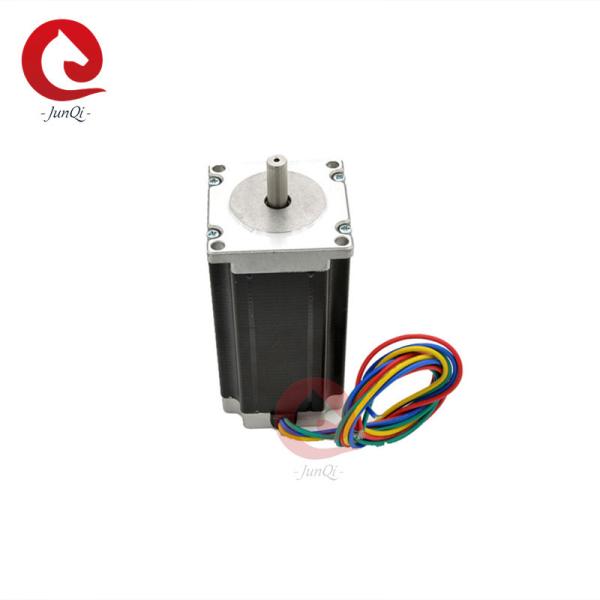

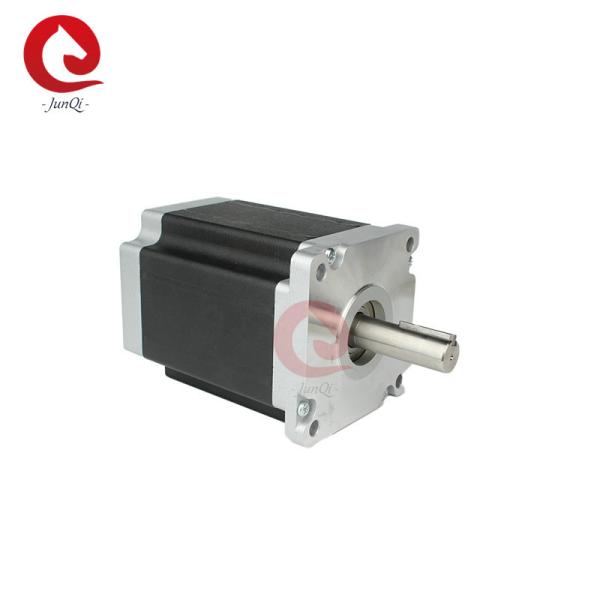

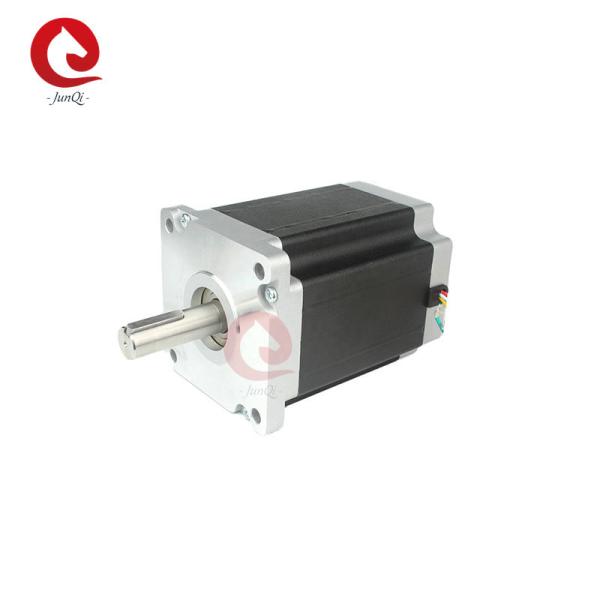

Automotive Electric 1.8 Degree 500VAC Hybrid Step Motor 82mm High Torque
Automotive Electric 1.8 Degree 500VAC Hybrid Step Motor 82mm High Torque
Automotive Electric 1.8 Degree 500VAC Hybrid Step Motor 82mm High Torque
Automotive Electric 1.8 Degree 500VAC Hybrid Step Motor 82mm High Torque
Automotive Electric 1.8 Degree 500VAC Hybrid Step Motor 82mm High Torque
Automotive Electric 1.8 Degree 500VAC Hybrid Step Motor 82mm High Torque
Automotive Electric 1.8 Degree 500VAC Hybrid Step Motor 82mm High Torque
Automotive Electric 1.8 Degree 500VAC Hybrid Step Motor 82mm High Torque
Automotive Electric 1.8 Degree 500VAC Hybrid Step Motor 82mm High Torque
Automotive Electric 1.8 Degree 500VAC Hybrid Step Motor 82mm High Torque
Automotive Electric 1.8 Degree 500VAC Hybrid Step Motor 82mm High Torque
Automotive Electric 1.8 Degree 500VAC Hybrid Step Motor 82mm High Torque
Specifications
Brand Name :
Junqi
Model Number :
JQ57HS82 series
Certification :
CE, RoHs, REACH
Place of Origin :
Changzhou,China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000set/month
Delivery Time :
4weeks after get payment (base on order),
Packaging Details :
CTN
Type :
STEPPER MOTOR
Frame Size :
57mm
Rated Torque :
20Kg.cm~22kg.cm
Number of Phase :
2 phase
Body Length :
82mm
Usage :
Automotive, AGV
Shape :
Square
Step Angle :
1.8 degree
Rated Current :
3~4A
Weight :
1.2kg
Description

JQ57HS82 Electric Stepper Motor 1.8 Degree Nema23 Hybrid Step Motor 82mm Body Length High Torque CNC Motor

Quick Details:

Item Specifications
Step Angle Accuracy ±5%
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃ Max
Ambient Temperature -20℃～+50℃
Dielectric Strength 100MΩMin.500VDC
Dielectric Strength 500VAC for one minute
Shaft Radial Play 0.02Max.(450g-load)
Shaft Axial Play 0.08Max.(450g-load)

Mechanical Size and Electric Connection:

Automotive Electric 1.8 Degree 500VAC Hybrid Step Motor 82mm High Torque

Electricl Specification:

Model No Step
Angle
(°)		 Rated
Voltage
(V)		 Rated
Current
(A)		 Phase
Resistance
(Ω)		 Phase
Inductance
(mH)		 Torque
(Kg.cm)		 Detent
Torque
(g.cm Max)		 Rotor
Inertia
(g.cm²)		 Motor
Length
(mm)		 Leads No. Motor
Weight
(Kg)
JQ57HS41-2004 1.8 2 2 1 1.2 3.2 210 120 41 4 0.45
JQ57HS41-1004 1.8 5.4 1 5.4 9.5 5.5 210 120 41 4 0.45
JQ57HS41-2004 1.8 2 2 1 2.2 5 210 120 41 4 0.45
JQ57HS51-1504 1.8 2.4 1.5 1.6 3.8 8.2 360 275 51 4 0.65
JQ57HS51-2004 1.8 2.4 2 1.2 3 9 360 275 51 4 0.65
JQ57HS51-2006 1.8 2 2 1 1.6 7 360 275 51 6 0.65
JQ57HS56-1504 1.8 5.7 1.5 3.8 12 13.5 400 300 56 4 0.7
JQ57HS56-3004 1.8 2.85 3 0.95 2.8 12 400 300 56 4 0.7
JQ57HS56-2006 1.8 3.6 2 1.8 2.8 9 400 300 56 6 0.7
JQ57HS64-3004 1.8 3.9 3 1.3 2.2 15 500 380 64 4 0.8
JQ57HS76-2004 1.8 8.6 2 4.3 16.2 24 680 480 76 4 1
JQ57HS76-3004 1.8 2.7 3 0.9 3.5 20 680 480 76 4 1
JQ57HS76-4004 1.8 2.4 4 0.6 2.2 20 680 480 76 4 1
JQ57HS82-3004 1.8 4.2 3 1.4 5 22 700 510 82 4 1.2
JQ57HS82-4004 1.8 3 4 0.75 3.5 20 700 510 82 4 1.2
JQ57HS100-3004 1.8 3 3 1 4.5 25 1000 680 100 4 1.4
JQ57HS112-3004 1.8 3.9 3 1.3 6.5 30 1200 800 112 4 1.7
JQ57HS112-3504 1.8 2.45 3.5 0.7 3 28 1200 800 112 4 1.7
Above only for representative products, products of special request can be made according to the customer request.

**Notes: Above is standard motor, we can be designed &manufactured with customized request!!
