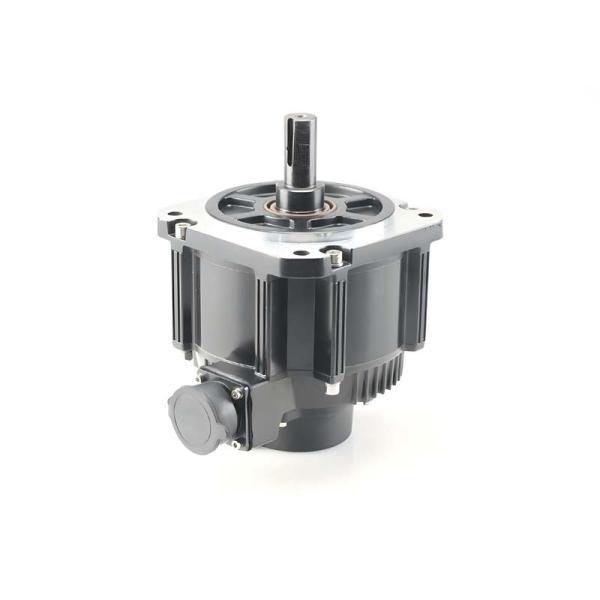

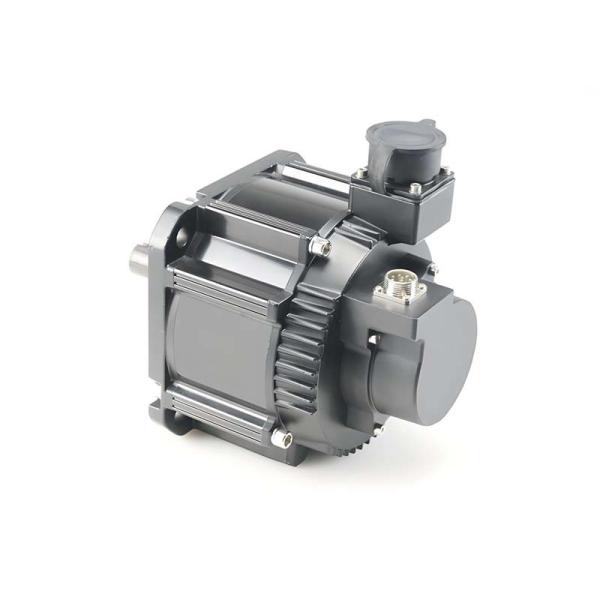

Flange 130mm Servo Motor high density Servomotor 2500W 3000W 3800W 24.2N.m 3000rpm

Product Tag: 130mm Servo Motor , 130mm Servomotor , 130mm AC Servo Motor , 1200W Servo Motor , 1300W Servo Motor , 1500W Servo Motor , 1800W Servo Motor , 2000W Servo Motor , 2500W Servo Motor , 3000W Servo Motor , 3800W Servo Motor

The Brushless Servo Motors from Panda Electronics feature the following characteristics:

• Special Slot Design: This motor exhibits an extremely low mutual inductance, approaching zero.
• Optimized Heat Dissipation: Enhanced thermal management allows for rapid heat dissipation and uniform temperature distribution.
• Structural Optimization: The design ensures robust performance, contributing to increased durability and reliability.
• Special Core Design: Low noise, low vibration, and minimal torque ripple result in smooth operation.
• High Slot Fill Factor: A larger wire diameter decreases resistance and generates 20% less heat due to a higher slot fill factor.
• Open-Ended Shaft Design: This feature facilitates the installation of various encoders, offering greater flexibility.
• Optimized Permanent Magnet Design: Advanced rare-earth permanent magnets with high intrinsic coercivity enhance demagnetization resistance.
• High-Resolution Encoder: A high-resolution encoder increases positioning precision by 64 times.
• Advanced Manufacturing Techniques: Manufactured in Japan, this motor promises high reliability, stability, and consistent performance.
• High-Performance Core: Designed for high magnetic load and minimal iron loss, this core is compact and lightweight, achieving over 20% size reduction.
• New Magnetic Field Analysis Technology: A ten-level optimized rotor design significantly boosts output and provides 3 to 4 times overload capacity.
• Supporting Customization: Our Brushless Servo Motors range from 40 mm to 180 mm in diameter, with customization readily available for diverse specifications.

Applications of Brushless Servo Motors:

Industrial Automation:

• Robotics (robot arms, pick and place)
• CNC machines
• Assembly lines

Aerospace:

• Flight control systems
• Positioning systems for aircraft

Automotive:

• Power steering systems
• Electric throttle control
• Automatic transmission systems

Consumer Electronics:

• Printers (particularly 3D printers)
• Cameras (autofocus and image stabilization)
• Drones (control of flight dynamics)

Medical Equipment:

• Surgical robots
• MRI machines
• Prosthetic devices

HVAC Systems:

• Control of dampers and valves for heating and air conditioning systems

Textile Industry:

• Sewing machines
• Weaving and knitting machines

Entertainment:

• Animatronics and robotics in films
• Motion control in stage shows

Telecommunications:

• Antenna position control
• Fiber optic alignment systems

Food and Beverage:

• Automated packaging machines
• Food processing equipment

Key Specifications for this Flange Ø130mm Brushless Servo Motor :

• Motor Flange: 131mm
• Rated Voltage: 48V DC to 220V or 48V to 380V or customized
• Rated Torque: 2.7N.m to 24.2N.m or Customized
• Rated Speed: 3000rpm or Customized
• Rated Power: 850W to 3800W or Customized
• Brake or without brake

Remark:

• We offer design and production services for customized servo motors (OEM & ODM).

To see the product catalogue on our Brushless Servo Motors Φ40-180 mm , please

Check Here and download.
