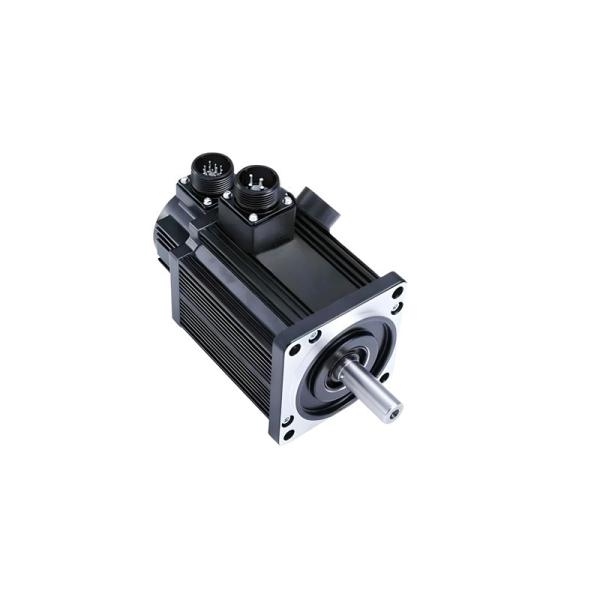

Flange 130mm encoder Servo Motor Cusomizable brushless Servomotor 2500W 3000W 3800W 24.2N.m 3000rpm

Product Tag: 130mm Servo Motor , 130mm Servomotor , 130mm AC Servo Motor , 1200W Servo Motor , 1300W Servo Motor , 1500W Servo Motor , 1800W Servo Motor , 2000W Servo Motor , 2500W Servo Motor , 3000W Servo Motor , 3800W Servo Motor

The Brushless Servo Motors from Panda Electronics feature the following characteristics:

• Innovative Slot Design: Experience the benefits of our motor with an incredibly low mutual inductance, nearly at zero!
• Enhanced Heat Management: Our motor excels in thermal management, ensuring quick heat dissipation and an even temperature throughout.
• Robust Structure: Built for performance, the motor's optimized structure enhances durability and reliability.
• Whisper-Quiet Operation: Enjoy smooth performance with low noise, low vibration, and minimal torque ripple.
• Efficient Slot Fill Factor: Thanks to a larger wire diameter, our motor generates 20% less heat and has lower resistance.
• Flexible Shaft Design: With an open-ended shaft, you can easily install various encoders for customized solutions.
• Advanced Magnet Technology: Our permanent magnets utilize rare-earth materials for superior demagnetization resistance.
• Precision Encoding: Equipped with a high-resolution encoder, our motor achieves 64 times the precision in positioning.
• Japanese Engineering Excellence: Manufactured in Japan, our motors guarantee outstanding reliability and consistent performance.
• Lightweight High-Performance Core: The core design minimizes iron loss and is compact, achieving a size reduction of over 20%.
• Next-Gen Rotor Technology: Featuring a ten-level rotor design, our motor significantly boosts output and handles overloads up to 3 to 4 times.
• Customizable Options: With diameters from 40 mm to 180 mm, our Brushless Servo Motors offer versatility and easy customization.

Applications of Brushless Servo Motors:

Industrial Automation:

• Robotics (robot arms, pick and place)
• CNC machines
• Assembly lines

Aerospace:

• Flight control systems
• Positioning systems for aircraft

Automotive:

• Power steering systems
• Electric throttle control
• Automatic transmission systems

Consumer Electronics:

• Printers (particularly 3D printers)
• Cameras (autofocus and image stabilization)
• Drones (control of flight dynamics)

Medical Equipment:

• Surgical robots
• MRI machines
• Prosthetic devices

HVAC Systems:

• Control of dampers and valves for heating and air conditioning systems

Textile Industry:

• Sewing machines
• Weaving and knitting machines

Entertainment:

• Animatronics and robotics in films
• Motion control in stage shows

Telecommunications:

• Antenna position control
• Fiber optic alignment systems

Food and Beverage:

• Automated packaging machines
• Food processing equipment

Key Specifications for this Flange Ø130mm Brushless Servo Motor :

• Motor Flange: 131mm
• Rated Voltage: 48V DC to 220V or 48V to 380V or customized
• Rated Torque: 2.7N.m to 24.2N.m or Customized
• Rated Speed: 3000rpm or Customized
• Rated Power: 850W to 3800W or Customized
• Brake or without brake

Remark:

• We offer design and production services for customized servo motors (OEM & ODM).

To see the product catalogue on our Brushless Servo Motors Φ40-180 mm , please

Check Here and download.
